Серия FTMg
16 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

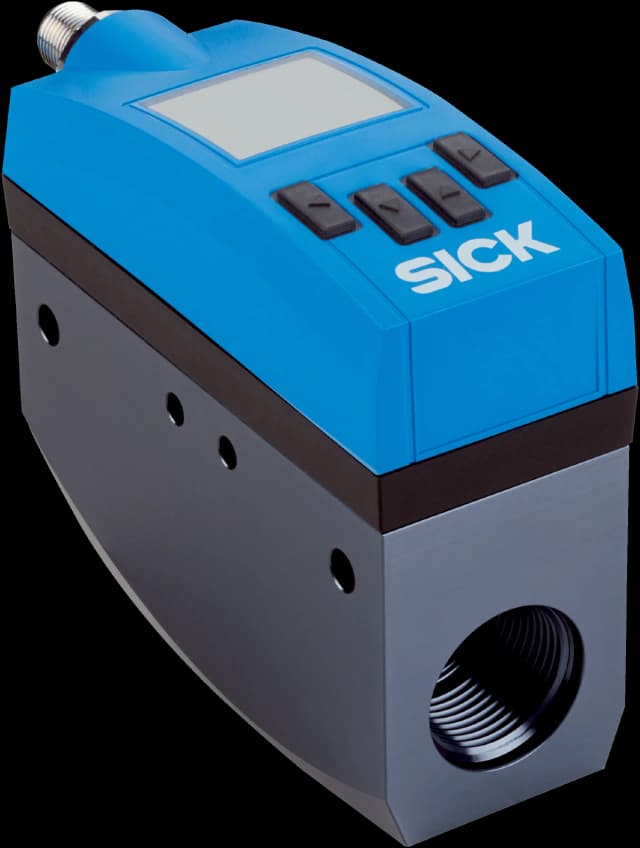

FTMG-ESD08AXX
Flow sensors | FTMg | FTMG-ESD08AXX | Nominal width measuring tube: DN 08 | Process connection: G ¼ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ESD15AXX
Flow sensors | FTMg | FTMG-ESD15AXX | Nominal width measuring tube: DN 15 | Process connection: G ½ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ESD20AXX
Flow sensors | FTMg | FTMG-ESD20AXX | Nominal width measuring tube: DN 20 | Process connection: G ¾ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ESD25AXX
Flow sensors | FTMg | FTMG-ESD25AXX | Nominal width measuring tube: DN 25 | Process connection: G 1 (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no

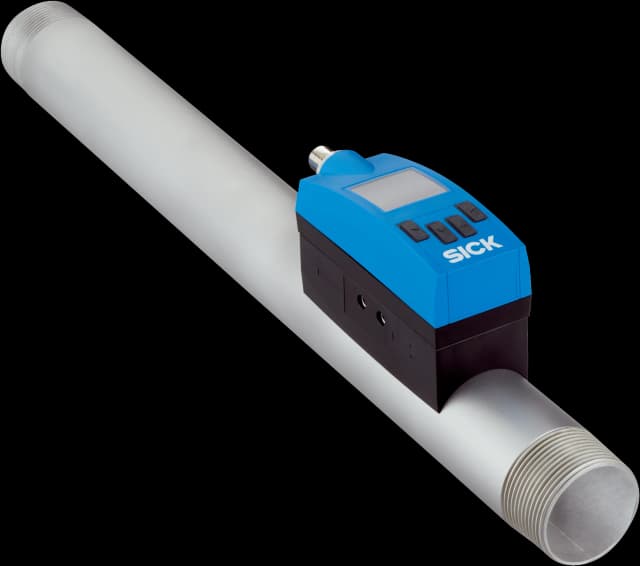

FTMG-ESN40SXX
Flow sensors | FTMg | FTMG-ESN40SXX | Nominal width measuring tube: DN 40 | Process connection: 1 1/2” NPT male thread | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no

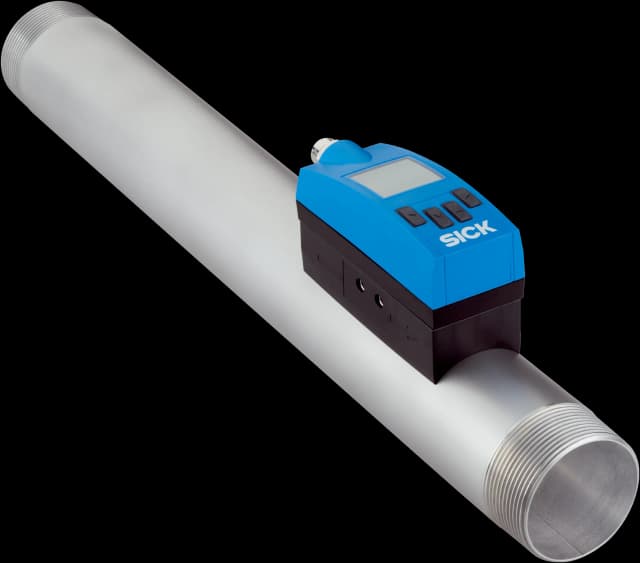

FTMG-ESN50SXX
Flow sensors | FTMg | FTMG-ESN50SXX | Nominal width measuring tube: DN 50 | Process connection: 2” NPT male thread | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ESR40SXX
Flow sensors | FTMg | FTMG-ESR40SXX | Nominal width measuring tube: DN 40 | Process connection: R 1 ½ male thread | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ESR50SXX
Flow sensors | FTMg | FTMG-ESR50SXX | Nominal width measuring tube: DN 50 | Process connection: R 2 male thread | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no
FTMG-ISD08AXX
Flow sensors | FTMg | FTMG-ISD08AXX | Nominal width measuring tube: DN 08 | Process connection: G ¼ (according to DIN ISO 228-1) | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.43
FTMG-ISD15AXX
Flow sensors | FTMg | FTMG-ISD15AXX | Nominal width measuring tube: DN 15 | Process connection: G ½ (according to DIN ISO 228-1) | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.43
FTMG-ISD20AXX
Flow sensors | FTMg | FTMG-ISD20AXX | Nominal width measuring tube: DN 20 | Process connection: G ¾ (according to DIN ISO 228-1) | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.43
FTMG-ISD25AXX
Flow sensors | FTMg | FTMG-ISD25AXX | Nominal width measuring tube: DN 25 | Process connection: G 1 (according to DIN ISO 228-1) | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.43
FTMG-ISN40SXX
Flow sensors | FTMg | FTMG-ISN40SXX | Nominal width measuring tube: DN 40 | Process connection: 1 1/2” NPT male thread | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Commu
FTMG-ISN50SXX
Flow sensors | FTMg | FTMG-ISN50SXX | Nominal width measuring tube: DN 50 | Process connection: 2” NPT male thread | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communica
FTMG-ISR40SXX
Flow sensors | FTMg | FTMG-ISR40SXX | Nominal width measuring tube: DN 40 | Process connection: R 1 ½ male thread | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communicat
FTMG-ISR50SXX
Flow sensors | FTMg | FTMG-ISR50SXX | Nominal width measuring tube: DN 50 | Process connection: R 2 male thread | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communicatio
