Серия MOLOScode
12 варианта от Mollet. Изберете модела, който отговаря на приложението ви, или попитайте нас.

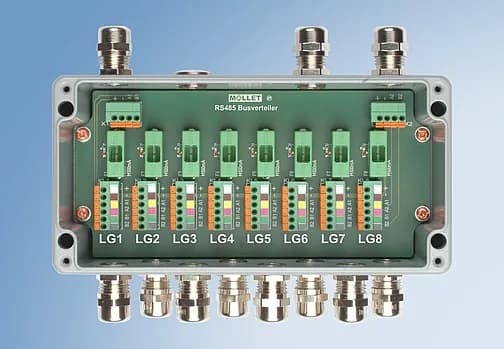

MOLOScode BUS distributor
Housing aluminum, RAL 7001; Supply voltage 7 V ... 9 V DC; 1x 4-wire input (supply and RS485); 1x 2-wire outlet (RS485); Connection of up to 8 KC-LG16M reading devices; Ambient temperature -20 °C ... +60 °C; Protection class IP66 according to DIN EN 60529
MOLOScode Camlock couplings
MOLOScode with RFID technology enables electronic hose identification on the Camlock couplings. This means that a correct hose connection can always be guaranteed via the process control system.
MOLOScode Dairy pipe fittings
Threaded socket with built-in reading device; Conical nozzle with built-in transponder; Material stainless steel 1.4571 / 316Ti
MOLOScode Dry couplings
Couplings from various manufacturers can be equipped with MOLOScode RFID components; Dry couplings from ARTA - ASK, MannTek, RSSeliger, Stäubli, TODO-Matic or Walther
MOLOScode Flange
Flange with built-in reading device; Counter flange with built-in transponder; Material e.g. stainless steel 1.4571 / 316Ti
MOLOScode OneSide hose coupling station - hanging
All pipes connected with hoses; Hoses fix connected to the pipe ends from above on one side; Opposite end of the hose equipped with couplings; Pipe ends with corresponding counterparts of the coupling; Only loose ends of the hoses equipped with transponder; Reading devices installed at the pipe end
MOLOScode OneSide hose coupling station - rising
All pipes connected with hoses; Hoses fix connected to the pipe ends from below on one side; Opposite end of the hose equipped with couplings; Pipe ends with corresponding counterparts of the coupling; Only loose ends of the hoses equipped with transponder; Reading devices installed at the pipe end
MOLOScode Power supplies
Housing aluminum, RAL 7001; Input voltage 12 V ... 24 V DC; Output voltage 4 x 8 V DC; Ambient temperature -20 °C ... +60 °C; Protection class IP66 according to DIN EN 60529
MOLOScode Protocol converter
Converts RS485 to the following protocols: PROFIBUS-DP PROFINET-PN EtherCAT EtherNet/IP Modbus-RTU; PROFIBUS-DP; PROFINET-PN; EtherCAT; EtherNet/IP; Modbus-RTU; Supply voltage 12-30 V DC; Ambient temperature -25 °C ... +70 °C; DIN-rail mounting (EN 50022 standard); Weight 150 g; WxHxD 27x144x98 mm
MOLOScode RFID components
MOLOScode RFID components turn Storz, Camlock or dry couplings into intelligent coupling systems. These enable every hose connection to be monitored by the process control system.
MOLOScode Storz couplings
MOLOScode with RFID technology implements electronic hose recognition on the Storz coupling. This eliminates the risk of an incorrect hose connection with the help of the process control system.
MOLOScode TwoSide hose coupling station
All pipe ends with coupled hose; Hoses equipped with couplings on both sides; Pipe ends with corresponding counterparts of the coupling; Hoses with identical code numbers on both sides; Code number is the same like hose number; Hose inspection can be accomplished without installation work
