Влакнооптични сензори

Fiber Optic Sensors

478 продукта · стр. 13/20

ПодредбаПо име (А-Я)По име (Я-А)По производителФилтри

5336564

LL3-TR095000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TR095000 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 5,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Zinc with nickel coating | Included with delivery: Mounting, 2 x M4 hexagon nut, 2 x washer, FC fiber cutter (5304141)

5325920

LL3-TR10

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TR10 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)

5325906

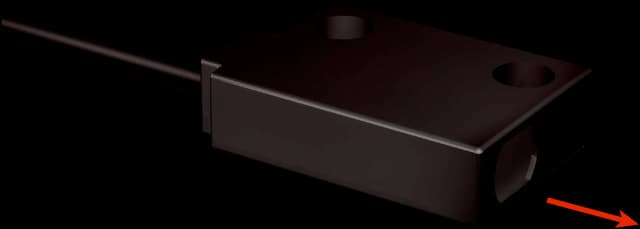

LL3-TR11

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TR11 | Functional principle: Through-beam system | Fiber-optic head design: Flat type | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 4 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)

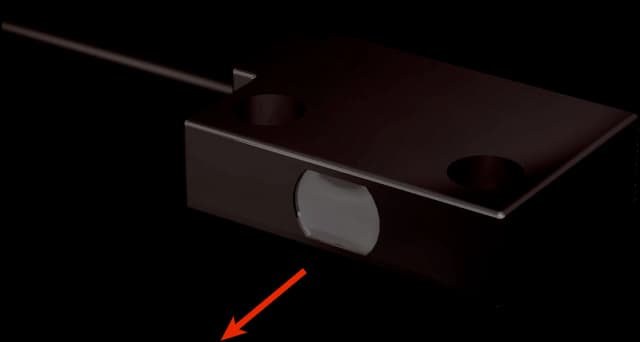

5325907

LL3-TR12

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TR12 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 4 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)

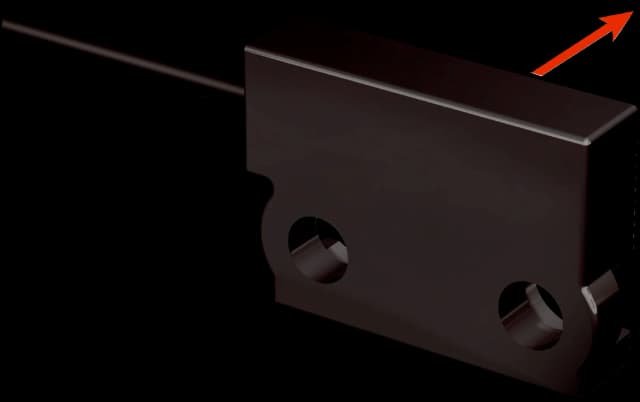

5325909

LL3-TR13

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TR13 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 4 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)

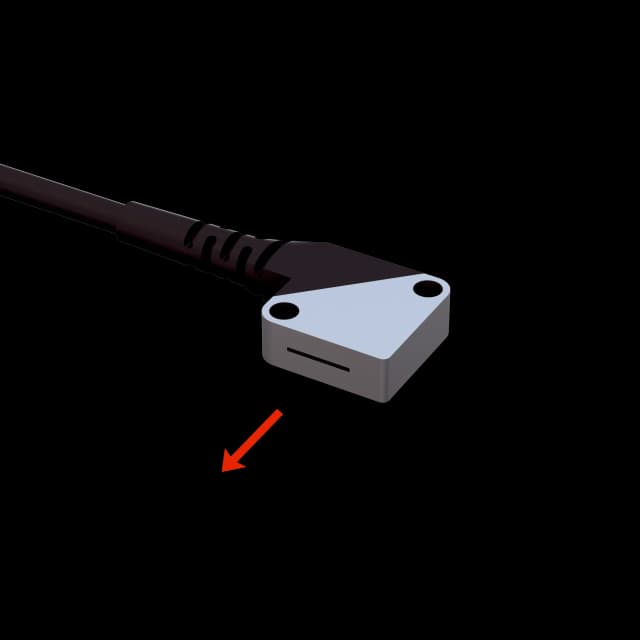

5334043

LL3-TS05

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS05 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 2,000 mm | Fiber-optic head array width: 4 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel

5308049

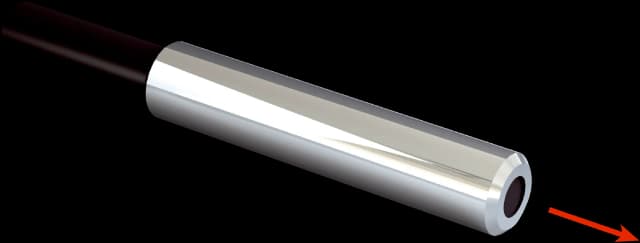

LL3-TS07

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS07 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)

5308061

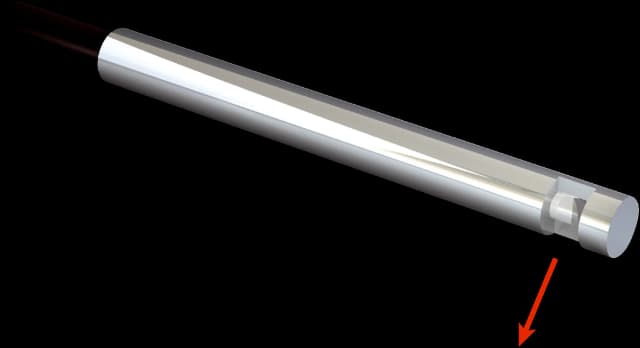

LL3-TS08

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS08 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve, 90° deflection | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)

1056990

LL3-TS09

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS09 | Functional principle: Through-beam system | Fiber-optic head array width: 5 mm | Fiber material: Plastic

5308063

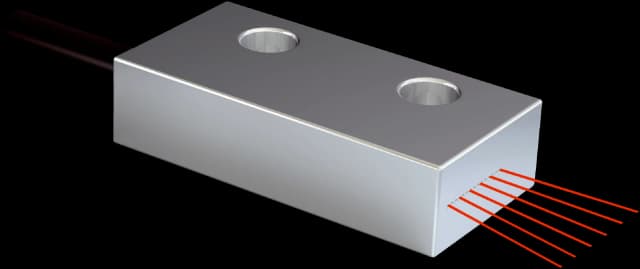

LL3-TS10

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS10 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 2,000 mm | Fiber-optic head array width: 5 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)

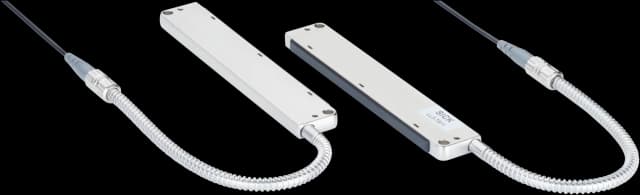

5338673

LL3-TS11

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS11 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 2,000 mm | Fiber-optic head array width: 100 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)

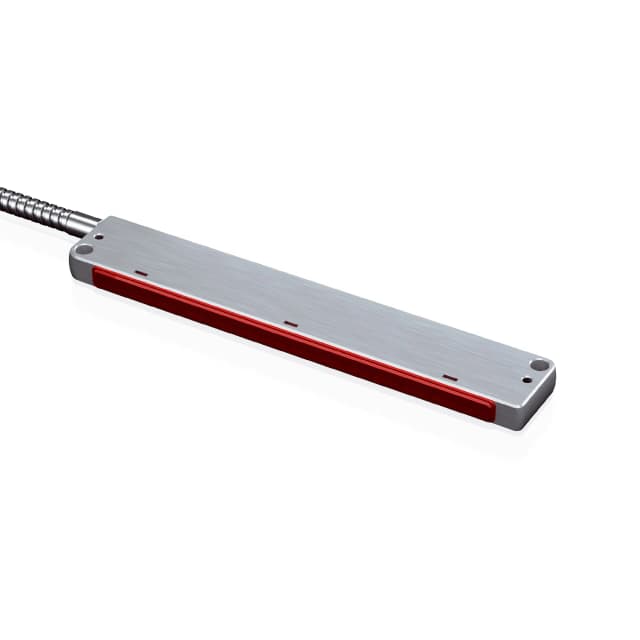

5341038

LL3-TS115000

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS115000 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 5,000 mm | Fiber-optic head array width: 100 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)

5308062

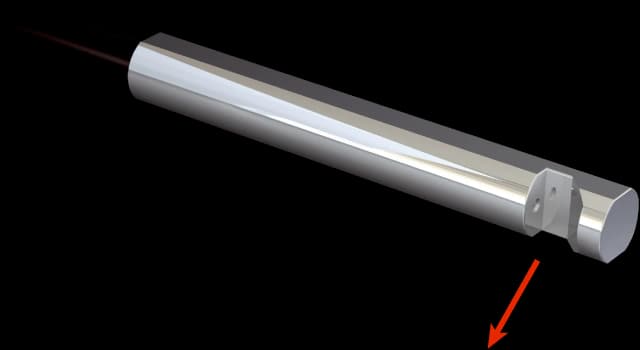

LL3-TS12

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS12 | Functional principle: Through-beam system | Fiber-optic head design: 90° deflection | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x terminal, FC fiber cutter (5304141), protective cladding for fiber head

5313039

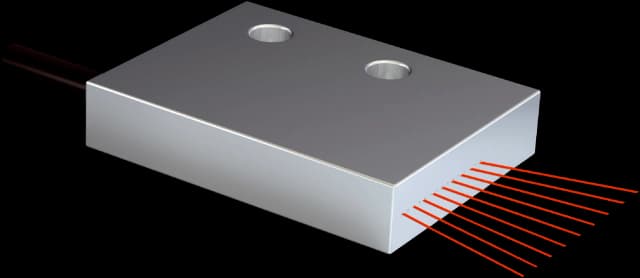

LL3-TS14

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS14 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, Array | Fiber length: 2,000 mm | Fiber-optic head array width: 11 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)

1069692

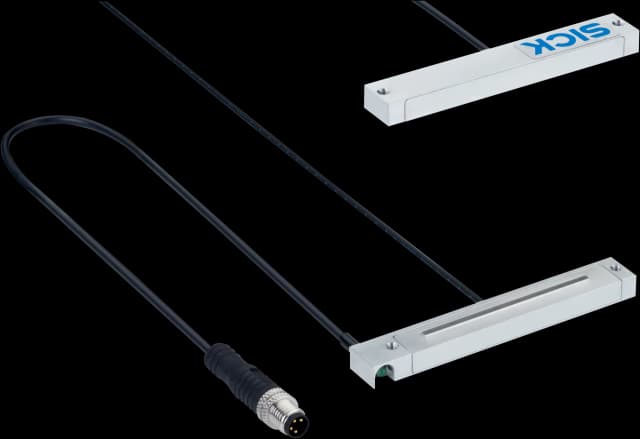

LL3-TS15S01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS15S01 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 1,410 mm | Fiber-optic head array width: 50 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Aluminum | Included with delivery: FC fiber cutter (5304141)

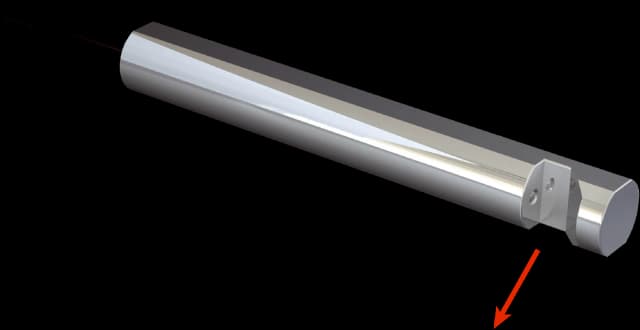

5325944

LL3-TS22

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS22 | Functional principle: Through-beam system | Fiber-optic head design: 90° deflection, Smooth sleeve | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head

5325968

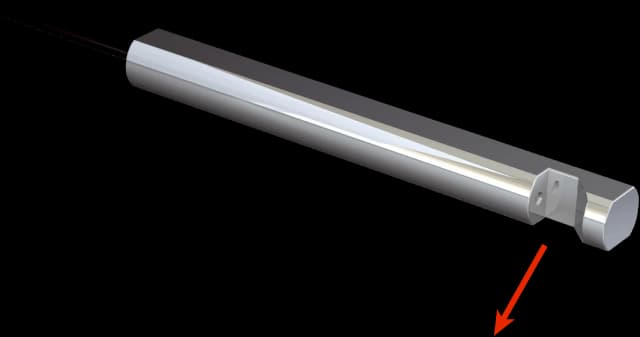

LL3-TS22M

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS22M | Functional principle: Through-beam system | Fiber-optic head design: 90° deflection, Smooth sleeve | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head

5323971

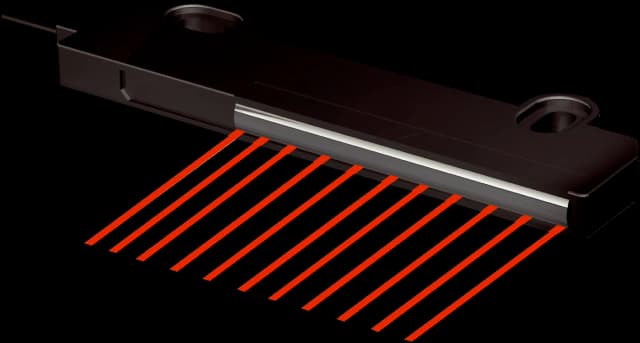

LL3-TS40

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS40 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 2,000 mm | Fiber-optic head array width: 40 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 4 x M3 Phillips-head screw, FC fiber cutter (5304141), protective cladding for fiber head

5328527

LL3-TS40-5

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TS40-5 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 5,000 mm | Fiber-optic head array width: 40 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 4 x M4 Phillips-head screw, FC fiber cutter (5304141), protective cladding for fiber head

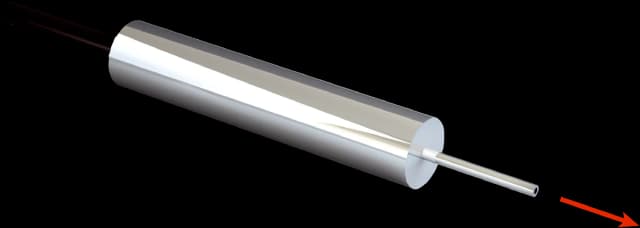

5308057

LL3-TT01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TT01 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)

5308058

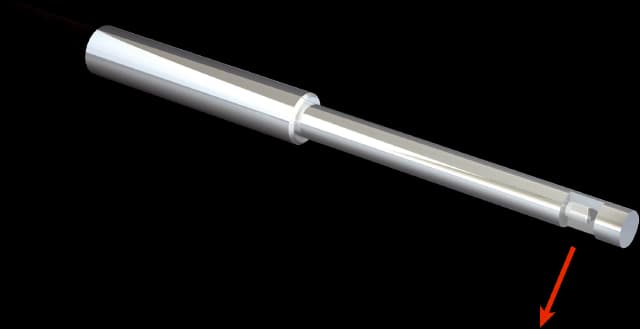

LL3-TV01

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TV01 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)

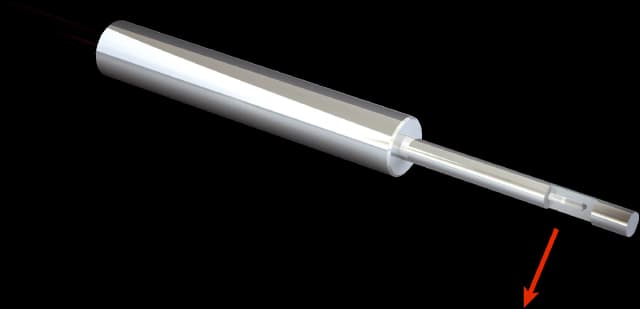

5308059

LL3-TV02

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TV02 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection | Fiber length: 2,000 mm | Smooth sleeve diameter: 2.5 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)

5308060

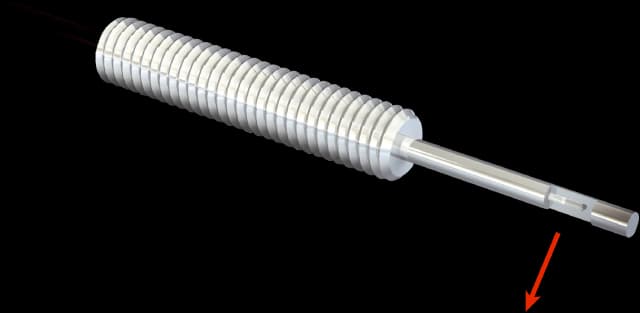

LL3-TV04

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TV04 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, Long end sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)

5322546

LL3-TV05

SICK

Fiber-optic sensors | Fiber-optic cables | LL3-TV05 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 2 x M4 hexagon nut, FC fiber cutter (5304141)
