Рефлектори и оптика
Reflectors & Optics
1146 продукта · стр. 6/48
ICL300-F202S01
Reflectors and optics | Illuminations | ICL300-F202S01 | Description: Ring lighting, bright field spot, infrared lighting color, lighting distance 0.2 m ... 2 m, temperature 0 °C ... +40 °C | LED class: Risk group 0 | Ambient operating temperature: 0 °C ... +40 °C
ICL300-F202S01-Set01-(infrared)
Reflectors and optics | Illuminations | ICL300-F202S01-Set01-(infrared) | Description: Ring lighting set, bright field lighting for ICR845-2L0020S01, infrared lighting color, lighting distance 0.2 m ... 2 m, incl. mounting bracket, screws and connection cable (2 m) | LED class: Risk group 1 (low risk, IEC62471 : 2006) | Ambient operating temperature: 0 °C ... +40 °C
ICL300-F222
Reflectors and optics | Illuminations | ICL300-F222 | Description: Ring lighting, bright field spot, red lighting color, lighting distance 0.2 m ... 2 m, temperature 0 °C ... +40 °C | LED class: Risk group 1 (low risk, IEC62471 : 2006) | Ambient operating temperature: 0 °C ... +40 °C
ICL300-F222-Set01-(red)
Reflectors and optics | Illuminations | ICL300-F222-Set01-(red) | Description: Ring lighting, bright field lighting for ICR84x-2L, red lighting color, lighting distance 0.2 m ... 2 m, incl. mounting bracket, screws and connection cable (2 m) | LED class: Risk group 1 (low risk, IEC62471 : 2006) | Ambient operating temperature: 0 °C ... +40 °C
Infrared pass filter (NIR)
Reflectors and optics | Optical filters | Infrared pass filter (NIR) | Description: Infrared pass filter (NIR) to reduce the sensitivity to ambient light (e.g. daylight) when using infrared illumination. Compatible with C-mount thread.
Inspector Flex blue color filter
Reflectors and optics | Optical filters | Inspector Flex blue color filter | Description: Color filter blue (468 nm ± 62 nm) for variants with exchangeable lens and front window, PMMA

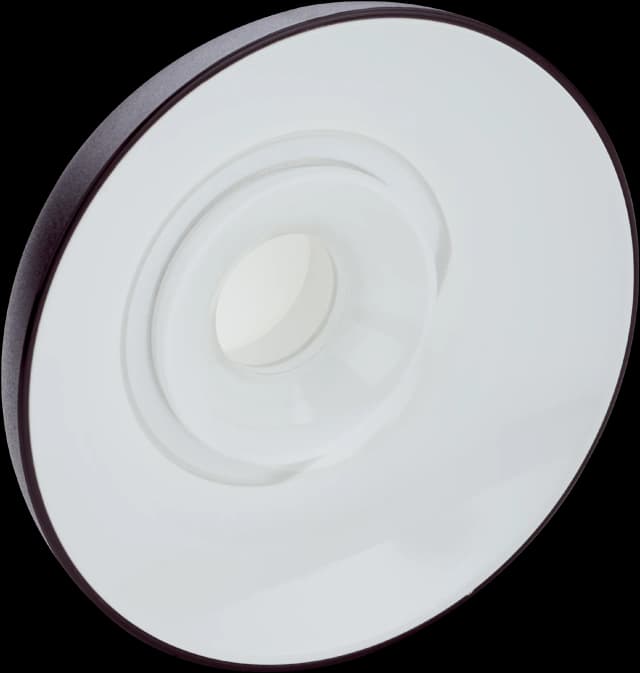

Inspector Flex Dome
Reflectors and optics | Lenses | Inspector Flex Dome | Description: Replaces the front screen and generates even and uniform illumination, for glossy surfaces

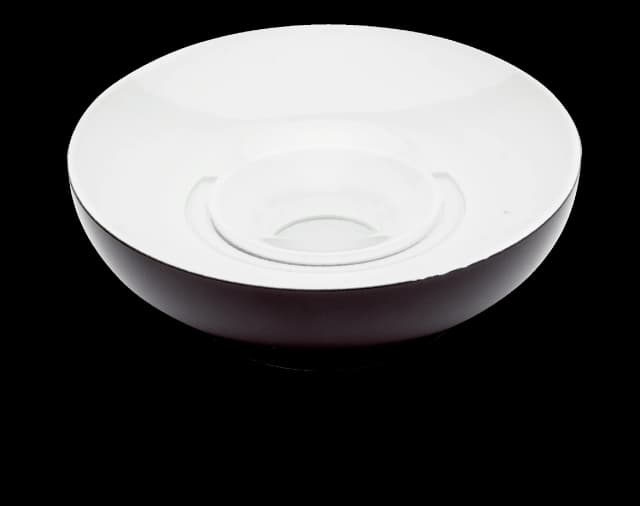

Inspector Flex Dome
Reflectors and optics | Lenses | Inspector Flex Dome | Description: Replaces the front screen and generates even and uniform illumination, for glossy surfaces. Used when lens focal length > 10 mm.
Inspector Flex green color filter
Reflectors and optics | Optical filters | Inspector Flex green color filter | Description: Color filter green (544 nm ± 53 nm) for variants with exchangeable lens and front window, PMMA
Inspector Flex red color filter
Reflectors and optics | Optical filters | Inspector Flex red color filter | Description: Color filter red for variants with exchangeable lens and front window, PMMA
Inspector Flex visible block filter
Reflectors and optics | Optical filters | Inspector Flex visible block filter | Description: Visible block filter for variants with exchangeable lens and front window, PMMA
Inspector Flex visible block filter
Reflectors and optics | Optical filters | Inspector Flex visible block filter | Description: Visible block filter for variants with exchangeable lens and front window, glass
Laser module, blue
Reflectors and optics | Illuminations | Laser module, blue | Description: Laser module, blue, M12 male connector, 4-pin, focusable | Light source: Laser line with uniform output distribution (thin line) | Connection types: Pin 1: +VDC, Pin 2: Digital modulation (5 ... 24 V DC), Pin 3: GND | Ambient operating temperature: 0 °C ... +50 °C
Laser module, red
Reflectors and optics | Illuminations | Laser module, red | Description: Laser module, red, M12 male connector, 4-pin, focusable | Light source: Laser line with uniform output distribution (standard option) | Connection types: Pin 1: +VDC, Pin 2: Digital modulation (5 ... 24 V DC), Pin 3: GND | Ambient operating temperature: 0 °C ... +50 °C
Lector mirror module 800 mm 2 camera
Reflectors and optics | Mirror | Lector mirror module 800 mm 2 camera | Description: Lector mirror module 800 mm 2 camera | Mirror length: 800 mm
Lector63x/InspectorP63x polarizing filter
Reflectors and optics | Optical filters | Lector63x/InspectorP63x polarizing filter | Description: Polarizing filter for reducing disruptive light reflections
Lector64x/65x / InspectorP64x/65x polarizing filter
Reflectors and optics | Optical filters | Lector64x/65x / InspectorP64x/65x polarizing filter | Description: Polarizing filter for reducing disruptive light reflections
LED illumination spare parts set
Reflectors and optics | Illuminations | LED illumination spare parts set | Description: Accessories for PLR3200-01, PLR3200-02

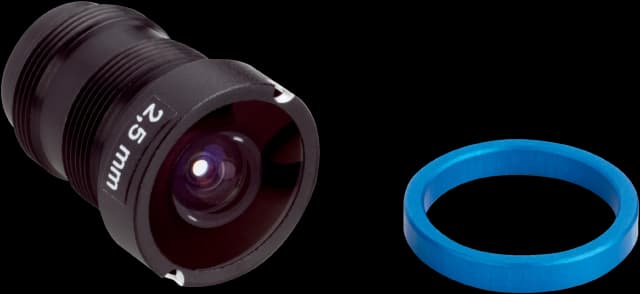

Lens
Reflectors and optics | Lenses | Lens | Description: Exchangeable lens, focal length 2.5 mm
Lens
Reflectors and optics | Lenses | Lens | Description: C-mount lens with 1" optic for Ranger cameras, 25 mm focal length, F 1.4

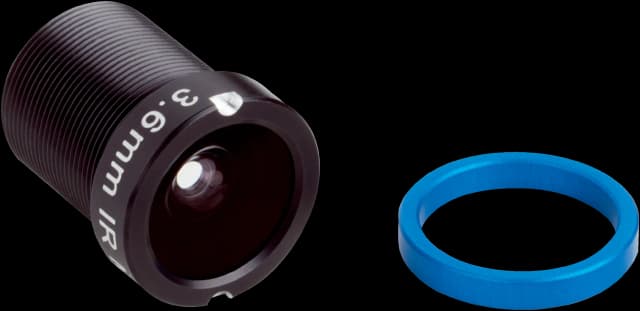

Lens
Reflectors and optics | Lenses | Lens | Description: Exchangeable lens, focal length 3.6 mm

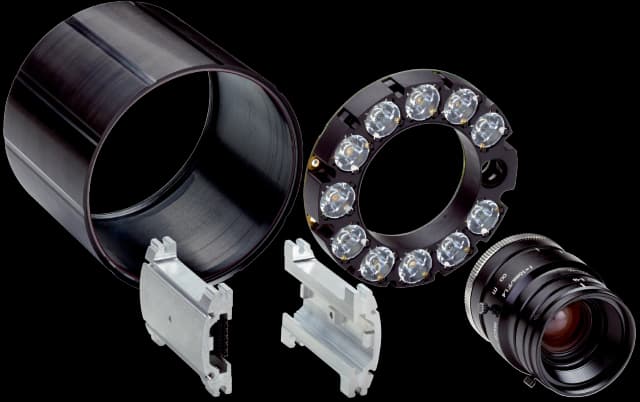

Lens kit 01
Reflectors and optics | Lenses | Lens kit 01 | Description: Optics kit 01 incl. lens with focal distance 12,5 mm, white illumination, spacer and optics protective hood

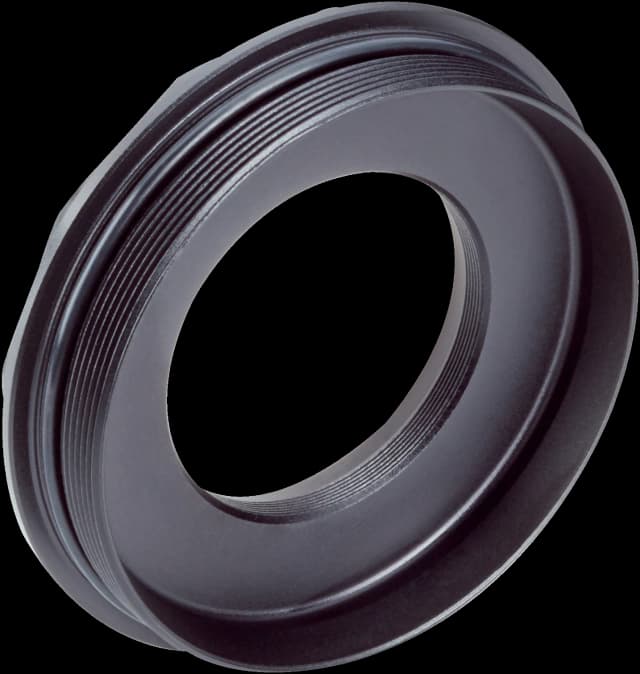

Lens tube flange
Reflectors and optics | Lenses | Lens tube flange | Description: Tube flange, Ø 70 mm IP65/67 with O-ring, for use in combination with lens barrel 4109798, 4109799 and 4109800
Lens unit
Reflectors and optics | Lenses | Lens unit | Description: C-mount lens with 1" optic for Ranger cameras, 12.5 mm focal length, F 1.8
