Монтажни системи
Mounting Systems
1707 продукта · стр. 6/72

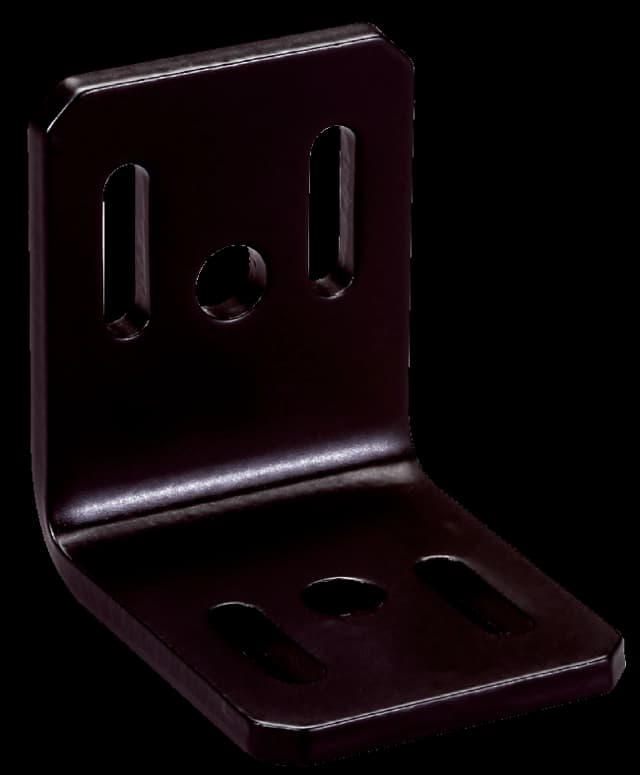

BEF-3WNGBAST4
Mounting systems | Brackets | BEF-3WNGBAST4 | Description: Mounting kit 1, mounting bracket, rigid, L-shaped, including fixing screws and washers | Packing unit: 4 pieces | Suitable for: All protective field heights

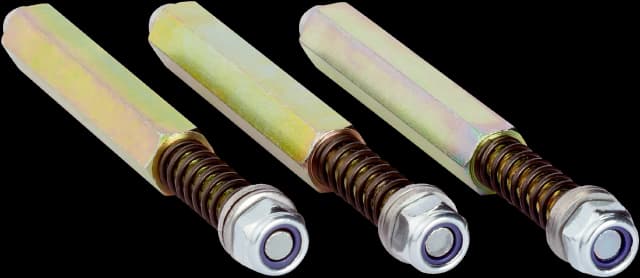

BEF-4AAAAHST3
Mounting systems | Brackets | BEF-4AAAAHST3 | Description: Spring mounting for PSK1 deflector mirror

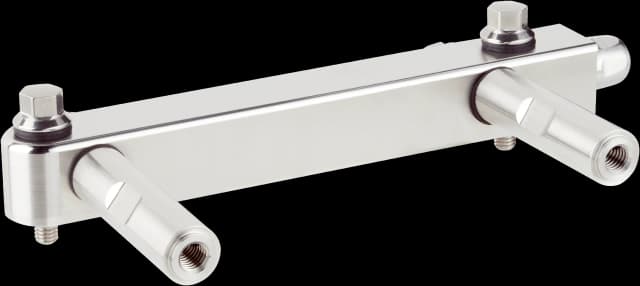

BEF-4SHAHMES1
Mounting systems | Brackets | BEF-4SHAHMES1 | Description: TWINOX4 bracket, stainless steel, for 1 twin stick, ± 2° adjustment | Material: Stainless steel | Details: Bracket material: stainless steel V4A (1.4404, 316L), Seal material: EPDM | Packing unit: 1 piece | Suitable for: For 1 twin stick

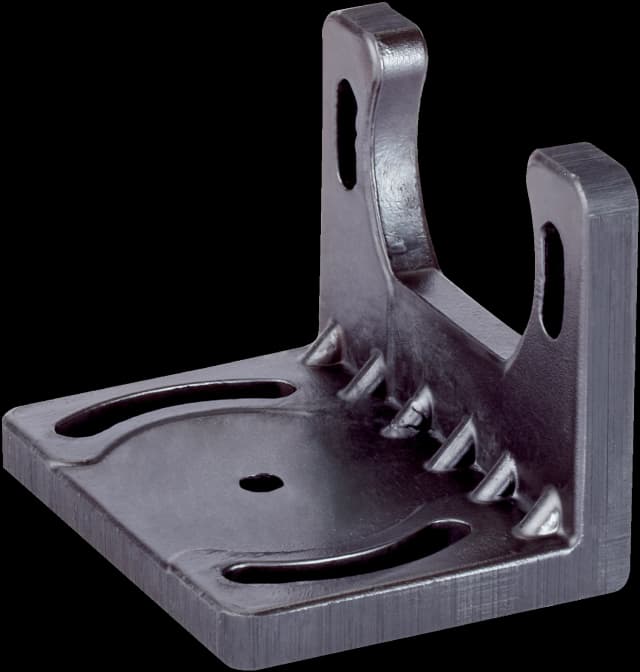

BEF-4WNAEFAL1
Mounting systems | Brackets | BEF-4WNAEFAL1 | Description: Bracket, face side mounting position
BEF-AD-G14-G12A-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12A-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”A (according to EN ISO 1179-2) including seal (NBR+FKM); width across flats: 27; pressure resistance according to standard, but max. 400 bar (possible classification according to Pressure Equipment Directive (DGRL) i
BEF-AD-G14-G12B-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12B-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”B (according to EN 837-1) including seal (stainless steel); width across flats: 27; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL
BEF-AD-G14-G12B06-PXX
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12B06-PXX | Description: Process adapter for pressure sensors with G 1/4” female thread; material: stainless steel 1.4404, width across flats: 27; connection on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”B (according to EN 837-1) with 0.6 mm erosion drilling for pressure peak damping, including seal (stainless steel); pressure resistance according to standard, but max. 600 b
BEF-AD-G14-G14B-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G14B-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side:G 1/4”B (according to EN 837-1) including seal (stainless steel); width across flats: 21; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL)
BEF-AD-G14-G14B06-PXX
Mounting systems | Flanges and nozzles | BEF-AD-G14-G14B06-PXX | Description: Process adapter for pressure sensors with G 1/4” female thread; material: stainless steel 1.4404, width across flats: 27; connection on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side:G 1/4”B (according to EN 837-1) with 0.6 mm erosion drilling for pressure peak damping, including seal (stainless steel); pressure resistance according to standard, but max. 600 ba
BEF-AD-G14-M20-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-M20-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837) including seal (stainless steel); connection on process side: M20x1.5 (according to EN 837-1) including seal (stainless steel); width across flats: 27; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL) i
BEF-AD-G14-R14-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-R14-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: R 1/4”A (according to ISO 10226); width across flats: 21; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL) is application-specific and the
BEF-AD-G14-SAE-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-SAE-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: SAE 7/16-20 (according to SAE J514) including seal (FKM); width across flats: 21; pressure resistance according to standard, but max. 345 bar (possible classification according to Pressure Equipment Directive (DGRL) is appl

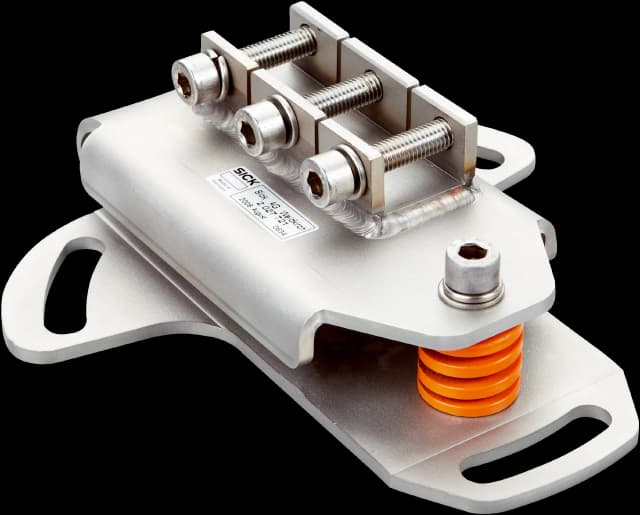

BEF-AH-DME
Mounting systems | Brackets | BEF-AH-DME | Description: Alignment unit for DME5000, stainless steel (1.4541), incl. mounting material, additional base plate mounting kit required | Items supplied: Mounting hardware included

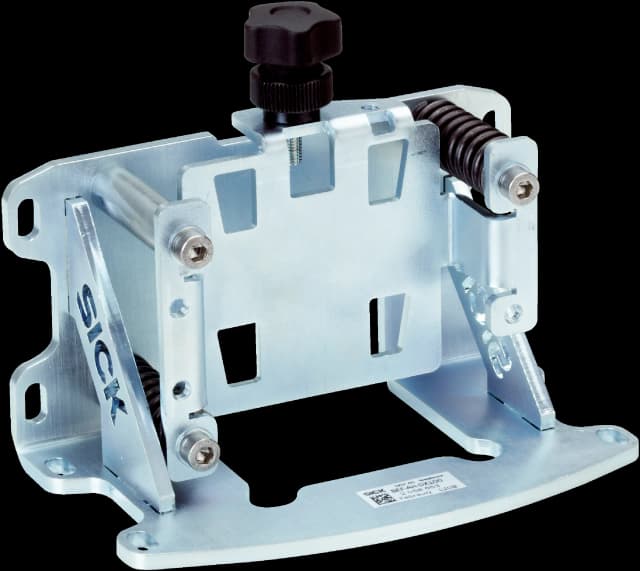

BEF-AH-DX100
Mounting systems | Brackets | BEF-AH-DX100 | Description: Alignment unit for Dx100, incl. mounting material | Material: Steel | Details: Steel, zinc coated

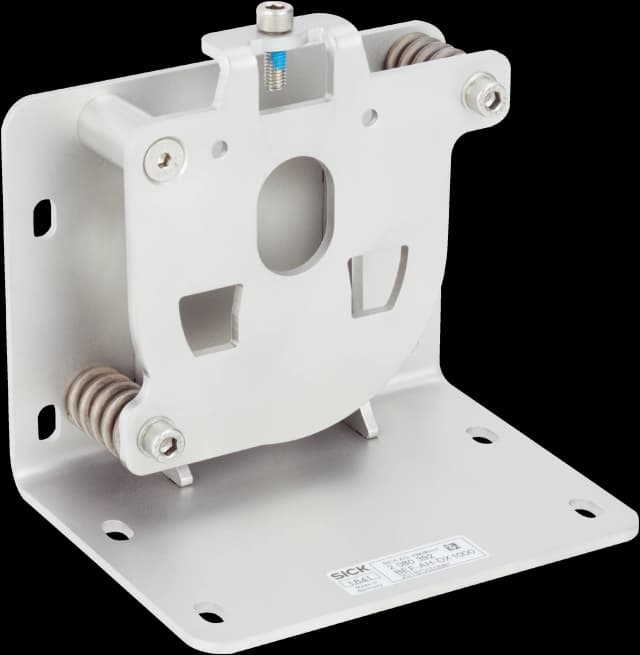

BEF-AH-DX1000
Mounting systems | Brackets | BEF-AH-DX1000 | Description: Alignment bracket for mounting and precise alignment of the sensor in a horizontal and vertical direction | Material: Stainless steel | Details: Stainless steel | Items supplied: Mounting hardware included

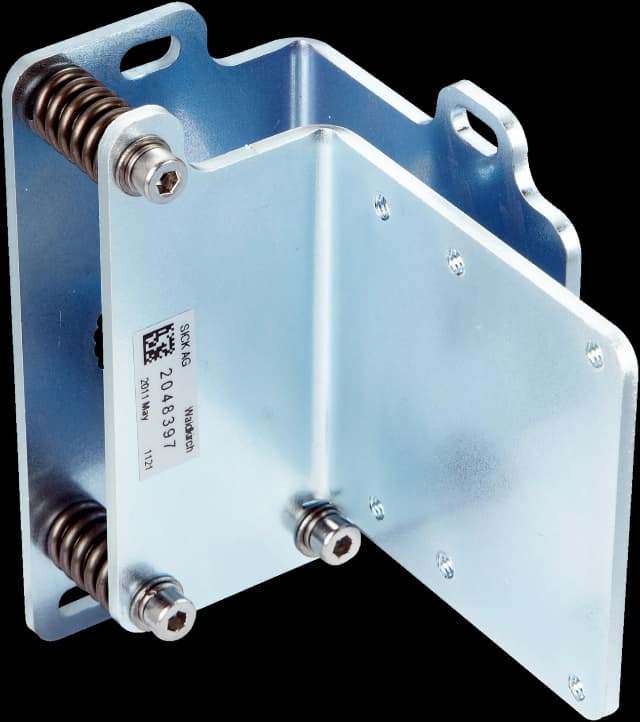

BEF-AH-DX50
Mounting systems | Brackets | BEF-AH-DX50 | Description: Alignment unit | Material: Steel | Details: Steel, zinc coated | Items supplied: Mounting hardware for the sensor included
BEF-AH-EMV
Mounting systems | Brackets | BEF-AH-EMV | Description: Alignment unit | Material: Steel | Details: Steel, zinc coated | Items supplied: Mounting hardware for the sensor included

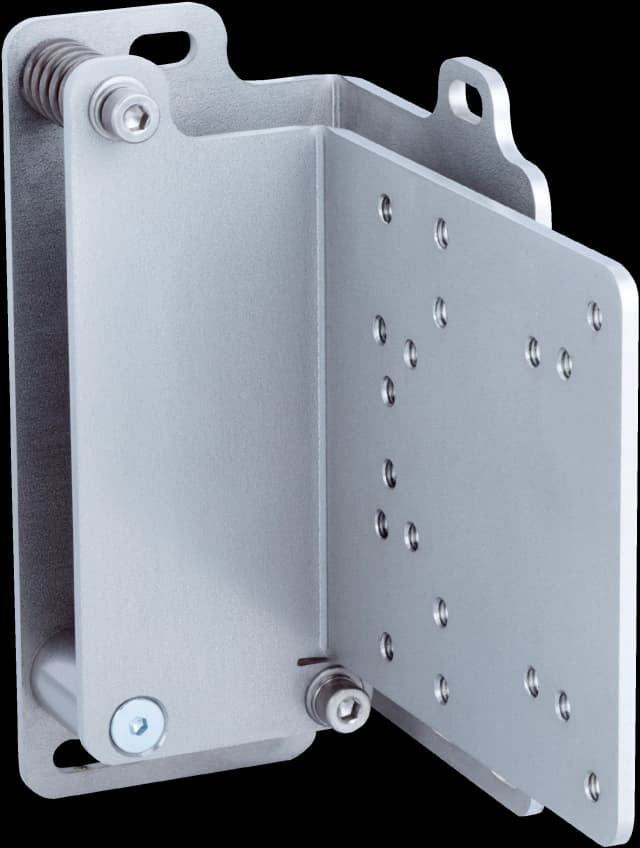

BEF-AH-OD1000
Mounting systems | Brackets | BEF-AH-OD1000 | Description: Galvanized steel alignment bracket with mounting accessories | Material: Steel | Details: Steel, zinc coated | Items supplied: Mounting hardware for the sensor included

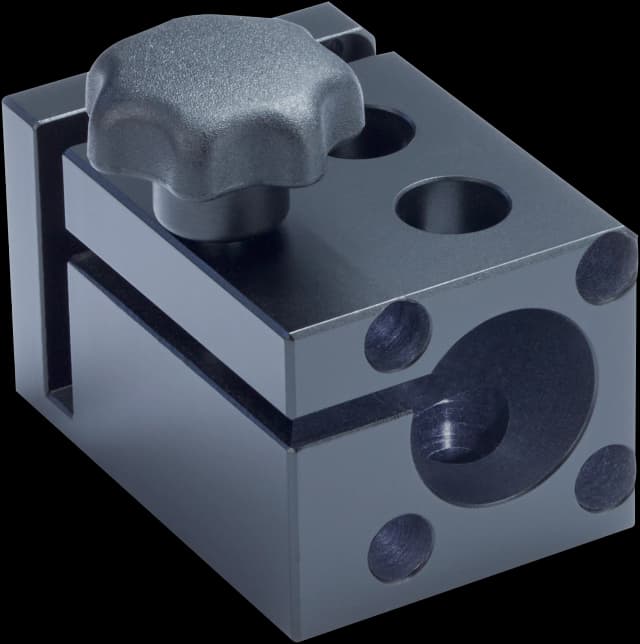

BEF-AH-OD7000-006
Mounting systems | Brackets | BEF-AH-OD7000-006 | Description: Clamping bracket for OD7000 (OD7000-1006xxxx) | Material: Plastic | Details: Plastic (PA12), glass-fiber reinforced | Suitable for: OD7000

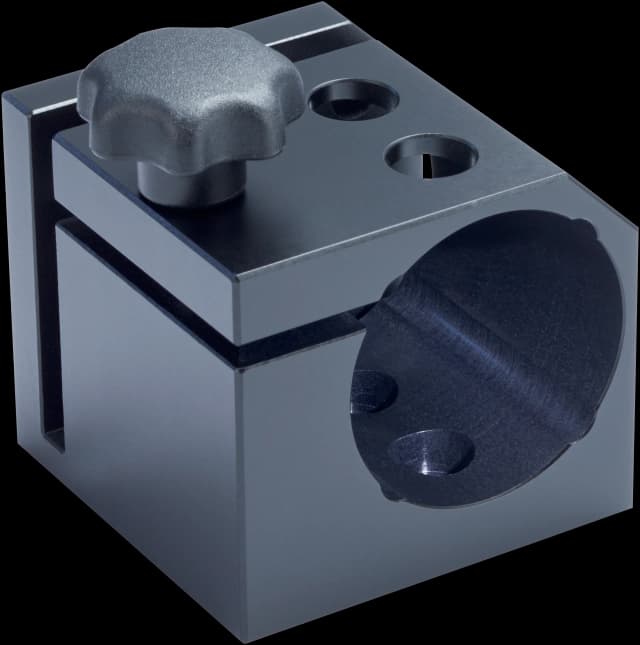

BEF-AH-OD7000-030
Mounting systems | Brackets | BEF-AH-OD7000-030 | Description: Clamping bracket for OD7000 (OD7000-1040xxxx) | Material: Plastic | Details: Plastic (PA12), glass-fiber reinforced | Suitable for: OD7000

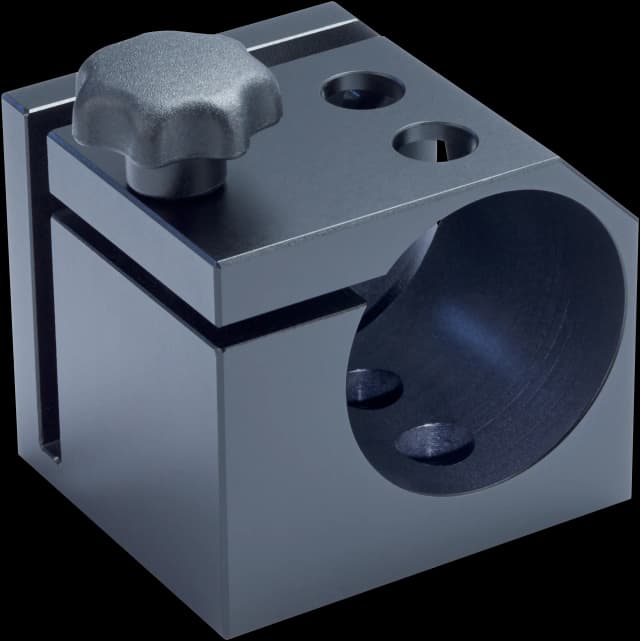

BEF-AH-OD7000-100
Mounting systems | Brackets | BEF-AH-OD7000-100 | Description: Clamping bracket for OD7000 (OD7000-1100xxxx) | Material: Plastic | Details: Plastic (PA12), glass-fiber reinforced | Suitable for: OD7000

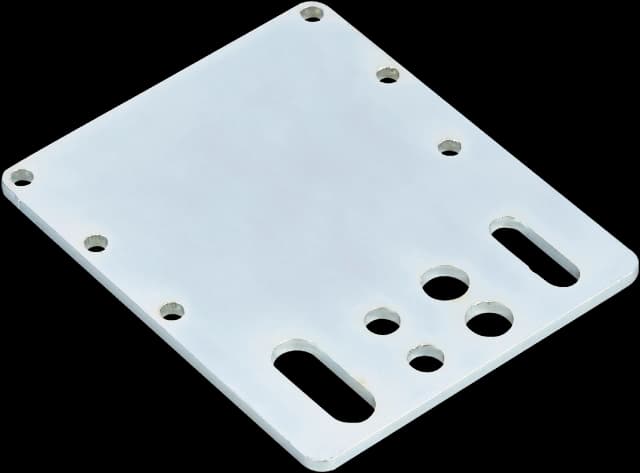

BEF-AP Inspector
Mounting systems | Brackets | BEF-AP Inspector | Description: Flat Inspector bracket with holes for mounting the Inspector vision sensor and the VLR-66BL1611 background lighting. Additional holes for screws, 2 x M6 and 2 x M8

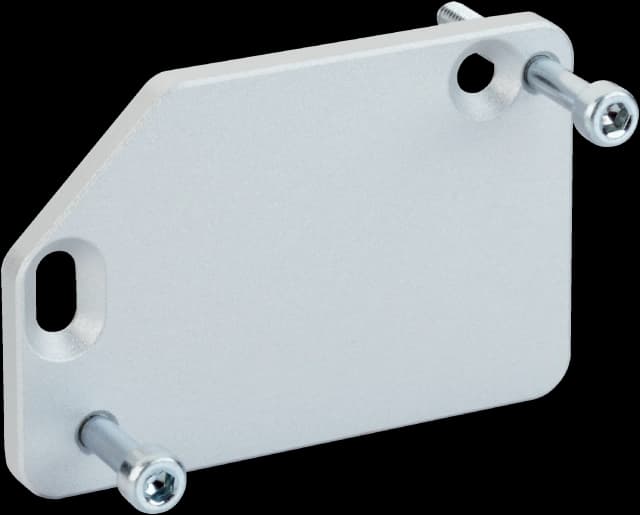

BEF-AP-AS30
Mounting systems | Brackets | BEF-AP-AS30 | Material: Aluminum | Details: Aluminum | Items supplied: Mounting hardware for the sensor included | Usable for: Adapter plate for AX20 to AS30

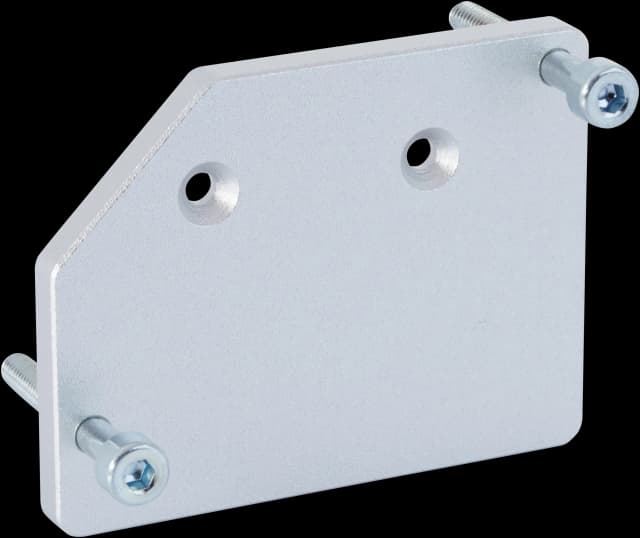

BEF-AP-CSS
Mounting systems | Brackets | BEF-AP-CSS | Description: Adaptation of CSS High Resolution and CSS High Speed to third party hole pattern | Material: Aluminum | Details: Aluminum | Items supplied: Mounting hardware for the sensor included
