Търсене в каталога
41538 резултата за "SICK" · стр. 98/2077
HSE18-A4A2BD
Photoelectric sensors | H18 Sure Sense | HSE18-A4A2BD | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right: Off delay, adjustable: 0 ... 2 s | Potentiometer, left: No
WFL30-40B41CA00
Fork sensors | WFL | WFL30-40B41CA00 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Light source: Laser | Type of light: Visible red light | Fork width/depth: 30 mm, 42 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 11 kHz | Response time: ≤ 60 µs | Enclosure rating: IP65
LFV230-XXSGATPV0200
Level sensors | LFV200 | LFV230-XXSGATPV0200 | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 200 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no

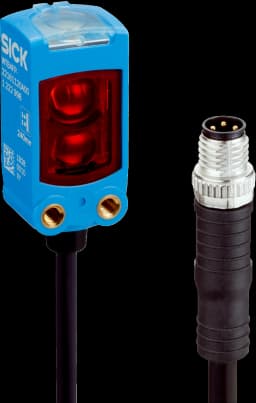

WTB4FP-97311A0ZZZ
Photoelectric sensors | W4 | WTB4FP-97311A0ZZZ | Sensing range min. / max.: 28 mm / 165 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, MultiPulse | Switching output: Push-pull: PNP/NPN | Connection type: Cable with plug M8, 3-pin, with knurled nut, 318 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: MultiPulse: sensor with self-monitoring | Housi

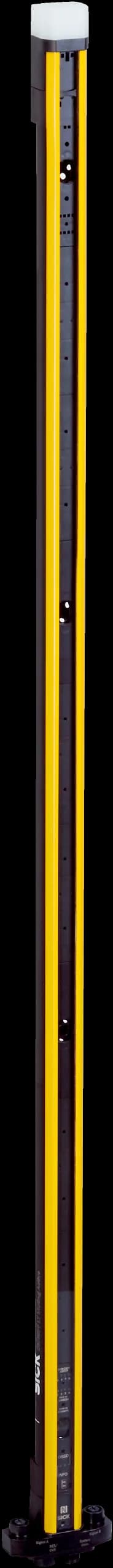

M4M-ZA04300D20
Safety light-beam sensors | deTem | M4M-ZA04300D20 | Product version: deTem4 LT Muting A/P | Functional principle: Active/passive | System part: Active unit | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Male connector M12, 8-pin | End cap with integrated LED: yes

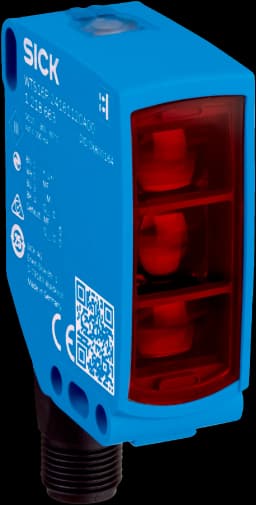

WTS16P-24161300CZZ
Photoelectric sensors | W16 | WTS16P-24161300CZZ | Sensing range min. / max.: 50 mm / 750 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology, MultiPulse | Switching output: Push-pull: PNP/NPN | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sen
YF8U24-030UB4XLEAX
Connectors and cables | Sensor-actuator cables | YF8U24-030UB4XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
IME18-05BNSZW2K
Inductive proximity sensors | IME | IME18-05BNSZW2K | Housing: Short-body | Sensing range Sn: 5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m
VHD
Object detection systems | Vehicle Hotspot Detection System | VHD | Integrated application: Vehicle classification, Vehicle measurement, temperature measurement, Speed monitoring
DOS-0803-WSK
Connectors and cables | Field-wireable connectors | DOS-0803-WSK | Description: Unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: 0.14 mm² ... 0.5 mm²

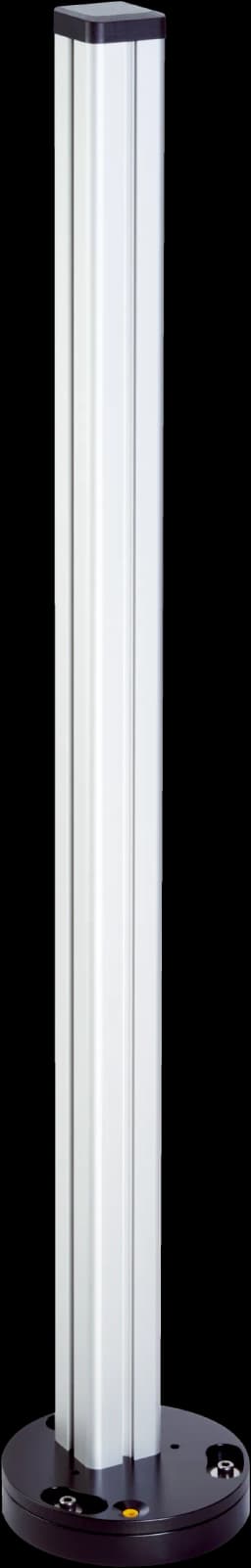

PC4-C201100000000
Mounting systems | Device columns | PC4-C201100000000 | Model: PC4 Compact Column | Column height: 2,010.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PC4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for downlo

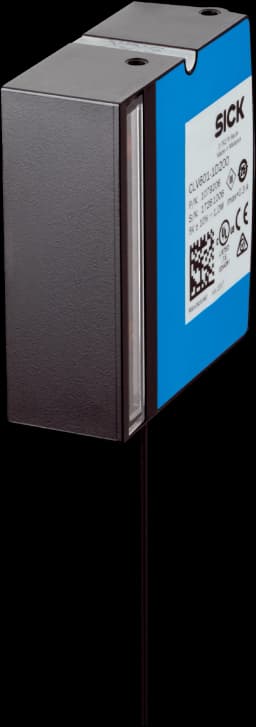

CLV601-3D200
Fixed mount barcode scanners | CLV60x | CLV601-3D200 | Optical focus: Fixed focus | Communication interface: Serial | Type: Cable connection variant | Max. reading distance: 70 mm | Code resolution: 0.125 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Plastic | Cold storage applications: no | Enclosure rating: IP40
YF2ASD-030XXXXLECX
Connectors and cables | Other connectors and cables | YF2ASD-030XXXXLECX | Description: Power, suitable for 2 A, shielded, Serial, Changed color coding of the flying leads, CAN, Digital I/Os | Connection type head A: Female connector, M12, 17-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Power, serial, CAN, digital I/Os | Cable: 3 m, 17-wire, stripped, PE-X | Connection systems: Flying leads | Note: Max. permissible current strength at ambient temperature 50 °C: Co
OBW-W45
Device protection and care | Protective housing | OBW-W45 | Description: Weather hood | Material: Aluminum | Items supplied: Mounting hardware included

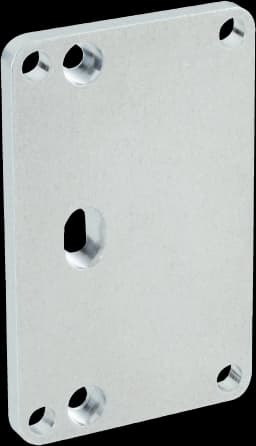

BEF-AP-G10B
Mounting systems | Brackets | BEF-AP-G10B | Material: Aluminum | Details: Aluminum | Items supplied: Including mounting material (sensor) and mounting material (bracket)
DOS-1204-WZ
Connectors and cables | Field-wireable connectors | DOS-1204-WZ | Description: PROFINET, shielded | Connection type head A: Female connector, M12, 4-pin, angled, D-coded | Signal type: PROFINET | Cable: CAT5, CAT5e | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² ... 0.34 mm²
I2D303M-2RCA11
Machine vision | picoCam2 | I2D303M-2RCA11 | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Sensor resolution: 2,048 px x 1,536 px (3.15 MP) | Sensor: CMOS monochrome | Sensor used: Sony IMX265
PGT-11-S LAN
Programming devices | PGT-11-S | PGT-11-S LAN | Product segment: Programming devices | Product: PGT-11-S | Description: SVip® LAN programming tool for all motor feedback systems | Items supplied: 1x programming tool PGT-11-S LAN, 1x power supply unit 100-240 V AC / 12 V DC, primary adapter (Europe, UK, USA/Japan, Australia), Ethernet cable 3 m
WL9L-3P2232
Photoelectric sensors | W9 | WL9L-3P2232 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Adjustment: Teach-in button | Laser class: 1 | Communication interface: -

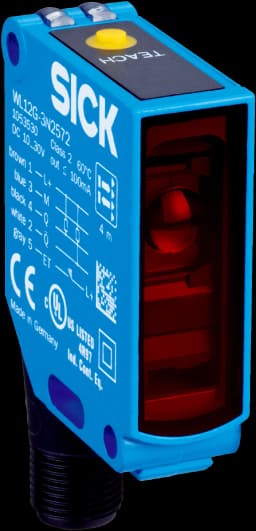

WL12G-3P2582P04
Photoelectric sensors | W12G | WL12G-3P2582P04 | Sensing range max.: 0 m ... 3 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Light source: LED | Type of light: Infrared light | Housing material: Zinc diecast | Adjustment: Wire/pin, Teach-in button | Special features: Different functions selectable by teach-in. Function 1 = Sensitivity adjustment. Function 2 = Operation mode selection
