Pallet Lector Array 2-sided-203
Track and trace systems | Lector Identification System | Pallet Lector Array 2-sided-203 | Read field width: 800 mm | Object height: 0 mm ... 1,400 mm | Transport speed: 0 m/s ... 1.5 m/s | 1D code resolution: 0.5 mm ... 1 mm | 2D code resolution: 1 mm ... 2 mm | Number of cameras: 2 | Scope of delivery: Lector Camera, connection module, PES trigger

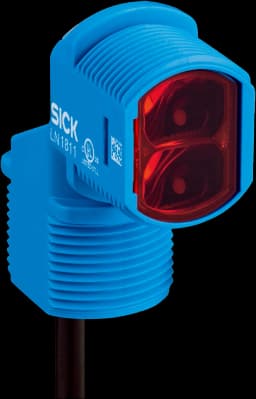

ZLD18-4FZ1G8
Photoelectric sensors | Z18 Simple Sense | ZLD18-4FZ1G8 | Communication interface: - | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: PNP, Dark switching | Switching output Q2: Not connected | Connection type: Cable open end, 4-wire, 2,000 mm
CDB620-201
Junction boxes | CDB | CDB620-201 | Communication interface: Serial, CAN | Communication Interface detail: RS-232 | Operating voltage: 10 V DC 30 V DC | Supported products: CLV61x - CLV65x, Lector62x, RFH6xx, RFU62x
WL2S-2P1030S02
Photoelectric sensors | W2 | WL2S-2P1030S02 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light switching | Connection type: Cable, 3-wire, 3 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -

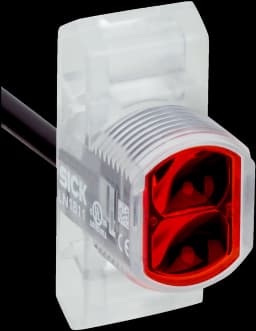

ZLD18-APZ3B8
Photoelectric sensors | Z18 Simple Sense | ZLD18-APZ3B8 | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: PNP, Light switching | Switching output Q2: Not connected | Connection type: Cable with M8 male connector, 4-pin, 150 mm
IQ20-07BNSDP0S
Inductive proximity sensors | IQV | IQ20-07BNSDP0S | Sensing range Sn: 7 mm | Installation type: Flush | Cuboid shape (W x H x D): 20 mm x 32 mm x 8 mm | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.3 m

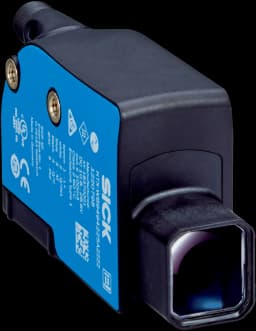

KTX-WB9134225AZZZZ
Contrast sensors | KTX | KTX-WB9134225AZZZZ | Light source: LED | Communication interface: IO-Link | Device type: Standard | Sensing distance: 40 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.9 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
PBS2-RB400SG1NSDQ5A0Z
Pressure sensors | PBS plus | PBS2-RB400SG1NSDQ5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 400 bar, 0 psi ... 5,802 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.3 mm pressure port | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | O
PAC50-DCD
Pressure sensors | PAC50 | PAC50-DCD | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: PIF 4 mm + G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: IO-Link | Output signal: IO-Link/PNP + PNP/NPN/Push-Pull | Connection type: M12 round connector x 1, 4-pin,
PGT-15-WIRE
Programming devices | PGT-15 | PGT-15-WIRE | Product segment: Programming devices | Product: PGT-15 | Description: PC programming unit for programmable TMS/TMM22B inclination sensors. Connects the strands of the sensor to a PC/laptop via the terminal box, enabling parameterization and diagnostics via SOPAS ET. The cable of the programming unit must not be extended. | Items supplied: 1 x PGT-15-WIRE PC programming unit

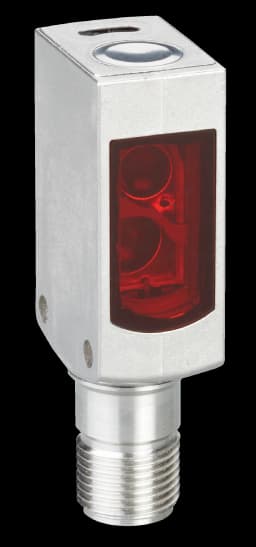

WLG4S-3P2432V
Photoelectric sensors | W4 | WLG4S-3P2432V | Sensing range max.: 0 m ... 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Hou
DBS60E-BHEA01024
Incremental encoders | DBS60 | DBS60E-BHEA01024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
FLB3678 base station
Rechargeable batteries and base stations | Base stations | FLB3678 base station | Enclosure rating: IP65 | Description: Charging and WPAN receiver station for ZS36xx, enclosure rating IP65 (Zebra FLB3678-C126F3WW), may require power supply unit (part number 4108973, Zebra PWR-BGA12V50W0WW), DC cable (part number 2116720, Zebra CBL-DC-451A1-01) and AC cable
OD2-N30W04I2
Laser distance sensors | OD Value | OD2-N30W04I2 | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
WFL120-60B41CA00
Fork sensors | WFL | WFL120-60B41CA00 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Light source: Laser | Type of light: Visible red light | Fork width/depth: 120 mm, 59 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 11 kHz | Response time: ≤ 60 µs | Enclosure rating: IP65
KUP-1010-F
Shaft adaptation | Shaft couplings | KUP-1010-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin
A3M60B-S1PB013x13
Absolute encoders | A3M60 | A3M60B-S1PB013x13 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 13 bit (8,192 x 8,192) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: PROFIBUS DP, DPV0, programmable | Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial | Programming interface: Over PLC-Engineering-Tool
AFM60B-BHAA004096
Absolute encoders | AFS/AFM60 SSI | AFM60B-BHAA004096 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
DT500-A323
Laser distance sensors | Dx500 | DT500-A323 | Communication interface: CAN | Measuring range: 0.2 m ... 7 m, 90% remission factor, 0.8 m ... 7 m, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 150 ms | Multifunctional input (MF): PNP
VPS553
Profiling systems | VPS Pro | VPS553 | Integrated application: Measurement of dimensions for one vehicle at a time | Application: System for measurement of vehicle dimensions | Items supplied: LMS511 SE (3 x), VPS Traffic Controller with VPS software incl.USB stick with TEMS info sample client, source code for TEMS info sample client, TEMS analyzer, and operating instructions
