UC4-13346
Ultrasonic distance sensors | UC4 | UC4-13346 | Communication interface: - | Operating range, limiting range: 20 mm ... 150 mm, 250 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Straight | Response time: 24 ms | Type of analog output: Current output
STE-1204-GE
Connectors and cables | Field-wireable connectors | STE-1204-GE | Description: Ethernet, shielded, PROFINET | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Signal type: Ethernet, PROFINET | Connection systems: Spring-cage connection | Permitted cross-section: ≤ 0.5 mm² | Application: Hygienic and washdown zones
WTB4SP-84161120A00
Photoelectric sensors | W4 | WTB4SP-84161120A00 | Sensing range min. / max.: 4 mm / 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug M12, 4-pin, 190 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link
UP56-211115
Level sensors | UP56 | UP56-211115 | Communication interface: IO-Link | Process connection: G 1 A | Remote amplifier: No | Output signal: 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 30 mm ... 250 mm | M
GRSE18S-P2338
Photoelectric sensors | GR18 | GRSE18S-P2338 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (4 x)
L41S-11MA1B, L41E-11MA1B
Safety light-beam sensors | L41 | L41S-11MA1B, L41E-11MA1B | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 7 m | Diameter: M18 | Optical axis: Radial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
BEF-RMC-D12S01
Mounting systems | Brackets | BEF-RMC-D12S01 | Description: Bar clip for Ø 12 mm (fixing the mounting rod) | Material: Aluminum, steel | Details: Aluminum (collar clamps), Steel, phospated (weld plate) | Items supplied: 2 x M6 x 30, 2 washer, weld plate
DOS-1204-WX
Connectors and cables | Field-wireable connectors | DOS-1204-WX | Description: Unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm²

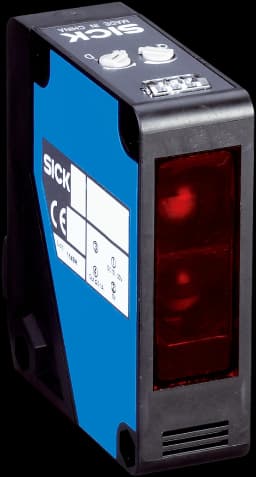

WL280-2P4331
Photoelectric sensors | W280 | WL280-2P4331 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable gland | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W280, Reflector P250
NANS3-CAAZ30ZA1
Safety laser scanners | nanoScan3 | NANS3-CAAZ30ZA1 | Product version: nanoScan3 Pro - EFI-pro | Model: Sensor without system plug | Integration in the control system: EFI-pro | Protective field range: 3 m | Scanning angle: 275° | Number of fields: 128
V3DU3-020RM21A
Machine vision | Ruler3000 | V3DU3-020RM21A | Product version: Ruler3020 | Working distance: 245.5 mm ... 370.5 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 2 | Window material: Float glass, anti-reflective coated
BEF-HDSF
Mounting systems | Brackets | BEF-HDSF | Description: Hygienic design flange with seal | Dimensions (W x H x L): 40 mm x 12 mm x 40 mm | Material: Stainless steel, stainless steel | Details: Hygienic Design, Stainless steel V4A (1.4404, 316L), Silicone (seal) | Suitable for: Hygienic Design BeftecHD

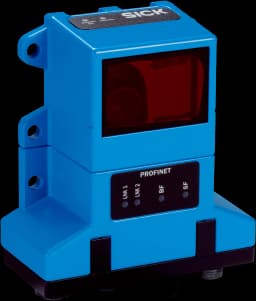

OLM200-1009
OLM | OLM200-1009 | Communication interface: PROFINET | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 2.5 ms | Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm
KTX-WB9114225AZZZZ
Contrast sensors | KTX | KTX-WB9114225AZZZZ | Light source: LED | Communication interface: IO-Link | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Short device side | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
Sliding nuts
Mounting systems | Assembly accessories | Sliding nuts | Description: Sliding nut set, M5, 4x | Packing unit: 4 pieces | Items supplied: Included in delivery
DOL-1204W10MC75KM0
Connectors and cables | Power cables | DOL-1204W10MC75KM0 | Description: Power, unshielded | Connection type head A: Female connector, M12, 4-pin, angled | Connection type head B: Flying leads | Signal type: Power | Cable: 10 m, 4-wire, PUR, halogen-free | Connection systems: Flying leads | Application: Drag chain operation, Zones with oils and lubricants
PLB-5240101
Robot guidance systems | PLB | PLB-5240101 | Items supplied: X36 camera, PLB Application Software | Part size: (approx.) > 20 mm x 20 mm x 20 mm | Part characteristics: Simple and complex part shapes | Bin size: Medium
WTT12L-A2563
Laser distance sensors | WTT12 PowerProx | WTT12L-A2563 | Product version: PowerProx Distance | Sensing range max.: 50 mm ... 3,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: 4 mA ... 20 mA / 0 V ... 10 V / switchable | Communication interface: -
L41S-21MA1B, L41E-21MA1B
Safety light-beam sensors | L41 | L41S-21MA1B, L41E-21MA1B | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 16 m | Diameter: M18 | Optical axis: Axial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
CLV690-0001
Fixed mount barcode scanners | CLV69x | CLV690-0001 | Optical focus: Auto focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Type: Cloning plug | Max. reading distance: 2,100 mm | Code resolution: 0.3 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: yes | Enclosure rating: IP65
