41538 резултата за "SICK" · стр. 87/2077
Visionary mounting kit
Mounting systems | Brackets | Visionary mounting kit | Description: Alignment brackets, Mounting set (2-part) incl. screws | Dimensions (W x H x L): 100 mm x 120 mm x 45 mm | Material: Aluminum | Details: Aluminum | Color: Black | Packing unit: 1 piece | Suitable for: Visionary-T Mini, safeVisionary2, Visionary-T Mini, safeVisionary2

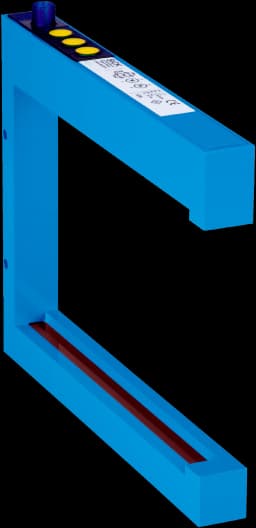

FLG2-20012021
Automation light grids | FLG | FLG2-20012021 | Device version: Open | Beam separation: 2 mm | Detection height: 120 mm | Detection field (W x H): 120 mm 200 mm | Response time: < 0.1 ms

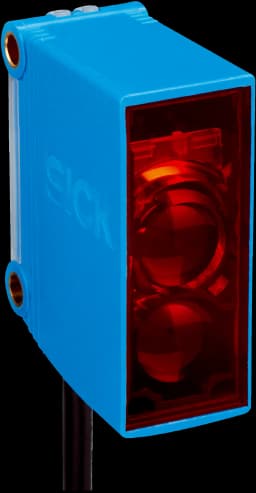

GL10-00531S13
Photoelectric sensors | G10 | GL10-00531S13 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with plug M12, 5-pin, 300 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
IMI18-08BPONC0S
Inductive proximity sensors | IMI | IMI18-08BPONC0S | Special applications: Hygienic and washdown zones, Difficult application conditions | Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents

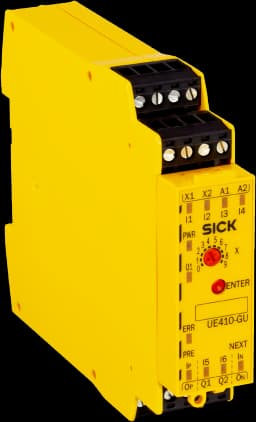

UE410-GU3
Safety controllers | Flexi Classic | UE410-GU3 | Module: Main module | Specialization: Global emergency stop | Inputs: 4 safety inputs, 2 switching inputs, 2 inputs for the global emergency stop function | Outputs: 1 safety output, 2 test outputs, 1 diagnostic output, 2 outputs for the global emergency stop function | Connection type: Plug-in screw-type terminals | Protective coating for more challenging ambient conditions: no
FXL1-SPBMSA00
Safety switches | flexLock | FXL1-SPBMSA00 | Locking principle: Power to release | Switching behavior of the OSSDs: Locking monitoring | Switching behavior of the application diagnostic output: Actuator monitoring | Coding: Universally coded | Auxiliary release: yes | Escape release: no | Retaining force: 30 N
DBS36E-S3EL01000
Incremental encoders | DBS36/50 | DBS36E-S3EL01000 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,000
V3DR3-60NE31111
Machine vision | Ranger3 | V3DR3-60NE31111 | Product version: Ranger3-60 | Scan/frame rate: 46,000 3D profiles/s, in AOI, 7,000 3D profiles/s, full format | Lens: C-mount
LFH-SBX60G1AS20SZ0
Level sensors | LFH | LFH-SBX60G1AS20SZ0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: PUR cable connection | Process temperature: –10 °C ... +50 °C | Process pressure: 0 bar ... 0.6 bar | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no

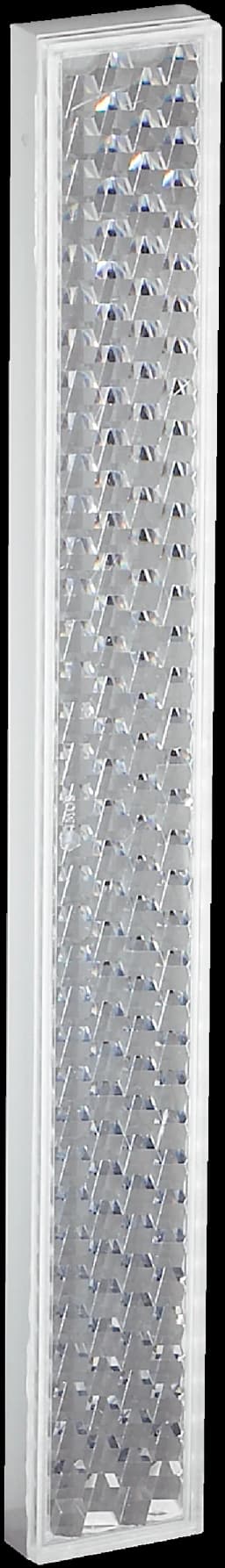

PL150
Reflectors and optics | Reflectors | PL150 | Description: Rectangular, self-adhesive | Dimensions: 18 mm 8 mm 150 mm | Ambient operating temperature: –20 °C ... +65 °C
GTB20G-QLRC116GZZZ
Photoelectric sensors | G20 | GTB20G-QLRC116GZZZ | Sensing range min. / max.: 0.005 m / 3 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Terminal connection, 5 terminals | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
PLB-51A0100
Robot guidance systems | PLB | PLB-51A0100 | Items supplied: C57 camera, PLB Application Software | Part size: (approx.) > 30 mm x 30 mm x 30 mm | Part characteristics: Simple and complex part shapes | Bin size: Large
YG2A15-050VB5XLEAX
Connectors and cables | Sensor-actuator cables | YG2A15-050VB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals

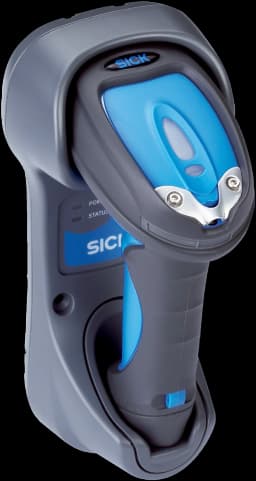

IDM161-411S RS-232 Kit
Mobile handheld scanners | IDM | IDM161-411S RS-232 Kit | Readable code structures: 1D codes, Stacked | Reading distance: 20 mm ... 850 mm | Application: Industrial application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, Bluetooth | Ambient operating temperature: –20 °C ... +50 °C | Code resolution: ≥ 0.076 mm
NANSX-AAACZZZZ1
System plugs and extension modules | System plugs nanoScan3 | NANSX-AAACZZZZ1 | Description: Integrated configuration memory

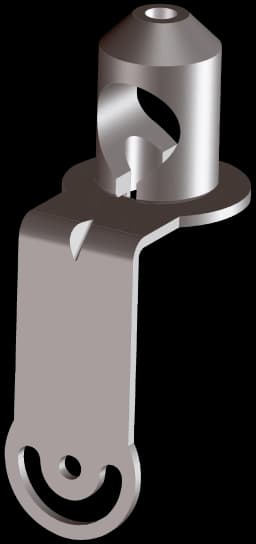

Universal clamping bracket
Mounting systems | Brackets | Universal clamping bracket | Description: Universal clamping bracket for rod mounting, diameter upto 12 mm | Material: Steel | Details: Steel, zinc coated
V3DU3-120RM25A
Machine vision | Ruler3000 | V3DU3-120RM25A | Product version: Ruler3120 | Working distance: 435 mm ... 1,445 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 2 | Window material: PMMA
YF2AP4-100VB3XLEAX
Connectors and cables | Sensor-actuator cables | YF2AP4-100VB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 4-wire, PVC | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydr
LFH-EW6X0G1AS40SV0
Level sensors | LFH | LFH-EW6X0G1AS40SV0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: PUR cable connection | Process temperature: –10 °C ... +50 °C | Process pressure: 0 mH2O ... 6 mH2O | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Additional function: Ov
WT100L-F1141
Photoelectric sensors | W100 | WT100L-F1141 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: - | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
