Търсене в каталога
41538 резултата за "SICK" · стр. 83/2077
STR1-SAXM03P8
Safety switches | STR1 | STR1-SAXM03P8 | Coding: Universally coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable, 7-wire | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)

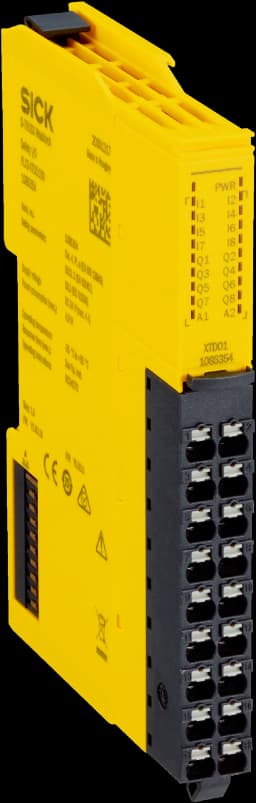

FLX3-XTDO100
Safety controllers | Flexi IO | FLX3-XTDO100 | Module: I/O module | Short designation: XTDO1 | Safety inputs: 8 | Safety outputs: 8 | Connection type: Front connector with spring terminals | Items supplied: I/O module, Front connector with 18 terminals, safety instruction, Operating instructions for download
IME12-06BPSZC0S
Inductive proximity sensors | IME | IME12-06BPSZC0S | Housing: Standard design | Sensing range Sn: 6 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Triple sensing range
WF15-40B410
Fork sensors | WF | WF15-40B410 | Adjustment: Plus/minus button | Light source: LED | Type of light: Infrared light | Fork width/depth: 15 mm, 42 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
WTT12L-B2541
Laser distance sensors | WTT12 PowerProx | WTT12L-B2541 | Product version: PowerProx Precision | Sensing range max.: 50 mm ... 1,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Plug, M12, 5-pin | Analog output: - | Communication interface: -
WL9LGC-3P2232B01
Photoelectric sensors | W9 | WL9LGC-3P2232B01 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Adjustment: IO-Link, Teach-in button | Laser class: 1 | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Sma
GRL18SG-F2332
Photoelectric sensors | GR18 | GRL18SG-F2332 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
V3DU3-060RR21A
Machine vision | Ruler3000 | V3DU3-060RR21A | Product version: Ruler3060 | Working distance: 395 mm ... 815 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 3R | Window material: Float glass, anti-reflective coated

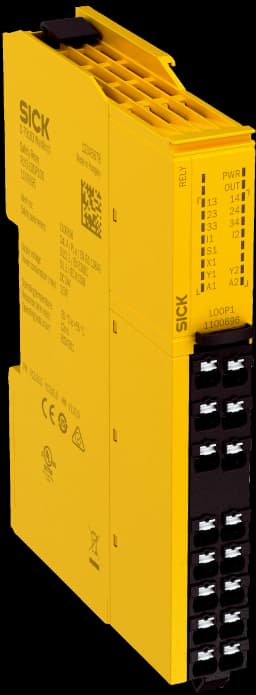

RLY3-LOOP100
ReLy | RLY3-LOOP100 | Applications: Evaluation unit | Compatible sensor types: Flexi Loop safe series connection | Connection type: Front connector with spring terminals | Restart interlock: yes | External device monitoring (EDM): Integrated | Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe) | Housing width: 18 mm
GRTB18-P2412
Photoelectric sensors | GR18 | GRTB18-P2412 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
IME12-04BPSZT0K
Inductive proximity sensors | IME | IME12-04BPSZT0K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin

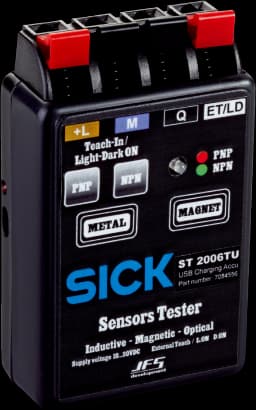

Test box
Power supply units and power supply cables | Power supply units | Test box | Description: Independent 18 V power supply unit for testing sensors. With teach-in button for teaching and fine adjustment of sensors including external teach-in cable, PNP & NPN, with metal and magnet insert for testing magnetic and cylinder sensors, incl. 2 x 9V batteries
WF50-60B410
Fork sensors | WF | WF50-60B410 | Adjustment: Plus/minus button | Light source: LED | Type of light: Infrared light | Fork width/depth: 50 mm, 59 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
UFS3-37B517
Fork sensors | UFS | UFS3-37B517 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Fork width/depth: 2.6 mm, 42.5 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Length of cable: 0.265 m | Connection type Detail: Cable with plug, M12, 4-pin | Switching frequency: 1.1 kHz | Response time: ≤ 440 µs | Enclosure rating: IP65
UM30-212111
Ultrasonic distance sensors | UM30 | UM30-212111 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x PNP
YF2A28-200VA6XLEAX
Connectors and cables | Sensor-actuator cables | YF2A28-200VA6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 8-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
V2D610R-MMSBE4
Image-based code readers | Lector61x | V2D610R-MMSBE4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 640 px x 480 px (0.3 MP) | Illumination color: Amber, blue | Focal length: 6 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)

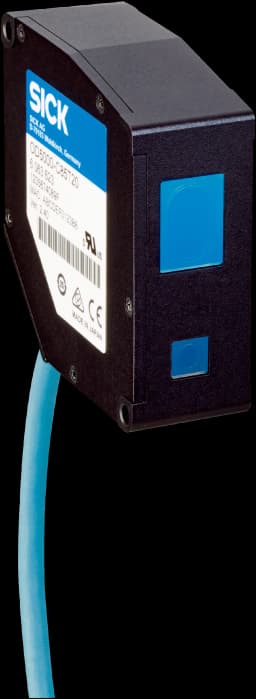

OD5000-C85T20
Laser distance sensors | OD5000 | OD5000-C85T20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): Ø 70 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
DOL-1204-G10MRN
Connectors and cables | Sensor-actuator cables | DOL-1204-G10MRN | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 4-wire, PP | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out,
MPA-143THTP0
Cylinder sensors | MPA | MPA-143THTP0 | Measuring range: 143 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
