Търсене в каталога
41538 резултата за "SICK" · стр. 80/2077
Mounting kit
Mounting systems | Brackets | Mounting kit | Description: Bracket with low weight for stationary applications, screws included. | Dimensions (W x H x L): 204 mm x 166 mm x 100.5 mm | Details: Aluminum | Color: Anthracite | Packing unit: 1 piece | Items supplied: Bracket including clamps and screws | Suitable for: Visionary-S, Visionary-B Two, PALLOC, PLB-510, Visionary AI-Assist
IME08-06NNOZW2S
Inductive proximity sensors | IME | IME08-06NNOZW2S | Housing: Standard design | Sensing range Sn: 6 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
IME08-06NPSZT0S
Inductive proximity sensors | IME | IME08-06NPSZT0S | Housing: Standard design | Sensing range Sn: 6 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Triple sensing range
PALLOC-VS
Robot guidance systems | Visionary-S | PALLOC-VS | Localization accuracy: < +/- 5 mm and < +/- 1° (typical) | Calibration: yes | Dimensions, system (L x W x H): 162 mm x 93 mm x 78 mm (without cooling fins)
CMC600-101
Integration modules and adapters | Cloning modules | CMC600-101 | Description: External parameter memory for integration in CDB620/CDB650/CDM42x
i16-SA113
Safety switches | i16S | i16-SA113 | System part: sensor | Positive action N/C contacts: 1 | N/O contacts: 1 | Housing material: Plastic | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Retaining force: 30 N
WTB4FT-21A11120ZZZ
Photoelectric sensors | W4 | WTB4FT-21A11120ZZZ | Sensing range min. / max.: 7 mm / 120 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, DoubleLine | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment | Housing: Rectangular
CM18-08BNP-TW0
Capacitive proximity sensors | CM | CM18-08BNP-TW0 | Sensing range Sn: 3 mm ... 8 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Cable, 4-wire | Switching output: NPN | Output function: Complementary
LLSE-R1400111020C2
Fiber-optic sensors | Fiber-optic cables | LLSE-R1400111020C2 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel

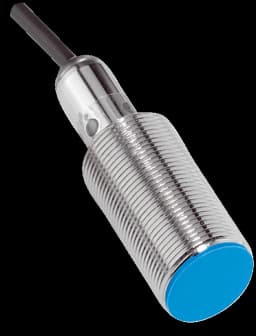

IME18-08BPSZW2K
Inductive proximity sensors | IME | IME18-08BPSZW2K | Housing: Short-body | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
WTB4FP-21312120ZZZ
Photoelectric sensors | W4 | WTB4FP-21312120ZZZ | Sensing range min. / max.: 4 mm / 220 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment | Housing: Rectangular

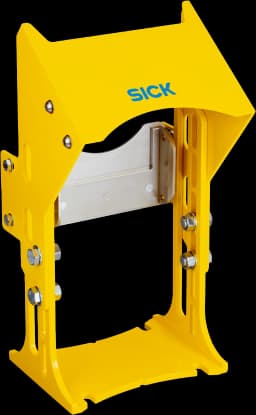

Heavy-duty mounting kit
Mounting systems | Brackets | Heavy-duty mounting kit | Description: Mounting bracket, heavy-duty version, with protection cover, for floor mounting, adjustable longitudinal and lateral axes via alignment plate, height adjustment possible. Tilt angle ± 5º. Additional mounting brackets are not required. | Material: Steel | Details: Steel, painted (RAL 1021) | Color: RAL 1021 (yellow) | Packing unit: 1 piece
IMA12-06BE3ZC0K
Inductive proximity sensors | IMA | IMA12-06BE3ZC0K | Sensing range Sn: 0 mm ... 6 mm | Installation type: Quasi-flush | Output function: Analog | Connection type: Male connector M12, 4-pin | Special features: Analog output, triple sensing range
DL100-21HA2110
Laser distance sensors | Dx100 | DL100-21HA2110 | Communication interface: EtherNet/IP™ | Measuring range: 0.15 m ... 100 m, on “diamond grade” reflective tape | Laser class: 2 | Light source: Laser, red | Minimum response time: 2 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x MF1
TBS-1BES21006CM
Temperature sensors | TBS | TBS-1BES21006CM | Temperature measuring range: –20 °C ... +120 °C | Process connection: Compression fitting G ½ A | Insertion length/diameter of probe: 100 mm / 6 mm | Seal: Copper | Output signal: 1 x PNP + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: -
WTT12L-B2547
Laser distance sensors | WTT12 PowerProx | WTT12L-B2547 | Product version: PowerProx Precision | Sensing range max.: 50 mm ... 1,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: - | Communication interface: -
IME18-12NPSZC0S
Inductive proximity sensors | IME | IME18-12NPSZC0S | Housing: Standard design | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin
BEF-1SHTBPKU2
Mounting systems | Brackets | BEF-1SHTBPKU2 | Description: Compact FlexFix bracket for 1 device (e.g. sender or receiver), can be aligned ± 15°, including M5 screw, for mounting with countersunk screws | Material: Plastic | Details: Plastic | Packing unit: 2 pieces
YM2D24-020PN1M2D24
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-020PN1M2D24 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, M12, 4-pin, straight, D-coded | Signal type: Ethernet, PROFINET | Cable: 2 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
Encoder splitter
Integration modules and adapters | Interface modules | Encoder splitter | Description: Encoder splitter for connection of up to eight devices to one encoder
