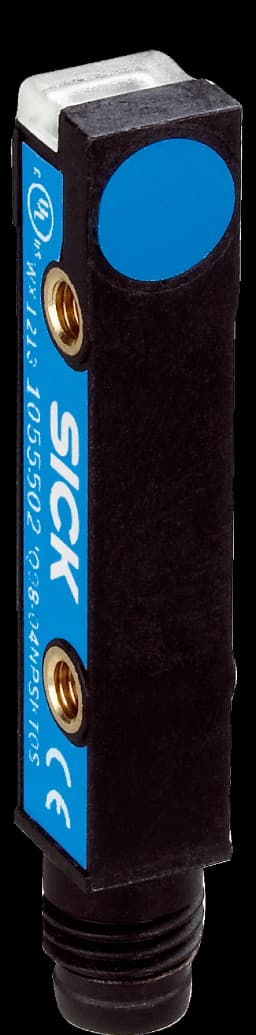

IQ08-02BPSKT0S
Inductive proximity sensors | IQY | IQ08-02BPSKT0S | Sensing range Sn: 2 mm | Installation type: Flush | Cuboid shape (W x H x D): 8 mm x 40 mm x 8 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin

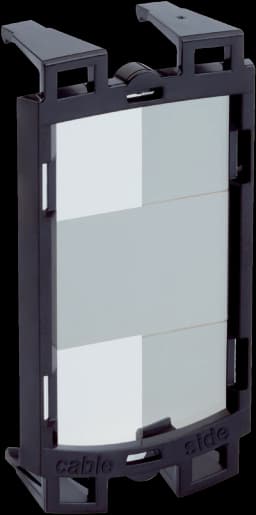

V2D61x polarizing filter
Reflectors and optics | Optical filters | V2D61x polarizing filter | Description: Polarizing filter for reducing disruptive light reflections
FFUS25-1C1SR
Flow sensors | FFU | FFUS25-1C1SR | Nominal width measuring tube: DN 25 | Maximum flow: ≤ 240 l/min | Wetted parts: PPSU, EPDM | Process connection: Clamp (DIN 11864-3) | Output signal: Analog output 4 mA ... 20 mA, 0 mA ... 20 mA current flow and temperature, 2 pulse/status output PNP/NPN-transistor output for flow rate meter, empty pipe detection, flow monitoring, 1 switching input for dosing and counter reset | Process temperature: 0 °C ... +80 °C | Process pressure: ≤ 10 bar

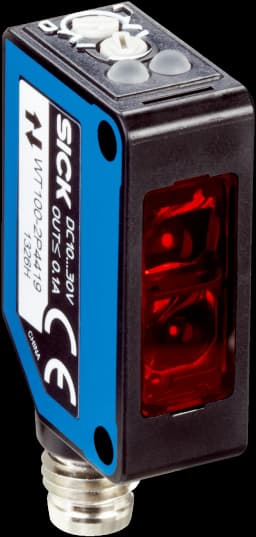

WT100-2P4419
Photoelectric sensors | W100 | WT100-2P4419 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A
YMUSA4-015UT1MUSX4
Connectors and cables | Other connectors and cables | YMUSA4-015UT1MUSX4 | Description: Sensor/actuator cable, shielded | Connection type head A: Male connector, USB-A, 4-pin, straight | Connection type head B: Male connector, USB-C®, 4-pin, straight | Signal type: Sensor/actuator cable | Cable: 1.5 m, 4-wire, PUR, halogen-free
DBS60E-B8FC00100
Incremental encoders | DBS60 | DBS60E-B8FC00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
WTT12LC-B2553
Laser distance sensors | WTT12 PowerProx | WTT12LC-B2553 | Product version: PowerProx Distance Shiny | Sensing range max.: 50 mm ... 1,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: - | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient co
DBS60E-S4EM01024
Incremental encoders | DBS60 | DBS60E-S4EM01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
BEF-KHS-N08N
Mounting systems | Brackets | BEF-KHS-N08N | Description: Plate N08N for universal clamp bracket | Material: Stainless steel, stainless steel | Details: Stainless steel 1.4571 (sheet), Stainless steel 1.4408 (clamp) | Items supplied: Universal clamp (5322627), mounting hardware | Usable for: W100, W150, W4-3, W4S-3, W8, W9-3, W8G, W8 Laser, W8 Inox, G6, W100 Laser, W100-2, W4-3 Glass, W4S-3 Glass, RAY10, W4SLG-3, W9, GR18, MultiPulse, Reflex Array, MultiLine, LUT3, KT5, KT8, KT10, CS8, G6 Inox
PLOC2D-8305-16
Robot guidance systems | PLOC2D | PLOC2D-8305-16 | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Calibration: no | Items supplied: Camera, complete with integrated optics and illumination unit as well as installed PLOC2D software app | Dimensions, system (L x W x H): 63 mm x 85 mm x 108 mm
SKS36-HFA0-K02
Motor feedback systems | SKS/SKM36 | SKS36-HFA0-K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: For integration | Sine/cosine periods per revolution: 128 | Safety system: no | Mechanical design: Tapered shaft, Spring mounting plate | Connection type: Male connector, 8-pin, radial | Technology: Optical | Operating temperature range: –20 °C ... +110 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
V3DX3-004BR11A
Machine vision | Ruler3000 | V3DX3-004BR11A | Product version: Ruler3004 | Working distance: 54.2 mm ... 71.8 mm | Internal lighting: Blue, laser, Visible, 450 nm, ± 10 nm | Laser class: 3R | Window material: Float glass, anti-reflective coated
IMF18-12NPPNC0S
Inductive proximity sensors | IMF | IMF18-12NPPNC0S | Housing: Standard design | Special applications: Hygienic and washdown zones, Difficult application conditions | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant to cleaning agents, Temperature resistance
WTB8-P1131
Photoelectric sensors | W8 | WTB8-P1131 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
C2MT-06614BBC03FE0
Safety light curtains | miniTwin | C2MT-06614BBC03FE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 8 m | Protective field height: 660 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso

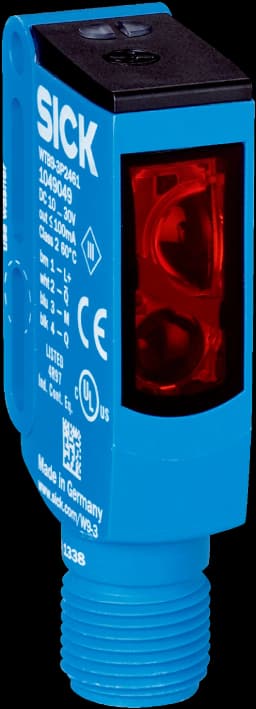

WTB9-3P2461
Photoelectric sensors | W9 | WTB9-3P2461 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
V2D8305P-1MCXXXAF0SXXXX
Machine vision | Inspector83x | V2D8305P-1MCXXXAF0SXXXX | License included: Intelligent Inspection License | Illumination color: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Working distance: 200 mm ... 2,500 mm | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus

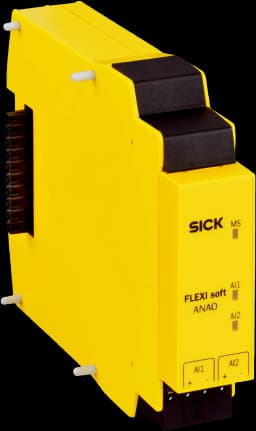

FX3-ANA020002
Safety controllers | Flexi Soft | FX3-ANA020002 | Module: Analog input module | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
YF8U14-C30UA1M8U13
Connectors and cables | Sensor-actuator cables | YF8U14-C30UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

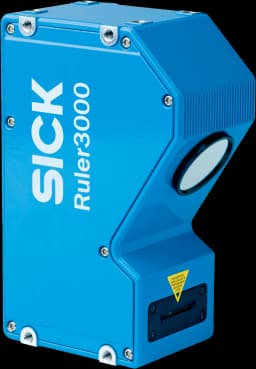

V3DX3-010BR21A
Machine vision | Ruler3000 | V3DX3-010BR21A | Product version: Ruler3010 | Working distance: 99 mm ... 145 mm | Internal lighting: Blue, laser, Visible, 450 nm, ± 10 nm | Laser class: 3R | Window material: Float glass, anti-reflective coated
