MPA-395THTP0
Cylinder sensors | MPA | MPA-395THTP0 | Measuring range: 395 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link

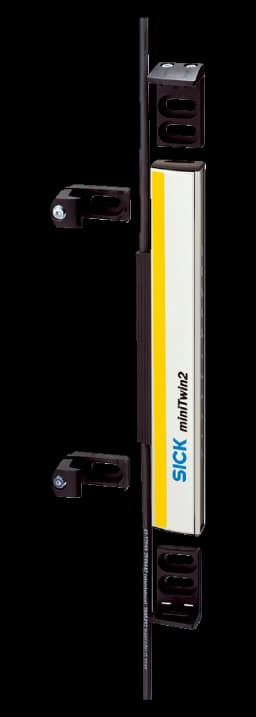

C2MT-03614BBC04DE0
Safety light curtains | miniTwin | C2MT-03614BBC04DE0 | Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 8 m | Protective field height: 360 mm | Connection type: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pi
TBS-1BSGT0506NM
Temperature sensors | TBS | TBS-1BSGT0506NM | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ½ A | Insertion length/diameter of probe: 50 mm / 6 mm | Seal: NBR | Output signal: 1 x PNP + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: -

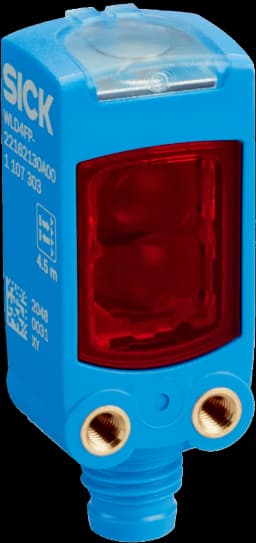

WLD4FP-213121A0ZZZ
Photoelectric sensors | W4 | WLD4FP-213121A0ZZZ | Sensing range min. / max.: 0 m / 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular
YMRJA4-100PN1MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YMRJA4-100PN1MRJA4 | Connection type head A: Male connector, RJ45, 4-pin, straight | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 10 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Zones with oils and lubricants, Drag chain operation

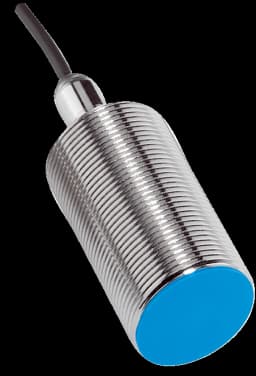

IME30-10BPSZW2S
Inductive proximity sensors | IME | IME30-10BPSZW2S | Housing: Standard design | Sensing range Sn: 10 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m

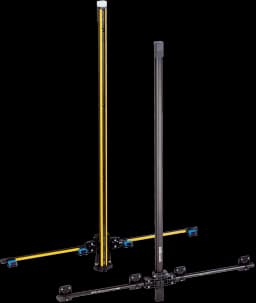

T-muting
Safety light-beam sensors | deTem | T-muting | Product version: deTem4 LT Muting A/P | Functional principle: Active/passive | System part: Muting system | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Male connector M12, 8-pin | End cap with integrated LED: yes | In
IMF18-12NPONC0S
Inductive proximity sensors | IMF | IMF18-12NPONC0S | Housing: Standard design | Special applications: Hygienic and washdown zones, Difficult application conditions | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant to cleaning agents, Visual adjustment indicator, Temperature resistance
DOL-1208G20MD25KM1
Connectors and cables | Sensor-actuator cables | DOL-1208G20MD25KM1 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 8-wire, PUR, halogen-free | Connection systems: Flying leads | Application: Drag chain operation, Zones with oils and lubricants
HSE18-P2B2BB
Photoelectric sensors | H18 Sure Sense | HSE18-P2B2BB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: Not connected | Potentiometer, right: Sensitivity | Potentiometer, left: None | Connection type: Cabl
IQ04-1B5PSKW2S
Inductive proximity sensors | IQM | IQ04-1B5PSKW2S | Sensing range Sn: 1.5 mm | Installation type: Flush | Cuboid shape (W x H x D): 8 mm x 16 mm x 4 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
WLL80P-22THY1DZZZZZ1Z1
Fiber-optic sensors | WLL80 | WLL80P-22THY1DZZZZZ1Z1 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: Push-pull: PNP/NPN, PNP, NPN: open collector | Connection type: Male connector M8, 4-pin | Type of light: Visible red light | Adjustment: Teach-in button, cable, Menu-controlled | Display: OLED display | Smart Sensor: Smart Task | Included with delivery: BEF-WLL180 mounting bracket
DFS60S-TEOK01024
Safety encoders | DFS60S Pro | DFS60S-TEOK01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Through hollow shaft 12 mm (with feather key groove) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Sine/cosine periods per revolution: 1,024 | Anti-dither: no

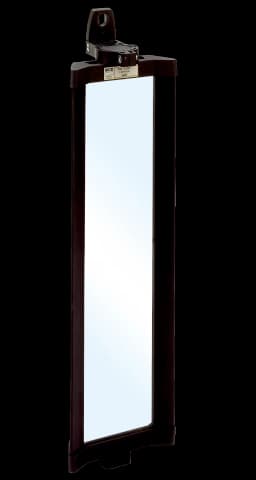

PNS75-154
Reflectors and optics | Mirror | PNS75-154 | Description: Horizontal deflection
HL18G-P4A3BL
Photoelectric sensors | H18 Sure Sense | HL18G-P4A3BL | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 3 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right:
FTMG-ISD25AXX
Flow sensors | FTMg | FTMG-ISD25AXX | Nominal width measuring tube: DN 25 | Process connection: G 1 (according to DIN ISO 228-1) | Output signal: 1x analog output 4 mA ... 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) | Connection type: M12 x 1 round connector, 5-pin, A-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.43
IHM06-02BPSVW2K
Inductive proximity sensors | IMM | IHM06-02BPSVW2K | Housing: Short-body | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
PL100
Reflectors and optics | Reflectors | PL100 | Description: Rectangular, screw connection | Dimensions: 100 mm 9.2 mm 100 mm | Ambient operating temperature: –20 °C ... +65 °C
C4P-SA13531A00, C4P-EA13531C00
Safety light curtains | deTec | C4P-SA13531A00, C4P-EA13531C00 | Product version: deTec4 | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,350 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (without extension connection or with M12 female connector, 5-pin) | Enclosure rating: IP65, IP67 | I

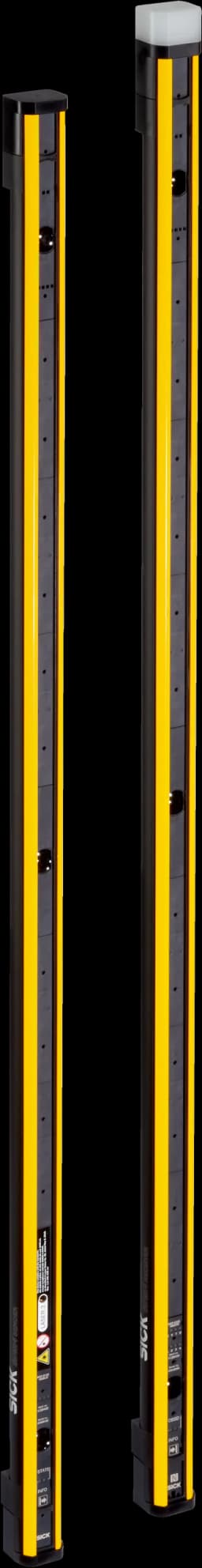

M4P-SA03400B00, M4P-EA03400D00
Safety light-beam sensors | deTem | M4P-SA03400B00, M4P-EA03400D00 | Product version: deTem4 | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Depending on system plug (M12 ma
