41538 резултата за "SICK" · стр. 73/2077
HF Transponder, rectangular, on-metal
RFID transponders | HF transponders | HF Transponder, rectangular, on-metal | Memory capacity (EPC / user memory): 896 Bit (28 x 4 Byte) (User Memory) | Dimensions (L x W x H): 12.5 mm x 25 mm x 5 mm
YF2A28-150UA6XLEAX
Connectors and cables | Sensor-actuator cables | YF2A28-150UA6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 15 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
RE27-SA10L
Safety switches | RE2 | RE27-SA10L | Systemteil: Sensor with actuator | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 1 | Connection type Detail: Cable | Length of cable: 10 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: yes

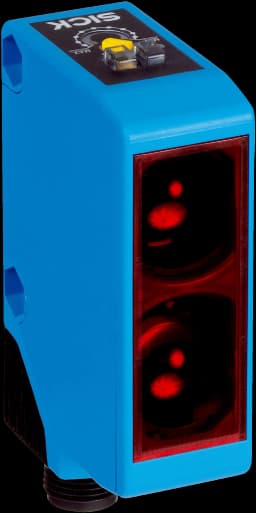

WTB250-2P2451
Photoelectric sensors | W250 | WTB250-2P2451 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: BEF-W250 mounting bracket

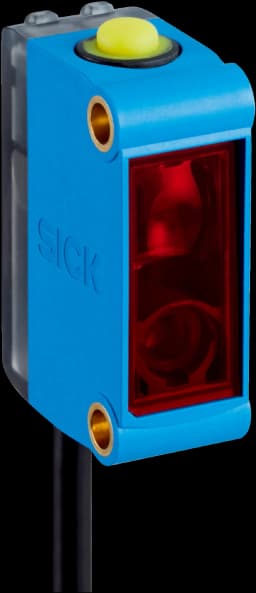

KTM-LP22182P
Contrast sensors | KTM | KTM-LP22182P | Light source: Laser | Communication interface: - | Sensing distance: 50 mm | Switching output: PNP | Light spot size: Ø 1.7 mm (50 mm) | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Cable with plug, M12, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
ARS60-FAR04096
Absolute encoders | ARS60 | ARS60-FAR04096 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 4,096 (12 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, axial, 1.5 m
MICS3-AAAZ40AZ1
Safety laser scanners | microScan3 | MICS3-AAAZ40AZ1 | Product version: microScan3 Core I/O | Model: Sensor without system plug | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12
CDF600-2100
Network devices | CDF | CDF600-2100 | Communication interface: Serial, CAN, PROFIBUS DP | Communication Interface detail: RS-232, DPV0, DPV0 | Operating voltage: 10 V DC 30 V DC | Supported products: Lector series, CLV61x - CLV65x, CLV69x, RFID read/write device, Mobile handheld scanners

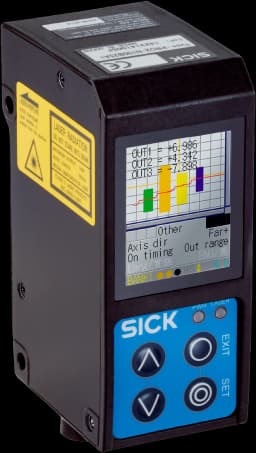

PRO2-P100B25A1
Laser distance sensors | Profiler | PRO2-P100B25A1 | Communication interface: Serial | Digital output: 3 x PNP | Type of analog output: Current output | Measuring range: 75 mm ... 125 mm | Repeatability: 25 µm, 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.3 mm x 32 mm | Housing material: Metal | Connection type: Female connector, HRS, 12-pin (I/O, power supply)
SID71
Displays | SID | SID71 | Display size: 7 ″ | Operating system: Linux Yocto | Processor: quard-core, 1.6 GHz, Arm® Cortex®-A53
GLL170T-B432
Fiber-optic sensors | GLL170 | GLL170T-B432 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP, NPN | Connection type: Cable, 4-wire | Type of light: Visible red light | Adjustment: Teach-in button, cable | Display: 7-segment, 4-digit
ACS36-L1K0-K01
Absolute encoders | ACS/ACM36 | ACS36-L1K0-K01 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 3,723 | Mechanical design: Solid shaft Servo flange 6 mm x 12.4 mm (With flat) | Communication interface: -, Voltage | Connection type: Cable, radial, 1.5 m
STE-1204-TN
Connectors and cables | Field-wireable connectors | STE-1204-TN | Description: Unshielded | Connection type head A: Male connector, M12, 4-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm² | Note: For 2 cable connections | Application: Hygienic and washdown zones
MICS3-CCAZ40AN1P01
Safety laser scanners | microScan3 | MICS3-CCAZ40AN1P01 | Product version: microScan3 Pro I/O | Model: Sensor (1133817) including system plug (2134445), pre-mounted on the underside | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12
C4C-SA07510A10000, C4C-EA07510A10000
Safety light curtains | deTec | C4C-SA07510A10000, C4C-EA07510A10000 | Product version: deTec4 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 750 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instru
IQE17-07NNSKW2S
Inductive proximity sensors | IQE | IQE17-07NNSKW2S | Sensing range Sn: 7 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 17 mm x 17 mm x 29.5 mm | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m
WTB9-3P2211
Photoelectric sensors | W9 | WTB9-3P2211 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: -
GRF18S-N234EV
Level sensors | GRF18S | GRF18S-N234EV | Communication interface: - | Process connection: G ½ | Remote amplifier: No | Output signal: 1 x NPN | Connection type: M12 round connector x 1, 4-pin | Process temperature: –10 °C ... +55 °C | Process pressure: –0.5 bar ... 20 bar | Switching mode: Normally closed | Wetted parts: EPDM, Stainless steel 1.4404 / 316L, polysulfon | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP67, IP69 | Display: no | PWIS-cleaned: no | Bluetooth: no
ANS58B-FENNB0000301000XX262144
Absolute encoders | ANS/ANM58 | ANS58B-FENNB0000301000XX262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Programming interface: Over PLC-Engineering-Tool
STE-1204-GN
Connectors and cables | Field-wireable connectors | STE-1204-GN | Description: Unshielded | Connection type head A: Male connector, M12, 4-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm² | Application: Hygienic and washdown zones
