C4C-SA04530A10000, C4C-EA04530A10000
Safety light curtains | deTec | C4C-SA04530A10000, C4C-EA04530A10000 | Product version: deTec4 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 450 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instru
YF2A15-150UB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A15-150UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 15 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

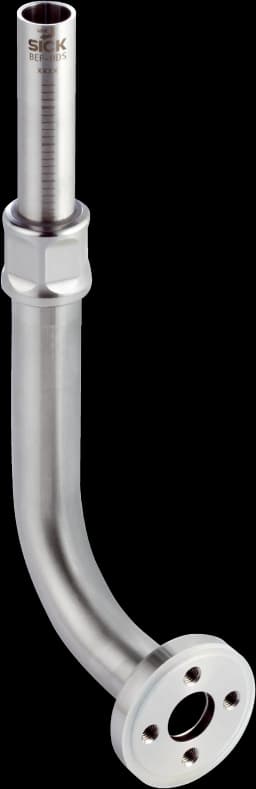

BEF-HDSTRK1WF
Mounting systems | Brackets | BEF-HDSTRK1WF | Description: Hygienic design telescopic tube bended, shorted, with shorted bayonet lock with flange | Dimensions (W x H x L): 40 mm x 97.5 mm x 76 mm | Material: Stainless steel | Details: Hygienic Design, Stainless steel V4A (1.4404, 316L), Silicone (seal) | Suitable for: Hygienic Design BeftecHD
WL12G-3O2431
Photoelectric sensors | W12G | WL12G-3O2431 | Sensing range max.: 0 m ... 4 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Potentiometer | Housing: Rectangular | Included wit
PBS2-RB016SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-RB016SG1SSDNMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 16 bar, 0 psi ... 232 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: I
RTC 3-3P
Reflectors and optics | Reflectors | RTC 3-3P | Description: Diamond Grade reflective tape, 76.2 mm x 76.2 mm x 0.8 mm, self-adhesive, abrasion-resistant, 10 pcs. | Dimensions: 76.2 mm 0.8 mm 76.2 mm | Items supplied: 10 pieces
IME12-02BPSZC0K
Inductive proximity sensors | IME | IME12-02BPSZC0K | Housing: Short-body | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin
IME2S30-12B4DC0
Safety switches | IME2S | IME2S30-12B4DC0 | Design: Cylindrical | Sensing range Sn: 12 mm | Dimensions: M30 x 71 mm | Thread length: 45.9 mm | Installation type: Flush | Connection type Detail: Male connector M12, 4-pin | Type of output: Self-monitoring semiconductor outputs (OSSDs) | Performance level: PL d

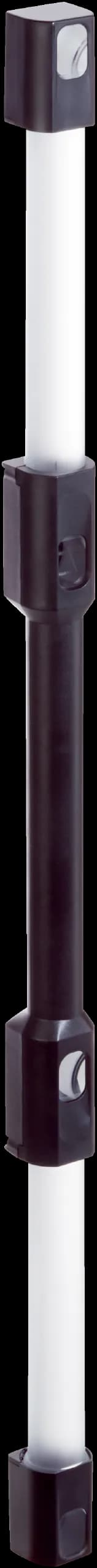

PSN02-3301
Safety light-beam sensors | deTem | PSN02-3301 | Product version: deTem4 A/P | Functional principle: Active/passive | System part: Passive unit | Application: Normal industrial environment | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 7 m | Number of beams: 4 | Beam separation: 300 mm | Integrated laser alignment aid: no | Items supplied: Passive unit
TiM561-2050101
LiDAR sensors | TiM | TiM561-2050101 | Integrated application: Output of measurement data | Measurement principle: HDDM+ | Working range: 0.05 m ... 10 m | Enclosure rating: IP67 | Digital outputs: 1 (PNP, "SYNC"/"device ready") | Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, 1 x connection “Power/Synchronization output” 5-pin, M12 male connector, 1 x Micro USB female connector, type B
FX3-MOC Y-CABLE
Connectors and cables | Y- and T-splitters | FX3-MOC Y-CABLE | Description: Shielded, Y-cable for connecting a Flexi Soft FX3-MOC motion control module with two encoders (HTL, TTL, Sin/Cos, SSI). | Connection type head A: Male connector, Micro D-Sub, 15-pin, angled | Connection type head B: Female connector, M12, 8-pin, straight, A-coded | Connection type head C: Female connector, M12, 8-pin, straight, A-coded | Cable: 0.5 m, for details see dimensional drawings, PVC and PP
YI2A14-030UB3XLEAX
Connectors and cables | Sensor-actuator cables | YI2A14-030UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 4-wire, PUR, halogen-free | Note: Only suitable for PNP sensors | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
CLV615-I2150
Fixed mount barcode scanners | CLV61x | CLV615-I2150 | Optical focus: Fixed focus | Communication interface: IO-Link, USB | Type: Rotary angle variant single port (5-pin) | Max. reading distance: 330 mm | Code resolution: 0.35 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
RAY26P-24162330A00
Photoelectric sensors | RAY26 Reflex Array | RAY26P-24162330A00 | Minimum object size: 3 mm, 5 mm, 10 mm | Detection height: 55 mm | Sensing range max.: 0 m, 0 m, 0 m ... 2 m, 3 m, 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source:
UM18-217161101
Ultrasonic distance sensors | UM18 | UM18-217161101 | Communication interface: - | Operating range, limiting range: 20 mm ... 150 mm, 250 mm | Connection type: Male connector, M12, 4-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x PNP
YMUSD4-100VG6FUSE4
Connectors and cables | Other connectors and cables | YMUSD4-100VG6FUSE4 | Description: USB, shielded | Connection type head A: Male connector, USB-A, 4-pin, straight | Connection type head B: Female connector, USB-A, 4-pin, straight | Signal type: USB | Cable: 10 m, 4-wire, PVC | Note: Used to extend the USB interface by 10 m. The cable can be extended up to 20 m by plugging in another 10 m extension.
BEF-CFSM18-FTS1
Mounting systems | Flanges and nozzles | BEF-CFSM18-FTS1 | Description: Compression fitting for T-Easic FTS, M18 x 1.5
SPZ-030-01Z-M
Shaft adaptation | Collets | SPZ-030-01Z-M | Product segment: Shaft adaptation | Product: Collets | Description: Collet for through hollow shaft, shaft diameter 1”, external diameter 30 mm
YF8U14-000S01MY8A3
Connectors and cables | Y- and T-splitters | YF8U14-000S01MY8A3 | Description: Unshielded, for splitting two signal paths and for splitting IO-Link devices | Connection type head A: Female connector, M8, 4-pin, A-coded | Connection type head B: Male connector, M8, 3-pin, A-coded | Connection type head C: Male connector, M8, 3-pin, A-coded
Polarizing filter
Reflectors and optics | Optical filters | polarizing filter | Description: Used with illumination with visible light (e.g. white). A polarizing filter is used to reduce reflections that can occur on shiny surfaces or through shiny transparent materials such as films. The filter enables better code detection or ensures more reliable inspection of shiny objects and easier setup. | Dimensions: 8.32 mm | Ambient operating temperature: –35 °C ... +50 °C
