Търсене в каталога
41538 резултата за "SICK" · стр. 67/2077

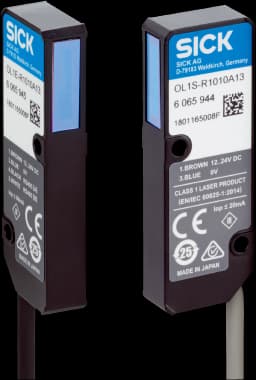

OL1S/OL1E-R1010A13
Laser distance sensors | OL1 | OL1S/OL1E-R1010A13 | Communication interface: Serial | Digital output: 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm | Repeatability: 10 µm | Laser class: 1 | Typ. light spot size (distance): 3 mm x 14 mm | Housing material: Metal | Connection type: Cable with M8 male connector, 4-pin, 300 mm, Y cable for connection to AOD1 evaluation unit
LL3-DH03
Fiber-optic sensors | Fiber-optic cables | LL3-DH03 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Brass | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer
PP4-C201110000000
Mounting systems | Device columns | PP4-C201110000000 | Model: PP4 Protective Column | Column height: 2,010.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instr
DSL-8D04G10M025KM1
Connectors and cables | Other connectors and cables | DSL-8D04G10M025KM1 | Description: Unshielded | Connection type head A: Female connector, D-Sub, 9-pin, straight | Connection type head B: Male connector, M8, 4-pin, straight | Cable: 10 m, PVC
STR1-SASF0AC5
Safety switches | STR1 | STR1-SASF0AC5 | Actuator design: Standard | Coding: Permanently coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable with plug M12, 5-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)

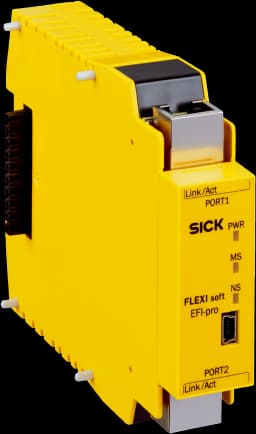

FX3-GEPR00000
Safety controllers | Flexi Soft | FX3-GEPR00000 | Module: Gateway | Configuration and diagnostics interface: Mini-USB | Fieldbus, industrial network: EFI-pro, EtherNet/IP™ CIP Safety™ | Connection type: 2 × RJ45 socket | Protective coating for more challenging ambient conditions: no
OD2-P250W150U0
Laser distance sensors | OD Value | OD2-P250W150U0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
RAY26P-24162130A00
Photoelectric sensors | RAY26 Reflex Array | RAY26P-24162130A00 | Minimum object size: 1 mm | Detection height: 20 mm | Sensing range max.: 0 m ... 1.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Teach
YG2A15-030UB5XLEAX
Connectors and cables | Sensor-actuator cables | YG2A15-030UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YF2A1B-100VH1XLEAX
Connectors and cables | Sensor-actuator cables | YF2A1B-100VH1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 12-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 12-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
i10-M0233 Lock
Safety switches | i10 Lock | i10-M0233 Lock | Locking principle: Power to release | Locking force FZh: 1,000 N | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 1 | Positive action N/C door monitoring contacts: 0
DOS-1208-W
Connectors and cables | Field-wireable connectors | DOS-1208-W | Description: Unshielded | Connection type head A: Female connector, M12, 8-pin, angled, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: 0.25 mm² ... 0.5 mm²
DBS60E-B8EP00100
Incremental encoders | DBS60 | DBS60E-B8EP00100 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
GSE6L-P4211
Photoelectric sensors | G6 | GSE6L-P4211 | Sensing range min. / max.: 0 m / 40 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
GRSE18S-P2442
Photoelectric sensors | GR18 | GRSE18S-P2442 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)

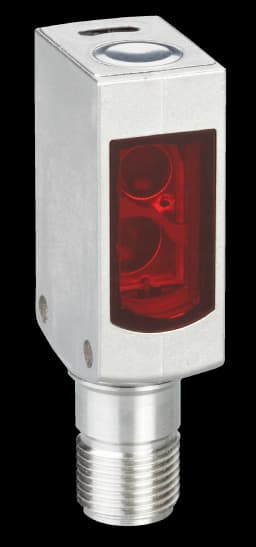

WL4S-3V2232V
Photoelectric sensors | W4 | WL4S-3V2232V | Sensing range max.: 0 m ... 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Re
GSE6-P4212
Photoelectric sensors | G6 | GSE6-P4212 | Sensing range max.: 0 m ... 15 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
SRA3-AAR190BKZI
Safety radar sensors | safeRS3 | SRA3-AAR190BKZI | Variant: safeRS3 9 m | Manufacturer designation: S201A (Model), WLSK (Type) | System part: sensor | Application: Indoor, Outdoor | Protective field range: 0.2 m ... 9 m | Number of protective fields: 128 | Field of view: 10° ... 100° (0.2 m ... 5 m) or 10° ... 40° (5 m ... 9 m), can be adjusted in 10° intervals (horizontal plane), 20° (vertical plane) | Response time: ≤ 100 ms | Safety level: PL d, SIL 2
WS/WE12L-2N410
Photoelectric sensors | W12-2 Laser | WS/WE12L-2N410 | Sensing range max.: 0 m ... 10 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Connection type: Male connector M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 2 | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
YN2D24-050PN1MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-050PN1MRJA4 | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 5 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
