41538 резултата за "SICK" · стр. 65/2077
IHM04-1B5PSVU2S
Inductive proximity sensors | IMM | IHM04-1B5PSVU2S | Housing: Standard design | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
IME08-1B5PSVC0SS15
Inductive proximity sensors | IME | IME08-1B5PSVC0SS15 | Housing: Standard design | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin
UM18-21712B212
Ultrasonic distance sensors | UM18 | UM18-21712B212 | Communication interface: IO-Link | Operating range, limiting range: 20 mm ... 150 mm, 250 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Angled | Response time: 32 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1

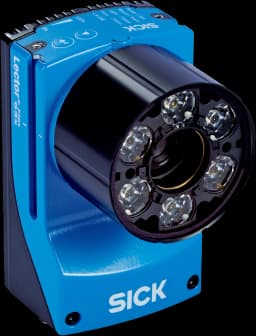

V2D632R-MKMDB4
Image-based code readers | Lector63x | V2D632R-MKMDB4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 1,600 px x 1,200 px (1.9 MP) | Illumination color: White | Focal length: 12 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
LXRH-1XXXMXXA7MAAB
Level sensors | LXRH-1 | LXRH-1XXXMXXA7MAAB | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L
SX0B-A0000J
System plugs and extension modules | System plugs S300 | SX0B-A0000J | Description: Without cable, For use of incremental encoders, integrated configuration storage
TTK50-HXJ0-K02
Motor feedback systems | TTK50 | TTK50-HXJ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
RS10-M111
Contrast sensors | RS10 | RS10-M111 | Light source: LED | Communication interface: - | Sensing distance: 13 mm | Switching output: PNP, NPN | Light spot size: 0.8 mm x 3 mm | Connection type Detail: Male connector M12, 8-pin | Housing material: Metal
YF2A13-C60UA1M8U13
Connectors and cables | Sensor-actuator cables | YF2A13-C60UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, straight, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
RLY0-ACC0500
Connectors and cables | Field-wireable connectors | RLY0-ACC0500
DBS36E-BBEJ00360
Incremental encoders | DBS36/50 | DBS36E-BBEJ00360 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 360

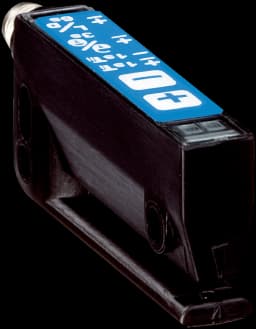

WFS3-40P415
Fork sensors | WFS | WFS3-40P415 | Adjustment: Plus/minus button, cable | Light source: LED | Type of light: Infrared light | Fork width/depth: 3 mm, 42 mm | Switching output: PNP | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 50 µs | Enclosure rating: IP65

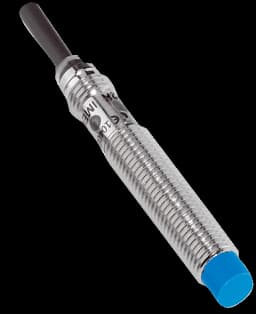

IME08-04NPSZW2S
Inductive proximity sensors | IME | IME08-04NPSZW2S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
Visionary heat sink
Device protection and care | Cooling devices | Visionary heat sink | Description: Heat sink (2-part) including screws
HSE18-B4A2BA
Photoelectric sensors | H18 Sure Sense | HSE18-B4A2BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: NPN, Light switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male
YMRJA8-020EG1MRJA8
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YMRJA8-020EG1MRJA8 | Connection type head A: Male connector, RJ45, 8-pin, straight | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, Gigabit Ethernet | Cable: 2 m, 8-wire, PUR, halogen-free | Description: Ethernet, shielded, Gigabit Ethernet | Application: Zones with oils and lubricants
IME18-08BPSZC0K
Inductive proximity sensors | IME | IME18-08BPSZC0K | Housing: Short-body | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin

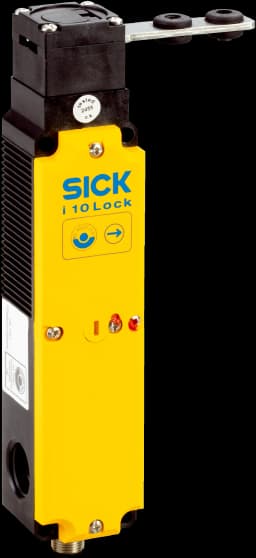

i10-E0454 Lock
Safety switches | i10 Lock | i10-E0454 Lock | Locking principle: Power to lock | Locking force FZh: 1,000 N | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: With Flexi Loop (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 1
LL3-DV01
Fiber-optic sensors | Fiber-optic cables | LL3-DV01 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection | Fiber length: 2,000 mm | Smooth sleeve diameter: 5 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)

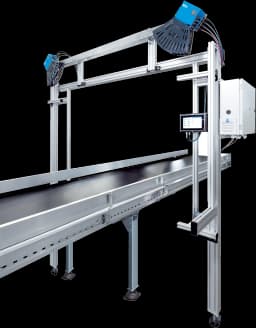

VMS5200
Track and trace systems | VMS4x00/5x00 | VMS5200 | Conveyor type: Belt conveyor | Legal-for-trade: yes | Touching objects: no | Side-by-side: no | Deformation detection: no | Transport speed: ≤ 0.1 m/s 4 m/s start-stop operation possible | Accuracy of object coverage: ± 5 mm ± 5 mm ± 2 mm, ± 0.2 ″ ± 0.2 ″ ± 0.1 ″ | Maximum object size: 5,500 mm x 1,600 mm x 1,100 mm, 216 ″ x 63 ″ x 43 ″
