Търсене в каталога
41538 резултата за "SICK" · стр. 62/2077
GL10-P4211
Photoelectric sensors | G10 | GL10-P4211 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
IMB08-04NPPVC0S
Inductive proximity sensors | IMB | IMB08-04NPPVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance

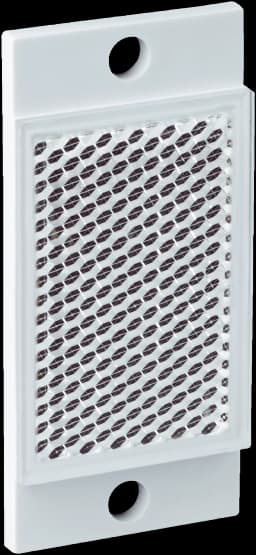

PL19F
Reflectors and optics | Reflectors | PL19F | Description: Fine triple reflector, screw connection, suitable for laser sensors | Dimensions: 43 mm 3.5 mm | Ambient operating temperature: –30 °C ... +50 °C
BEF-KHS-KH3
Mounting systems | Brackets | BEF-KHS-KH3 | Description: Universal bar clamp for mounting bars with 12 mm diameter | Material: Zinc diecast | Details: Zinc diecast | Items supplied: Without mounting plate and screws
UHF Transponder, Smart Label, global
RFID transponders | UHF transponders | UHF Transponder, Smart Label, global | Carrier frequency: 865 MHz ... 928 MHz | Memory capacity (EPC / user memory): 448/2048 Bit (EPC / User Memory) | Dimensions (L x W x H): 27 mm x 97 mm x 0.2 mm
BEF-MS12L-S04
Mounting systems | Brackets | BEF-MS12L-S04 | Description: Mounting bar, L-shaped, 150 mm x 350 mm | Material: Steel | Details: Steel, zinc coated
TBS-1IES41506CE
Temperature sensors | TBS | TBS-1IES41506CE | Temperature measuring range: –20 °C ... +120 °C | Process connection: Compression fitting G ¼ A | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Copper | Output signal: 2 x NPN + 4 mA ... 20 mA | Connection type: Round connector M12 x 1, 5-pin | Enclosure rating: IP65, IP67 | Communication interface: -

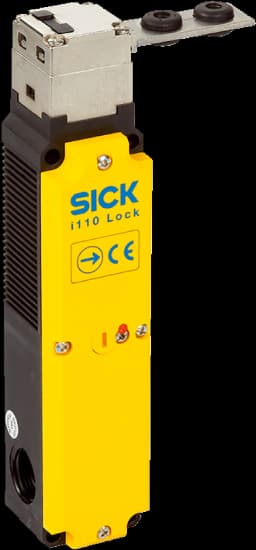

i110-E0253
Safety switches | i110 Lock | i110-E0253 | Locking principle: Power to lock | Locking force FZh: 2,000 N | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 0
DBS36E-S3EL02048
Incremental encoders | DBS36/50 | DBS36E-S3EL02048 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 2,048
DFS60E-S4EM02048
Incremental encoders | DFS60 | DFS60E-S4EM02048 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 2,048

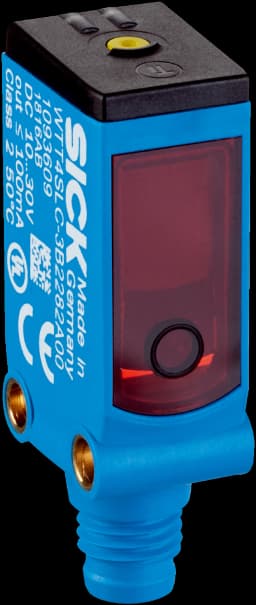

WTT4SLC-3B2262A00
Laser distance sensors | WTT4 PowerProx | WTT4SLC-3B2262A00 | Product version: PowerProx Mini Distance | Sensing range max.: 50 mm ... 1,300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient commun
MLP1-SMUA0AC
Safety switches | MLP1 | MLP1-SMUA0AC | Note: Consists of sensor and actuator | Coding: Uniquely coded | Connection type Detail: Cable with plug M12, 5-pin | Safe series connection: None, only individual wiring (with diagnostics)

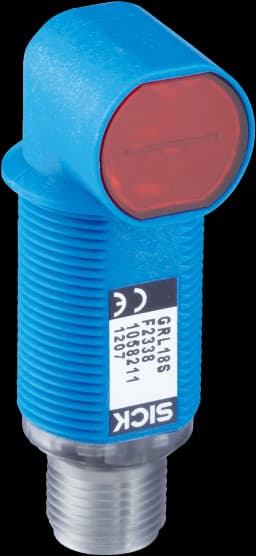

GRL18S-F2338
Photoelectric sensors | GR18 | GRL18S-F2338 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (2 x)
UHF Transponder, Rectangular, On-Metal & High-Temp, ETSI
RFID transponders | UHF transponders | UHF Transponder, Rectangular, On-Metal & High-Temp, ETSI | Carrier frequency: 865 MHz ... 868 MHz | Special features: High Temperature | Memory capacity (EPC / user memory): 128/496 Bit (EPC / User Memory) | Dimensions (L x W x H): 55 mm x 36.2 mm x 7.5 mm
SBO-02G12-SM
Connectors and cables | Y- and T-splitters | SBO-02G12-SM | Description: Unshielded, for connecting an MLG-1 & MLG-2 to a controller | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 5-pin, A-coded | Connection type head C: Male connector, M12, 4-pin, A-coded
IQE17-05NNSKW2S
Inductive proximity sensors | IQE | IQE17-05NNSKW2S | Sensing range Sn: 5 mm | Installation type: Non-flush | Cuboid shape (W x H x D): 17 mm x 17 mm x 29.5 mm | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m
GTB6SP-21A1116EZZZ
Photoelectric sensors | G6 | GTB6SP-21A1116EZZZ | Sensing range min. / max.: 5 mm / 400 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular

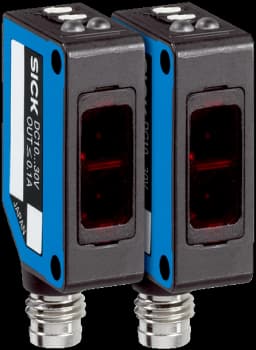

WS/WE100L-F2231
Photoelectric sensors | W100 | WS/WE100L-F2231 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: - | Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
DS500-N511
Laser distance sensors | Dx500 | DS500-N511 | Communication interface: - | Measuring range: 0.2 m ... 70 m, 90% remission factor, 0.2 m ... 30 m, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 150 ms | Digital output: 2 x NPN | Multifunctional input (MF): NPN

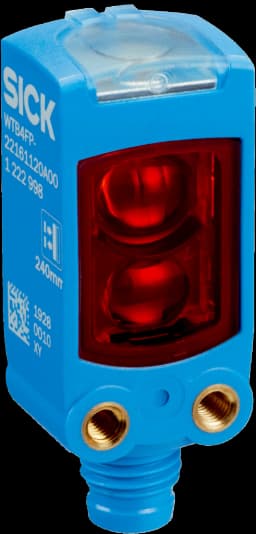

WTB4FP-213111A0ZZZ
Photoelectric sensors | W4 | WTB4FP-213111A0ZZZ | Sensing range min. / max.: 28 mm / 165 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, MultiPulse | Switching output: Push-pull: PNP/NPN | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: MultiPulse: sensor with self-monitoring, fixed sensing range 28 … 165 mm | Ho
