41538 резултата за "SICK" · стр. 61/2077

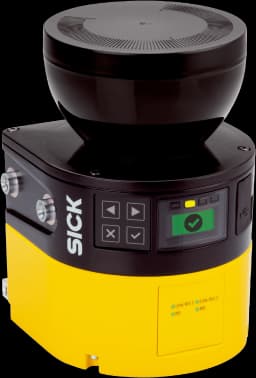

MICS3-CCAZ90AN1P01
Safety laser scanners | microScan3 | MICS3-CCAZ90AN1P01 | Product version: microScan3 Pro I/O | Model: Sensor (1133821) including system plug (2134445), pre-mounted on the underside | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 9 m | Collision protection field range: 19 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12
WTB4S-3P2462V
Photoelectric sensors | W4 | WTB4S-3P2462V | Sensing range max.: 4 mm ... 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular
IQ10-03BPSKR8S
Inductive proximity sensors | IQB | IQ10-03BPSKR8S | Sensing range Sn: 3 mm | Installation type: Flush | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug M8, 3-pin, with knurled nut, 0.2 m

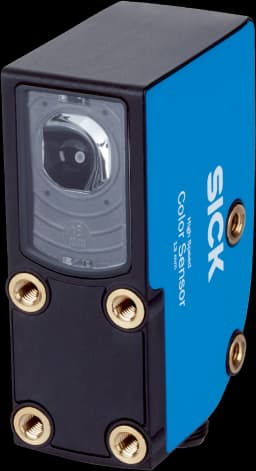

CSX-WBF114128AA10Z
Color sensors | CSS/CSX High Speed | CSX-WBF114128AA10Z | Light source: LED | Housing design: Large | Communication interface: IO-Link | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 2 mm x 4 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M12, 8-pin
VL180-2P42436
Photoelectric sensors | V180 | VL180-2P42436 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Reflector P250, fastening nuts (2 x)
DL100-22AA2112
Laser distance sensors | Dx100 | DL100-22AA2112 | Communication interface: PROFINET | Measuring range: 0.15 m ... 200 m, on “diamond grade” reflective tape | Laser class: 2 | Light source: Laser, red | Minimum response time: 2 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x MF1
V2D8505P-1MCXXXAF0SXXXX
Machine vision | Inspector85x | V2D8505P-1MCXXXAF0SXXXX | License included: Quality Inspection License | Illumination: To be ordered separately as accessories | Lens: To be ordered separately as accessories, C-mount | Working distance: 500 mm ... 2,500 mm | Sensor resolution: 2,464 px x 2,048 px (5 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus

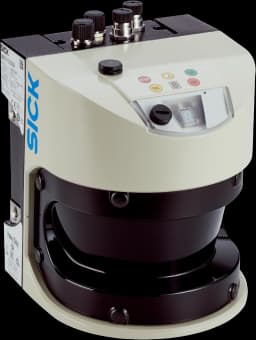

LMS511-12100S08 Heavy Duty
LiDAR sensors | LMS5xx | LMS511-12100S08 Heavy Duty | Working range: 0.2 m ... 80 m | Resolution power: Standard Resolution | Enclosure rating: IP65, IP67 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, output of measurement data | Connection type: 4 x M12 round connector (stainless steel) | Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
VTE180-2P42487
Photoelectric sensors | V180 | VTE180-2P42487 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)

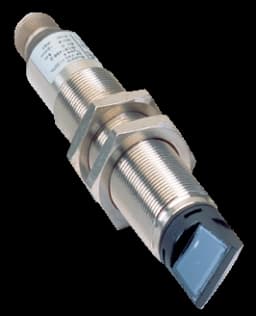

L40S-11MA1A
Safety light-beam sensors | L4000 Systems | L40S-11MA1A | System part: Sender | Safety level: PL e, SIL 3, Type 4 | Scanning range: 7 m | Diameter: M18 | Light source: LED | Type of light: Visible red light | Optical axis: Radial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
Y8A34A2-C2A8000XXX
Connectors and cables | Passive distribution boxes | Y8A34A2-C2A8000XXX | Number of slots: 4 | Slot connection type: M8, 3-pin, A-coded, female connector | Items supplied: 5 x labeling plates | Description: Unshielded
C4P-SA12011C00, C4P-EA12011D00
Safety light curtains | deTec | C4P-SA12011C00, C4P-EA12011D00 | Product version: deTec4 | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 2.5 m | Protective field height: 1,200 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (without extension connection or with M12 female connector, 5-pin) | End cap with integrated LED: ye
ANM58B-BINNA000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BINNA000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 16 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
DBS60E-S4EC02500
Incremental encoders | DBS60 | DBS60E-S4EC02500 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,500 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4

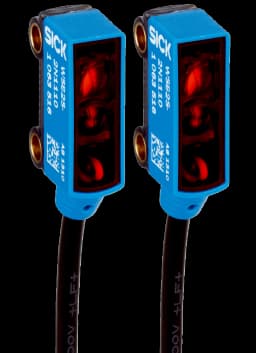

WSE2S-2F3130
Photoelectric sensors | W2 | WSE2S-2F3130 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
MICS3-ABAZ55PZ1P01
Safety laser scanners | microScan3 | MICS3-ABAZ55PZ1P01 | Product version: microScan3 Core - PROFINET | Model: Sensor (1100405) including system plug (2086102), pre-mounted on the underside | Integration in the control system: PROFINET PROFIsafe | Protective field range: 5.5 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12

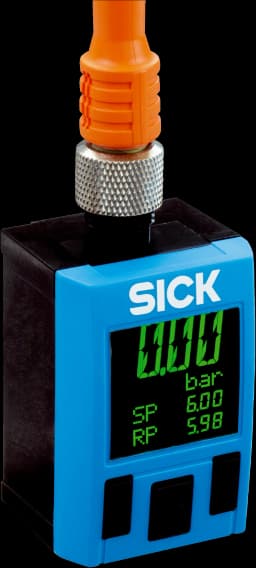

PAC50-AGD
Pressure sensors | PAC50 | PAC50-AGD | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 2 x G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: IO-Link | Output signal: IO-Link/PNP + PNP/NPN/Push-Pull | Connection type: M12 round connector x 1, 4-pin, IP65, I
OLM100-1201
OLM | OLM100-1201 | Communication interface: SSI | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
Mounting bracket
Mounting systems | Brackets | Mounting bracket | Description: Bracket with adapter board
YM12U14-2550K4051A
Connectors and cables | Field-wireable connectors | YM12U14-2550K4051A | Description: Sensor/actuator cable | Connection type head A: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Connection systems: IDC quick connection | Permitted cross-section: 0.25 mm² ... 0.5 mm² | Application: Zones with oils and lubricants
