HL18T-A4A3BH
Photoelectric sensors | H18 Sure Sense | HL18T-A4A3BH | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 3 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right:
BEF-WK-RESOL-L
Mounting systems | Assembly accessories | BEF-WK-RESOL-L | Description: Servo clamps, small, for servo flange ACS/ACM36, DBS36, scope of delivery: 2 servo clamp, 2 cylinder head screws | Items supplied: Without mounting hardware
WL9G-3F2232
Photoelectric sensors | W9 | WL9G-3F2232 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Adjustment: Teach-in button | Communication interface: -
SFM60-HMAT1K02
Motor feedback systems | SFS/SFM60 | SFM60-HMAT1K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
PBS2-RB2X5SG1SSDQ5A0Z
Pressure sensors | PBS plus | PBS2-RB2X5SG1SSDQ5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 2.5 bar, 0 psi ... 36 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: I
VLR-210BR5111
Reflectors and optics | Illuminations | VLR-210BR5111 | Description: Bar Light | Light source: LED, white 5,500 K | LED class: Risk group 1 (low risk, IEC62471 : 2008) | Connection types: Connector M12, 4-pin, L = 0.5 m | Ambient operating temperature: 0 °C ... +40 °C
DT50-N1114
Laser distance sensors | Dx50 | DT50-N1114 | Measuring range: 200 mm ... 10,000 mm, 90% remission factor, 200 mm ... 6,500 mm, 18% remission factor, 200 mm ... 4,000 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 20 ms | Digital output: 1 x NPN | Type of analog output: Voltage output | Multifunctional input (MF): 1 x
PBT-RB060SG1NSNAMA0Z
Pressure sensors | PBT | PBT-RB060SG1NSNAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.3 mm pressure port | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Con
PBS2-RB060SN1SS0Q5A0Z
Pressure sensors | PBS plus | PBS2-RB060SN1SS0Q5A0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 60 bar, 0 psi ... 870 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-
DFS60A-THEK32768
Incremental encoders | DFS60 | DFS60A-THEK32768 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 32,768
LFP0440-A5NMC
Level sensors | LFP Cubic | LFP0440-A5NMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 440 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes | P
M4C-SX0430LA10
Safety light-beam sensors | deTem | M4C-SX0430LA10 | Product version: deTem4 Core Ex II 3GD | Functional principle: Sender/receiver | System part: Sender | Application: Explosive areas | Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc, ATEX for dust: II 3D Ex tc IIIC T135°C Dc | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 17 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no |
C2C-SA19530A10000, C2C-EA19530A10000
Safety light curtains | deTec | C2C-SA19530A10000, C2C-EA19530A10000 | Product version: deTec2 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,950 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting inst
DBS60E-TGCPD1024
Incremental encoders | DBS60 | DBS60E-TGCPD1024 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
MLG02A-0745R53201
Automation light grids | MLG-2 | MLG02A-0745R53201 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: Protective housing IP69K | Beam separation: 2.5 mm | Operating range: 1.5 m | Detection height: 745 mm | Length of cable: 0.39 m, 0.39 m | Response time: 24.3 ms | Software feature (default setting - see technical data/features): 01
BTF13-I1BM0599
Wire draw encoders | HighLine | BTF13-I1BM0599 | Measuring range: 0 m ... 5 m | Communication interface: EtherNet/IP™ | Supply voltage: 10 V DC ... 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 EtherNet/IP, AFM60A-S1IB018X12, 1055331 | Mounted mechanic: MRA-F130-105D2, 6028626 | Programmable/configurable: yes
DFS25A-B4P11065536
Incremental encoders | DFS2x | DFS25A-B4P11065536 | Mechanical design: Solid shaft Servo flange 10 mm x 19 mm (With flat) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, axial | Pulses per revolution: 65,536
IQ40-20BDSKK0S
Inductive proximity sensors | IQG | IQ40-20BDSKK0S | Special applications: Difficult application conditions | Sensing range Sn: 20 mm | Installation type: Flush | Cuboid shape (W x H x D): 40 mm x 40 mm x 118 mm | Electrical wiring: DC 2-wire | Output function: NO | Connection type: Cable gland
C4P-SG12031A00, C4P-EG12031D00
Safety light curtains | deTec | C4P-SG12031A00, C4P-EG12031D00 | Product version: deTec4 HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,200 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (witho

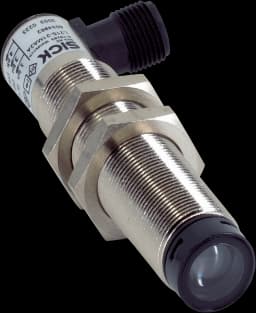

L21S-21MA2A
Safety light-beam sensors | L21 | L21S-21MA2A | System part: Sender | Safety level: PL c, SIL 1, Type 2 | Scanning range: 16 m | Diameter: M18 | Light source: LED | Type of light: Visible red light | Optical axis: Axial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
