SRM50-HWV0-K21
Motor feedback systems | SRS/SRM50 | SRM50-HWV0-K21 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Solid shaft, face mount flange | Connection type: Cable, 8-wire, radial, 1.5 m | Technology: Optical | Operating temperature range: –30 °C ... +85 °C
PBT-AB1X0SG1SSNAMA0Z
Pressure sensors | PBT | PBT-AB1X0SG1SSNAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
PBT-RB016SG4SSCVLC0Z
Pressure sensors | PBT | PBT-RB016SG4SSCVLC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Copper | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type: L
AFM60E-THTM004096
Absolute encoders | AFS/AFM60 SSI | AFM60E-THTM004096 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Cable, 12-wire, radial, 5 m
GRSE18-P1142
Photoelectric sensors | GR18 | GRSE18-P1142 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)

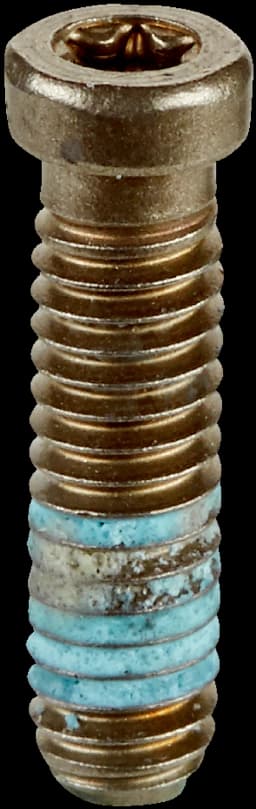

BEF-MK-S08
Mounting systems | Assembly accessories | BEF-MK-S08 | Description: Screws with Precote 85-8 coating; M4*14 | Packing unit: 500 pieces
RT-N3221
Photoelectric sensors | ZoneControl | RT-N3221 | Product version: R | Sensing range max.: 60 mm 900 mm | Functional principleDropdown: Photoelectric proximity sensor | Functional principle detailDropdown: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector
AFM60I-S4KL262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-S4KL262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 3 m | Encoder material / Enclosure rating: Stainless steel V2A / IP67
YG2A15-030VB5XLEAX
Connectors and cables | Sensor-actuator cables | YG2A15-030VB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
VTF180-2N42412
Photoelectric sensors | V180 | VTF180-2N42412 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
IRT-P212E40
Photoelectric sensors | ZoneControl | IRT-P212E40 | Product version: IR | Sensing range max.: 60 mm 900 mm | Functional principleDropdown: Photoelectric proximity sensor | Functional principle detailDropdown: Background suppression | Switching output: PNP | Connection type: Male connector
IM18-20NPS-VC1
Inductive proximity sensors | IMI | IM18-20NPS-VC1 | Special applications: Zones with coolants and lubricants, Difficult application conditions | Special features: Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator
ARS60-J4B00400
Absolute encoders | ARS60 | ARS60-J4B00400 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 400 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, axial
MLG50N-2050P10501
Automation light grids | MLG-2 | MLG50N-2050P10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 50 mm | Operating range: 5 m | Detection height: 2,050 mm | Length of cable: 0.22 m, 0.21 m | Response time: 4.6 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S1AA04096
Incremental encoders | DFS60 | DFS60B-S1AA04096 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 4,096
PBT-RB6X0SGTSSNA2A0Z
Pressure sensors | PBT | PBT-RB6X0SGTSSNA2A0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
RSB1-0424C125087PF3CZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0424C125087PF3CZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 424 mm | Number of beams: 3 | Beam separation: 125 mm | Switching output: PNP | Connection type: Cable with connector M8, 4-pin, with knurled nut | Length of cable: 300 mm | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised)
MAX48A-12D01T10052
Linear encoders | MAX | MAX48A-12D01T10052 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Connecting cable, 4-wire, 300 mm | Measuring range: 0 mm ... 52 mm
DFS60E-S1AK02000
Incremental encoders | DFS60 | DFS60E-S1AK02000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,000
AFS60S-BESC262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BESC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 12 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Male connector, M12, 12-pin, radial
