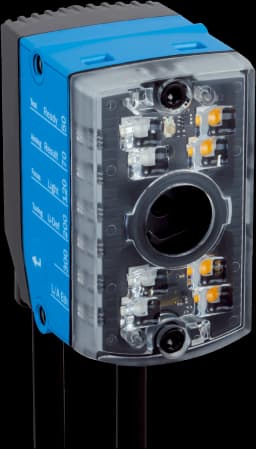

V2D611D-MMSBE4
Image-based code readers | Lector61x | V2D611D-MMSBE4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Illumination color: Amber, blue | Focal length: 6 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
BEF-KHZ-RC-20
Mounting systems | Brackets | BEF-KHZ-RC-20 | Description: Mounting bracket on round body cylinder with piston diameter of 20 mm, ambient temperature min 0 °C max 50 °C | Material: Plastic, Aluminum | Details: Plastic, Aluminum | Packing unit: 1 piece | Suitable for: C-slot

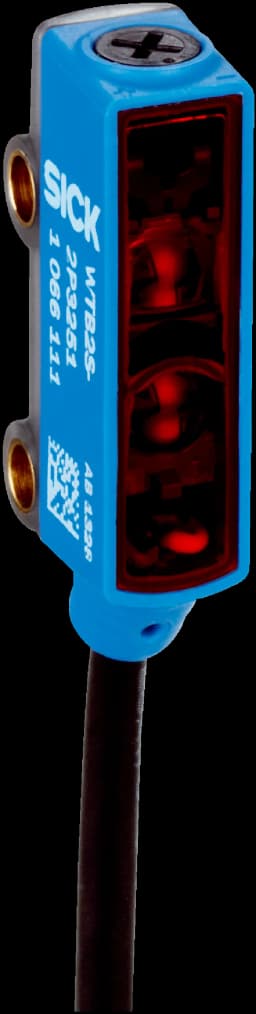

WTB2S-2P3251
Photoelectric sensors | W2 | WTB2S-2P3251 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
BEF-1SHABBKU2
Mounting systems | Brackets | BEF-1SHABBKU2 | Description: FlexFix mounting kit for 1 device, e.g. sender or receiver (FlexFix bracket, alignment tool and assembly materials for installation in PU3H device columns) | Material: Plastic | Details: Plastic | Packing unit: 2 pieces
IMR12-04BPSTC0S
Inductive proximity sensors | IMR | IMR12-04BPSTC0S | Housing: Standard design | Special applications: Welding range, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Reduction factor 1, Magnetic-field-resistant
LL3-TB01
Fiber-optic sensors | Fiber-optic cables | LL3-TB01 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141)
DT35-B15851
Laser distance sensors | Dx35 | DT35-B15851 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
IMB12-04BPSVC0K
Inductive proximity sensors | IMB | IMB12-04BPSVC0K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
YF2L15-050UH1XLEAX
Connectors and cables | Power cables | YF2L15-050UH1XLEAX | Description: Power, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, L-coded | Connection type head B: Flying leads | Signal type: Power | Cable: 5 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

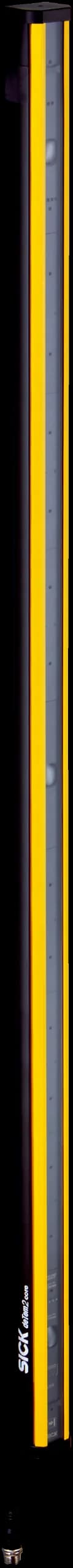

M2C-EA03400A10
Safety light-beam sensors | deTem | M2C-EA03400A10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Receiver | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Number of beams: 3 | Beam separation: 400 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Receiver, safety instruction, Mounting instructions, Operating instruc
WTB12-3P2411
Photoelectric sensors | W12-3 | WTB12-3P2411 | Sensing range max.: 20 mm ... 600 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Infrared light | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
OLM100-1001
OLM | OLM100-1001 | Communication interface: SSI | Repeatability: 1 mm | Max. movement speed: 4 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
PBT-RB6X0SG1SFFUMA0Z
Pressure sensors | PBT | PBT-RB6X0SG1SFFUMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 0 V ... 5 V, 3-wire | Connection type:
BEF-AH-DX50
Mounting systems | Brackets | BEF-AH-DX50 | Description: Alignment unit | Material: Steel | Details: Steel, zinc coated | Items supplied: Mounting hardware for the sensor included
DOS-1205-G
Connectors and cables | Field-wireable connectors | DOS-1205-G | Description: Unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm²

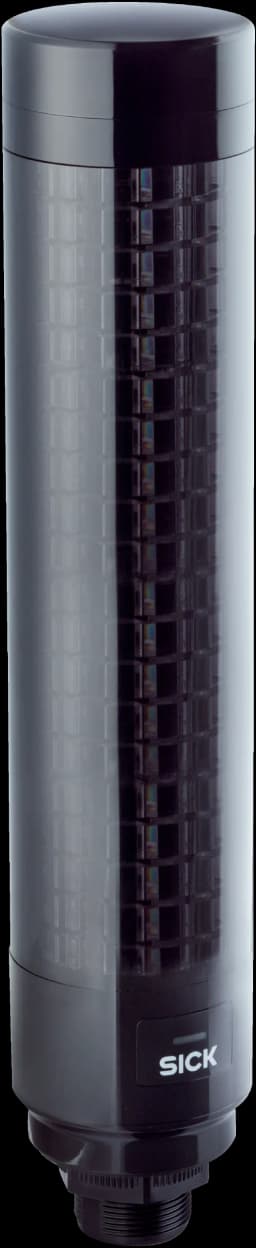

SLT060-0B010J700
Signal transmitters | Optical signal transmitters | SLT060-0B010J700 | Description: IO-Link signal lamp | Enclosure rating: IP65

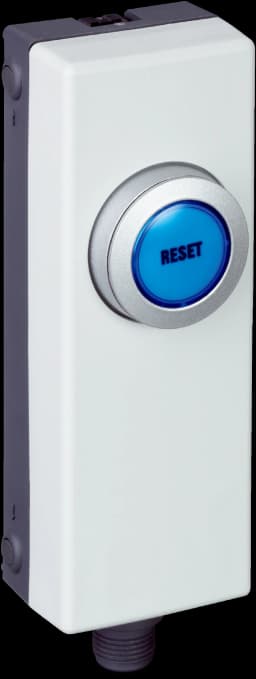

ER12-SB3C4
Safety switches | ER12 | ER12-SB3C4 | Switch type: Reset pushbutton | N/O contacts: 1 | Connection type Detail: Plug connector, M12, 4-pin | Suitable for muting applications (with UE403): no | Suitable for reset/override applications (with deTec4): no | Suitable for muting applications (with DMM4): no | Items supplied: Including retaining clip and "RESET" cover
MICS3-AAAZ90AZ1P01
Safety laser scanners | microScan3 | MICS3-AAAZ90AZ1P01 | Product version: microScan3 Core I/O | Model: Sensor (1089325) including system plug (2073156) | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 9 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12
V2D621R-2MSFBB5
Image-based code readers | Lector62x | V2D621R-2MSFBB5 | Variant: Complete device | Optical focus: Teach auto focus | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Illumination color: Red, blue | Focal length: 9.6 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)

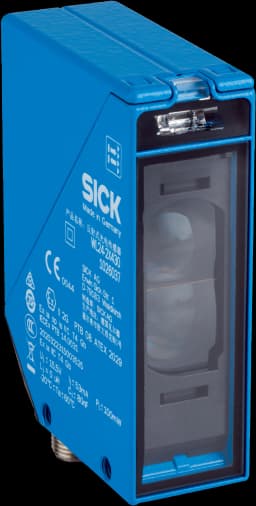

WL24-2X430
Photoelectric sensors | W24 | WL24-2X430 | Sensing range max.: 0 m ... 22 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NAMUR | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer | Info: ATEX II 2G Ex ia op is IIC T4 Gb according to directive 2014/34/EU PTB 08 ATEX 2029 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the or
