AHM36A-BACK014x12
Absolute encoders | AHS/AHM36 | AHM36A-BACK014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: CANopen, programmable | Connection type: Cable, 5-wire, universal, 1.5 m | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool
TSP-1PAN40305MZ
Temperature sensors | TSP | TSP-1PAN40305MZ | Temperature measuring range: –30 °C ... +130 °C | Process connection: Thread ¼'' NPT | Insertion length/diameter of probe: 30 mm / 5 mm | Seal: Without seal | Output signal: Pt100, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
DAXLON-2500B10D0001600
Linear encoders | DAX | DAXLON-2500B10D0001600 | Design: DAX Low Profile | Communication interface: CANopen | Baud rate: 500 kbit/s | Node ID: 7Fh (127) | Connection type: Male connector, M12, 5-pin | Resolution: 100 µm | Measurement range: 0 mm ... 2,500 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
BEF-MS12Z-C
Mounting systems | Brackets | BEF-MS12Z-C | Description: Mounting bar, Z-shaped, 100 mm x 150 mm x 200 mm, steel | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware
DBS60E-R3FA00100
Incremental encoders | DBS60 | DBS60E-R3FA00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-R5EJC1024
Incremental encoders | DBS60 | DBS60E-R5EJC1024 | Mechanical design: Through hollow shaft 12 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
PBT-RB060SG1SSNVMC0Z
Pressure sensors | PBT | PBT-RB060SG1SSNVMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 60 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type:
SLG50S-080SAR21D2D
Automation light grids | SLG-2 | SLG50S-080SAR21D2D | Optical light exit: Slim | Beam separation: 50 mm | Operating range: 3.5 m | Detection height: 800 mm | Length of cable: 150 mm
Alignment aid for PLB
Commissioning aids and test equipment | Alignment aids | Alignment aid for PLB | Description: Tool for aligning the PLB coordinate system with the robot
LL3-DK21
Fiber-optic sensors | Fiber-optic cables | LL3-DK21 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 500 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer
V2D632R-MKSEB8
Image-based code readers | Lector63x | V2D632R-MKSEB8 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 1,600 px x 1,200 px (1.9 MP) | Illumination color: White | Focal length: 17.5 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
PBT-RB010SGESSCALA0Z
Pressure sensors | PBT | PBT-RB010SGESSCALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Copper | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type:
SLG25S-020SAR21D2D
Automation light grids | SLG-2 | SLG25S-020SAR21D2D | Optical light exit: Slim | Beam separation: 25 mm | Operating range: 3.5 m | Detection height: 200 mm | Length of cable: 150 mm
WL4SL-3P3432
Photoelectric sensors | W4 | WL4SL-3P3432 | Sensing range max.: 0 m ... 12 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug M12, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Teach-in button | Housing: Rectangula
DFS60B-S1EK01200
Incremental encoders | DFS60 | DFS60B-S1EK01200 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,200
IME12-08NNSZW2S
Inductive proximity sensors | IME | IME12-08NNSZW2S | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m
IME08-04NPOZW2S
Inductive proximity sensors | IME | IME08-04NPOZW2S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m
MAX48N-71V10MA0350
Linear encoders | MAX | MAX48N-71V10MA0350 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 350 mm | Output signal: 0.5 V DC ... 4.5 V DC
Lens
Reflectors and optics | Lenses | Lens | Description: Exchangeable lens, focal length 2.5 mm

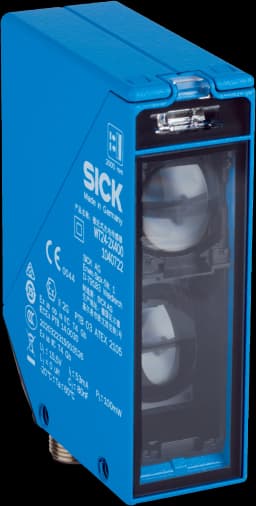

WT24-2X400
Photoelectric sensors | W24 | WT24-2X400 | Sensing range max.: 40 mm ... 2,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NAMUR | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer | Info: ATEX II 2G Ex ia op is IIC T4 Gb according to directive 2014/34/EU PTB 03 ATEX 2105 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we wo
