Търсене в каталога
41538 резултата за "SICK" · стр. 432/2077
SFS60-HLKT1K02
Motor feedback systems | SFS/SFM60 | SFS60-HLKT1K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
DFS60B-TECK04096
Incremental encoders | DFS60 | DFS60B-TECK04096 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 4,096
KTS-WB81141142ZZZZ
Contrast sensors | KTS | KTS-WB81141142ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 1.2 mm x 3.9 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M12, 4-pin | Teach-in mode: 2-point teach-in, teach-in dynamic | Delivery status: 2-point teach-in | Housing material: Plastic

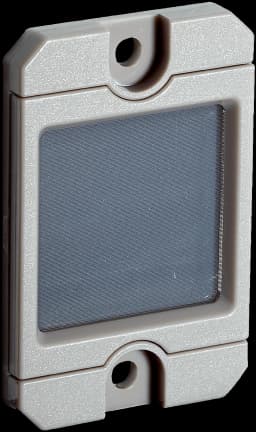

P41F
Reflectors and optics | Reflectors | P41F | Description: Reflector with microprismatic reflex tape REF-AC1000, suitable for laser sensors, see alignment note | Dimensions: 29 mm 5 mm 45 mm | Ambient operating temperature: –30 °C ... +60 °C
MLG10S-2090A10501
Automation light grids | MLG-2 | MLG10S-2090A10501 | Device version: Prime - Standard functionality | Inputs/outputs: 2 x analog + 1 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 2,090 mm | Length of cable: 0.22 m, 0.22 m | Response time: 23.3 ms | Software feature (default setting - see technical data/features): 01
SAS4-F028P3PS2W00
Automation light grids | SLG | SAS4-F028P3PS2W00 | Optical light exit: Flat | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 280 mm | Response time: 19 ms
IME12-08NPOZW6S
Inductive proximity sensors | IME | IME12-08NPOZW6S | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 6 m
DFS60B-BFWA06000
Incremental encoders | DFS60 | DFS60B-BFWA06000 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 6,000
DFS60B-TECA08192
Incremental encoders | DFS60 | DFS60B-TECA08192 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 8,192
HSE18L-F4B5BAA00
Photoelectric sensors | H18 Sure Sense | HSE18L-F4B5BAA00 | Device version: IO-Link | Communication interface: IO-Link | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 60 m | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Potentiometer, right: None | Potentiometer, lef
WL9-3P2232S09
Photoelectric sensors | W9 | WL9-3P2232S09 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Adjustment: Teach-in button | Communication interface: -
WL12GC-3P2472A71
Photoelectric sensors | W12G | WL12GC-3P2472A71 | Sensing range max.: 0 m ... 4 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: IO-Link, Teach-in button | Communicati
WTB4S-3N2162V
Photoelectric sensors | W4 | WTB4S-3N2162V | Sensing range max.: 4 mm ... 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular
THTS-1PAC30256MZ
Temperature sensors | THTS | THTS-1PAC30256MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Clamp (ISO 2852) DN 25, DN 33.7, DN 38 | Insertion length/diameter of probe: 25 mm / 6 mm | Seal: Without seal | Output signal: Pt100, 4-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67, IP69 | Communication interface: -
IME30-10BPOZW2S
Inductive proximity sensors | IME | IME30-10BPOZW2S | Housing: Standard design | Sensing range Sn: 10 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m
WTV4FE-5G3111A0ZZZ
Photoelectric sensors | W4 | WTV4FE-5G3111A0ZZZ | Sensing range min. / max.: 4 mm / 22 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, V-optics | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 3 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: Sensing range preset: 22 mm | Housing: Rectangula
IME08-06NNOZC0S
Inductive proximity sensors | IME | IME08-06NNOZC0S | Housing: Standard design | Sensing range Sn: 6 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Triple sensing range
DBS60E-TBFJC1024
Incremental encoders | DBS60 | DBS60E-TBFJC1024 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
ARS60-HAA32768
Absolute encoders | ARS60 | ARS60-HAA32768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, radial
YG2A14-150VB3XLEAX
Connectors and cables | Sensor-actuator cables | YG2A14-150VB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 15 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
