SLG10S-060FER21A00
Automation light grids | SLG-2 | SLG10S-060FER21A00 | Optical light exit: Flat | Beam separation: 10 mm | Operating range: 1.5 m | Detection height: 600 mm | Length of cable: 150 mm
C4000 Basic adapter kit for deTec4
Mounting systems | Brackets | C4000 Basic adapter kit for deTec4 | Description: Adapter kit for easy exchange of C4000 Basic with deTec4 with system plug 2076834 (functional scope SP1; system connection M12, 8-pin; without extension connection). | Items supplied: All electrical and mechanical adapters for exchanging sender and receiver (4 brackets and 2 cables).
AFM60S-TASN262144
Safety encoders | AFS/AFM60S Pro | AFM60S-TASN262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 6 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, radial, 10 m
DBS60E-B7EP00100
Incremental encoders | DBS60 | DBS60E-B7EP00100 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-S1AC05000
Incremental encoders | DFS60 | DFS60B-S1AC05000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000
KTS-WP91141152ZZZZ
Contrast sensors | KTS | KTS-WP91141152ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: PNP | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: Teach-in dynamic | Housing material: Plastic
PBS2-RB1X0SG1SSDLMA0Z
Pressure sensors | PBS plus | PBS2-RB1X0SG1SSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 1 bar, 0 psi ... 15 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal: IO-
DFS60E-THEA01000
Incremental encoders | DFS60 | DFS60E-THEA01000 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,000
Additional front screen
Device protection and care | Front screens and front screen protection | Additional front screen | Description: Front screen protection set (protects sensors from damage by flying sparks and welding beads) | Items supplied: Incl. sliding nuts and fastening screws
PBSH-RB2X5ST1S0NMA0Z
Pressure sensors | PBS Hygienic | PBSH-RB2X5ST1S0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP + 4 mA ... 20 mA |
MAX48N-32JFDFC0390
Linear encoders | MAX | MAX48N-32JFDFC0390 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: SAE J1939 | Connection type: Male connector, M12 type L (24x24 mm), 5-pin | Measuring range: 0 mm ... 390 mm
TSP-1MAN40405MZ
Temperature sensors | TSP | TSP-1MAN40405MZ | Temperature measuring range: –30 °C ... +130 °C | Process connection: Thread ¼'' NPT | Insertion length/diameter of probe: 40 mm / 5 mm | Seal: Without seal | Output signal: Pt1000, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
DBS60E-R1FJC1024
Incremental encoders | DBS60 | DBS60E-R1FJC1024 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
MLG20N-1940P10502
Automation light grids | MLG-2 | MLG20N-1940P10502 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 1,940 mm | Length of cable: 0.22 m, 0.21 m | Response time: 8.9 ms | Software feature (default setting - see technical data/features): 02
DBS60E-RFEPD1024
Incremental encoders | DBS60 | DBS60E-RFEPD1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
DFS60B-TFWA06000
Incremental encoders | DFS60 | DFS60B-TFWA06000 | Mechanical design: Through hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 6,000
PBT-CB025SG1SSNVMC0Z
Pressure sensors | PBT | PBT-CB025SG1SSNVMC0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 24 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection ty
AFM60I-S1RK262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-S1RK262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: SSI, SSI + incremental, programmable | Connection type: Cable, 12-wire, radial, 1.5 m | Programming interface: Over handheld programming tool | Encoder material / Enclosure rating: Stainless steel V2A / IP67
AFM60B-TEAM008192
Absolute encoders | AFS/AFM60 SSI | AFM60B-TEAM008192 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 5 m

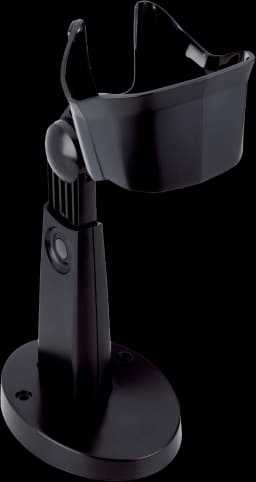

Stand mount
Mounting systems | Assembly accessories | Stand mount | Description: Adjustable stand, grey, weighted base plate, plastic (Zebra STND-AS0036-07) for ZS36xx
