AFS60S-SHSI262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SHSI262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, axial, 0.5 m
WLA16P-2416L100A00
Photoelectric sensors | W16 | WLA16P-2416L100A00 | Sensing range min. / max.: 0 m / 10 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Communication in
IME18-08NPOZC0S
Inductive proximity sensors | IME | IME18-08NPOZC0S | Housing: Standard design | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Male connector M12, 4-pin
PBT-RB2X5AG1SSNVLC0Z
Pressure sensors | PBT | PBT-RB2X5AG1SSNVLC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection typ
DBS60E-RJAAD1024
Incremental encoders | DBS60 | DBS60E-RJAAD1024 | Mechanical design: Through hollow shaft 5/8″ (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
TBS-1NSGT0256NM
Temperature sensors | TBS | TBS-1NSGT0256NM | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ½ A | Insertion length/diameter of probe: 25 mm / 6 mm | Seal: NBR | Output signal: IO-Link/PNP + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: IO-Link
AFS60S-BASC262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BASC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 6 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Male connector, M12, 12-pin, radial
DFS25A-A4A13001000
Incremental encoders | DFS2x | DFS25A-A4A13001000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422, non programmable | Connection type: Male connector, MS, 7-pin, axial | Pulses per revolution: 1,000
DFS60B-BFAC05000
Incremental encoders | DFS60 | DFS60B-BFAC05000 | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 5,000
MLG05S-0145D10504
Automation light grids | MLG-2 | MLG05S-0145D10504 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 5 m | Detection height: 145 mm | Length of cable: 0.22 m, 0.22 m | Response time: 6.1 ms | Software feature (default setting - see technical data/features): 04
DFS60B-BDCC01024
Incremental encoders | DFS60 | DFS60B-BDCC01024 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024
C4MT-09014ABB04FE0
Safety light curtains | miniTwin | C4MT-09014ABB04FE0 | Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 5 m | Protective field height: 900 mm | Connection type: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pi
M4C-SX0430HA10, M4C-EX04300A10
Safety light-beam sensors | deTem | M4C-SX0430HA10, M4C-EX04300A10 | Product version: deTem4 Core Ex II 3GD | Functional principle: Sender/receiver | System part: Pair | Application: Explosive areas | Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc, ATEX for dust: II 3D Ex tc IIIC T135°C Dc | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 90 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Plug, M12, 5-pin | Integrated laser align
DFS60A-BBUA01200
Incremental encoders | DFS60 | DFS60A-BBUA01200 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,200
EKS36-0KF0B018A
Motor feedback systems | EKS/EKM36 | EKS36-0KF0B018A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 18 bit | Safety system: no | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Technology: Optical | Operating temperature range: –20 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
C2MT-10834BBC04FE0
Safety light curtains | miniTwin | C2MT-10834BBC04FE0 | Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 34 mm | Scanning range: 8 m | Protective field height: 1,080 mm | Connection type: Plug, M12, 5-pin | Extension connection: Female connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2
GTB2F-F5141
Photoelectric sensors | G2 | GTB2F-F5141 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -

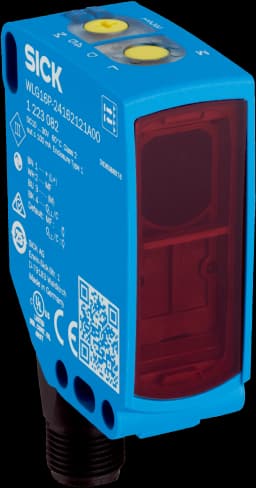

WLG16P-24162121A00
Photoelectric sensors | W16 | WLG16P-24162121A00 | Sensing range min. / max.: 0 m / 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), ClearSens | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in bu
IMB08-04NNSVC0S
Inductive proximity sensors | IMB | IMB08-04NNSVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
DFS60B-TECM03600
Incremental encoders | DFS60 | DFS60B-TECM03600 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 3,600
