41538 резултата за "SICK" · стр. 413/2077
MZT8-2V6PSTKWB
Cylinder sensors | MZT8 | MZT8-2V6PSTKWB | Connection type: Cable, 3-wire, ferrules, 5 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
LFV230-XXHCLTPV0123
Level sensors | LFV200 | LFV230-XXHCLTPV0123 | Communication interface: - | Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm) | Probe length: 123 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
SFS60-HRBB1K02
Motor feedback systems | SFS/SFM60 | SFS60-HRBB1K02 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Male connector, M12, 8-pin, radial | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
DFS60B-BEWA00512
Incremental encoders | DFS60 | DFS60B-BEWA00512 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 512
LFV230-XAHCNTPM1000
Level sensors | LFV200 | LFV230-XAHCNTPM1000 | Communication interface: - | Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm) | Probe length: 1,000 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no

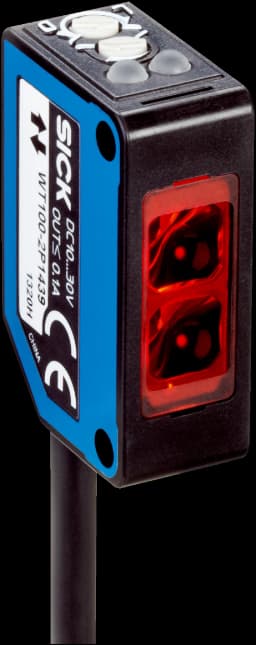

WT100-2N1439
Photoelectric sensors | W100 | WT100-2N1439 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A
DFS60E-S4CM00512
Incremental encoders | DFS60 | DFS60E-S4CM00512 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 512
AHM36B-S4QC012x12
Absolute encoders | AHS/AHM36 | AHM36B-S4QC012x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing
DAXLON-0150B4080001900
Linear encoders | DAX | DAXLON-0150B4080001900 | Design: DAX Low Profile | Communication interface: CANopen | Baud rate: 1,000 kbit/s | Node ID: 7Fh (127) | Connection type: Male connector, M12, 5-pin | Resolution: 10 µm | Measurement range: 0 mm ... 150 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
MAX48N-12A10AC0156
Linear encoders | MAX | MAX48N-12A10AC0156 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 156 mm
DBS36E-S3CK00360
Incremental encoders | DBS36/50 | DBS36E-S3CK00360 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 360
DBS60I-S4FM00512
Incremental encoders | DBS60 | DBS60I-S4FM00512 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 512 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
Additional front screen
Device protection and care | Front screens and front screen protection | Additional front screen | Description: Front screen protection set (protects sensors from damage by flying sparks and welding beads) | Items supplied: Incl. sliding nuts and fastening screws | Suitable for: M40x-0522xxxxx
PBST-RB100SG1SSFQMA0Z
Pressure sensors | PBST | PBST-RB100SG1SSFQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ A (ISO 1179-2) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: FKM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely scal
LFP1800-A4NMB
Level sensors | LFP Cubic | LFP1800-A4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 1,800 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes |
YM2A24-C60UB4XLEAX
Connectors and cables | Sensor-actuator cables | YM2A24-C60UB4XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 0.6 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DBS60E-S1AK01000
Incremental encoders | DBS60 | DBS60E-S1AK01000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
YG8U13-050UB1XLEAX
Connectors and cables | Sensor-actuator cables | YG8U13-050UB1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DFS60B-TGUA05000
Incremental encoders | DFS60 | DFS60B-TGUA05000 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 5,000
DFS60E-TGAC02048
Incremental encoders | DFS60 | DFS60E-TGAC02048 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
