DFS60B-BEEA03600
Incremental encoders | DFS60 | DFS60B-BEEA03600 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 3,600
PBS2-AB010SF2FSDLMA0Z
Pressure sensors | PBS plus | PBS2-AB010SF2FSDLMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 10 bar, 0 psi ... 145 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B flush mounted | Pressure port: Front-flush membrane | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link |

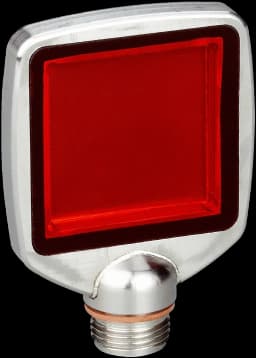

PLH25-M12
Reflectors and optics | Reflectors | PLH25-M12 | Description: Stainless steel reflector, hygienic design, chemically resistant, Enclosure rating IP 69K, M12-adapter thread, PMMA front screens | Dimensions: 25 mm | Ambient operating temperature: –20 °C ... +60 °C
SDL connecting cable
Connectors and cables | Other connectors and cables | SDL connecting cable | Description: Shielded | Connection type head A: Male connector, M23, 12-pin, straight | Connection type head B: Flying leads | Cable: 2.5 m, 6-wire | Connection systems: Flying leads | Note: For the connection of safety bus modules to S3000 | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
DAXSAN-1200SA000900E00
Linear encoders | DAX | DAXSAN-1200SA000900E00 | Design: DAX Slider | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,200 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Slide magnet MAG-S-H29-01
ZTE18-DPZ4A2
Photoelectric sensors | Z18 Simple Sense | ZTE18-DPZ4A2 | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric proximity sensor, Energetic | Sensing range: 700 mm | Light source, light type: PinPoint LED, visible red light | Switching output Q1: PNP, Light switching | Switching output Q2: Not connected | Connection type: Male connector M12, 4-pin
DBS60E-BHFPC1024
Incremental encoders | DBS60 | DBS60E-BHFPC1024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-TGEC04096
Incremental encoders | DBS60 | DBS60E-TGEC04096 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 4,096 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
MAX48N-11V10BA0400
Linear encoders | MAX | MAX48N-11V10BA0400 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 12 V DC (+8 V DC ... +16 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 400 mm | Output signal: 0.5 V DC ... 4.5 V DC
SLG25S-020SAR11D30
Automation light grids | SLG-2 | SLG25S-020SAR11D30 | Optical light exit: Slim | Beam separation: 25 mm | Operating range: 3.5 m | Detection height: 200 mm | Length of cable: 150 mm
DFS60B-BHEA00080
Incremental encoders | DFS60 | DFS60B-BHEA00080 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 80
DBS60E-T4CAC1024
Incremental encoders | DBS60 | DBS60E-T4CAC1024 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin

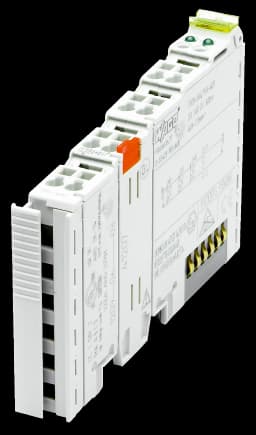

I/O extension module, 2 digital inputs
Integration modules and adapters | Interface modules | I/O extension module, 2 digital inputs | Description: I/O extension module to extend the number of digital inputs in combination with I/O extension box. Number of digital inputs: 2, only to use with 6037654
YG2A14-010UB3XLEAX
Connectors and cables | Sensor-actuator cables | YG2A14-010UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DBS60E-S1AQ01024
Incremental encoders | DBS60 | DBS60E-S1AQ01024 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
WTB9M4-3N1161
Photoelectric sensors | W9 | WTB9M4-3N1161 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
MLG25A-1475R10801
Automation light grids | MLG-2 | MLG25A-1475R10801 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 25 mm | Operating range: 8.5 m | Detection height: 1,475 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 5.9 ms | Software feature (default setting - see technical data/features): 01
YF2A24-C50UB4M2A24
Connectors and cables | Sensor-actuator cables | YF2A24-C50UB4M2A24 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.5 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
LFV230-XXSGATPV0130
Level sensors | LFV200 | LFV230-XXSGATPV0130 | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 130 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
DBS60E-REAJ00100
Incremental encoders | DBS60 | DBS60E-REAJ00100 | Mechanical design: Through hollow shaft 12 mm (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
