41538 резултата за "SICK" · стр. 40/2077
ANM58B-BFNNB000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BFNNB000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Programming interface: Over PLC-Engineering-Tool
GRL18-P2437
Photoelectric sensors | GR18 | GRL18-P2437 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)

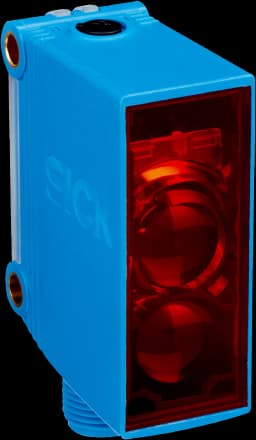

GL10-P4111
Photoelectric sensors | G10 | GL10-P4111 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: -
YF2A14-020UB3XLEAX
Connectors and cables | Sensor-actuator cables | YF2A14-020UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
V2D8301P-1CCICXAF1SXXXX
Machine vision | Inspector83x | V2D8301P-1CCICXAF1SXXXX | License included: Quality Inspection License | Illumination: Integrated | Illumination color: White | Lens: 12 mm, C-mount | Working distance: 200 mm ... 2,500 mm | Sensor resolution: 1,232 px x 1,024 px (1.3 MP) | Sensor: CMOS Color | Optical focus: Adjustable focus
UM30-214118
Ultrasonic distance sensors | UM30 | UM30-214118 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
DFS60S-BEOC01024
Safety encoders | DFS60S Pro | DFS60S-BEOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Blind hollow shaft 12 mm (with feather key) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M12, 8-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
DLS40E-BEGV01024
Incremental encoders | DLS40 | DLS40E-BEGV01024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 1,024
UFS3-37B417
Fork sensors | UFS | UFS3-37B417 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Fork width/depth: 2.6 mm, 42.5 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 1.1 kHz | Response time: ≤ 440 µs | Enclosure rating: IP65
VTE180-2P42442
Photoelectric sensors | V180 | VTE180-2P42442 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
FTMG-ESD15AXX
Flow sensors | FTMg | FTMG-ESD15AXX | Nominal width measuring tube: DN 15 | Process connection: G ½ (according to DIN ISO 228-1) | Output signal: OPC UA, MQTT, integrated web server, REST API | Connection type: 1 x M12 round connector, 8-pin, X-coded | Housing material: PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 | Communication interface: MQTT | Process temperature: –20 °C ... +60 °C | Display: yes | Enclosure rating: IP65, IP67 | Calibration certificate: no

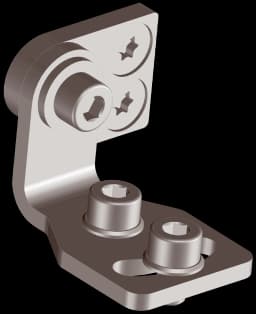

Mounting bracket
Mounting systems | Brackets | Mounting bracket | Description: Bracket with adapter board
MZ2Q-CSLPSKR0
Cylinder sensors | MZ2Q-C | MZ2Q-CSLPSKR0 | Preferred manufacturer slot: SMCBimbaSchunk | Connection type: Cable with plug, M8, 4-pin, with knurled screws, 0.3 m | Output function: 2 x N/O contact, IO-Link | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication | Communication interface: IO-Link

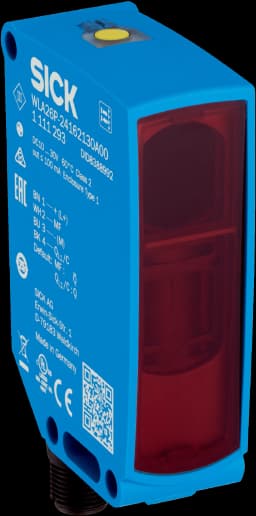

WLA26P-24862130A00
Photoelectric sensors | W26 | WLA26P-24862130A00 | Sensing range min. / max.: 0 m / 18 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link | Communica

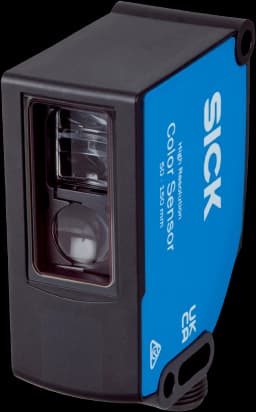

CSS-WBG4C4118AA10Z
Color sensors | CSS High Resolution | CSS-WBG4C4118AA10Z | Light source: LED | Housing design: Small | Communication interface: IO-Link | Sensing distance: 150 mm | Switching output: Push-pull: PNP/NPN | Light spot size: Ø 3.5 mm ... 6.5 mm | Light spot direction: Round | Light emission: Long side of housing | Connection type Detail: Male connector M12, 8-pin
YF2A15-100VB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A15-100VB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 5-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DAXSAN-0350SA000900D00
Linear encoders | DAX | DAXSAN-0350SA000900D00 | Design: DAX Slider | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 350 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 25 mm / 63 mm | Magnet type: Slide magnet MAG-S-H29-01
i16-SA203
Safety switches | i16S | i16-SA203 | System part: sensor | Positive action N/C contacts: 2 | N/O contacts: 0 | Housing material: Plastic | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Retaining force: 30 N
TTK50-HXQ0-K02
Motor feedback systems | TTK50 | TTK50-HXQ0-K02 | Communication interface: HIPERFACE® | Resolution: 1 µm | Safety system: no | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 2 m | System part: Read head | System accuracy: ± 10 µm | Technology: Magnet-coded
i10-E0453 Lock
Safety switches | i10 Lock | i10-E0453 Lock | Locking principle: Power to lock | Locking force FZh: 1,000 N | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 2
