Търсене в каталога
41538 резултата за "SICK" · стр. 398/2077
PBT-RB2X5AG1SSFAMA0Z
Pressure sensors | PBT | PBT-RB2X5AG1SSFAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
DFS60B-THCN02000
Incremental encoders | DFS60 | DFS60B-THCN02000 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 2,000
DFS60A-BGAC16384
Incremental encoders | DFS60 | DFS60A-BGAC16384 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 16,384
LFP0700-G7DMC
Level sensors | LFP Inox | LFP0700-G7DMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 700 mm | Probe type: Rod probe in hygienic design | Remote amplifier: Yes, length of cable 3.3 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +180 °C | Process pressure: –1 bar ... 16 bar | Housing design: With closed cover | Wetted parts: Stainless steel 1.4404 / 316L,
DBS60E-BHELD1024
Incremental encoders | DBS60 | DBS60E-BHELD1024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
IME08-03BPOZC0S
Inductive proximity sensors | IME | IME08-03BPOZC0S | Housing: Standard design | Sensing range Sn: 3 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Triple sensing range
DBS60E-R7EKE1024
Incremental encoders | DBS60 | DBS60E-R7EKE1024 | Mechanical design: Through hollow shaft 14 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slots, screw hole circle radius 32.25–142.75 mm
AFM60S-S4KB262144
Safety encoders | AFS/AFM60S Pro | AFM60S-S4KB262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M23, 12-pin, axial
PBT-RB6X0AG1SSNVMC0Z
Pressure sensors | PBT | PBT-RB6X0AG1SSNVMC0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 6 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection type:
DFS60B-BHEC01024
Incremental encoders | DFS60 | DFS60B-BHEC01024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024

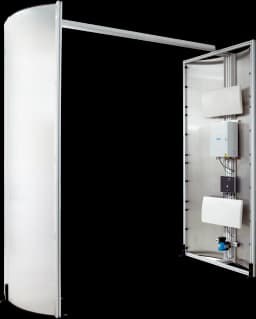

RFGS
Track and trace systems | RF Identification System | RFGS | Tag detection: Single tag reading, Bulk reading | Conveyor type: Industrial trucks
AFS60B-TGAC016384
Absolute encoders | AFS/AFM60 SSI | AFS60B-TGAC016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial
YF8U24-C30UB4M8U24
Connectors and cables | Sensor-actuator cables | YF8U24-C30UB4M8U24 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M8, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DFS60S-SDOC01024
Safety encoders | DFS60S Pro | DFS60S-SDOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M12, 8-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
IMS12-04BNONU2S
Inductive proximity sensors | IMS | IMS12-04BNONU2S | Special applications: Mobile machines, Hygienic and washdown zones, Difficult application conditions | Special features: Resistant to cleaning agents, Temperature resistance
THTS-1AAT50256MZ
Temperature sensors | THTS | THTS-1AAT50256MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Tri-clamp ½", ¾" | Insertion length/diameter of probe: 25 mm / 6 mm | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67, IP69 | Communication interface: -
DFS60E-TBAC02048
Incremental encoders | DFS60 | DFS60E-TBAC02048 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
LFV230-XASNBTPM0130
Level sensors | LFV200 | LFV230-XASNBTPM0130 | Communication interface: - | Process connection: ¾" NPT PN 64 | Probe length: 130 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
DBS60E-R3EA00100
Incremental encoders | DBS60 | DBS60E-R3EA00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
ARS60-F1M18000
Absolute encoders | ARS60 | ARS60-F1M18000 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 18,000 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 5 m
