CLV622-0000
Fixed mount barcode scanners | CLV62x | CLV622-0000 | Optical focus: Fixed focus | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Cable connection variant | Max. reading distance: 200 mm | Code resolution: 0.15 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
PBT-RB400SM2SS0AMA0Z
Pressure sensors | PBT | PBT-RB400SM2SS0AMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: M20 x 1.5 (DIN 16288) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Co
WSE16P-39112100ZZZ
Photoelectric sensors | W16 | WSE16P-39112100ZZZ | Sensing range min. / max.: 0 m / 45 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with Q6 male connector, 6-pin, DC-coded, 298 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Housing: Rectangular
AFS60A-S4AC016384
Absolute encoders | AFS/AFM60 SSI | AFS60A-S4AC016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial
DBS60E-S4EQ00100
Incremental encoders | DBS60 | DBS60E-S4EQ00100 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
PBS2-AB025SN1SS0NMA0Z
Pressure sensors | PBS plus | PBS2-AB025SN1SS0NMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 25 bar, 0 psi ... 363 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal:

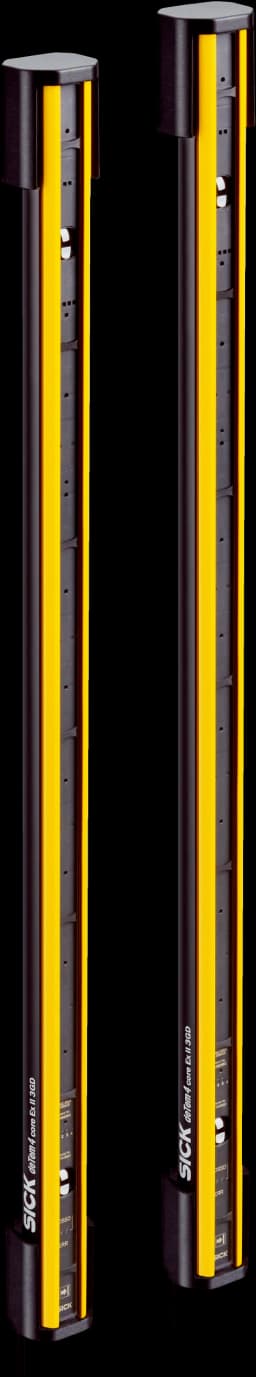

M4C-SX0340HA10, M4C-EX03400A10
Safety light-beam sensors | deTem | M4C-SX0340HA10, M4C-EX03400A10 | Product version: deTem4 Core Ex II 3GD | Functional principle: Sender/receiver | System part: Pair | Application: Explosive areas | Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc, ATEX for dust: II 3D Ex tc IIIC T135°C Dc | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Plug, M12, 5-pin | Integrated laser align
DFS60B-S4AC10000
Incremental encoders | DFS60 | DFS60B-S4AC10000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 10,000
DFS60B-BHEA00002
Incremental encoders | DFS60 | DFS60B-BHEA00002 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2
DBS60E-TEFC00100
Incremental encoders | DBS60 | DBS60E-TEFC00100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-TBCA07200
Incremental encoders | DFS60 | DFS60B-TBCA07200 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 7,200
DBS60E-THEK01024
Incremental encoders | DBS60 | DBS60E-THEK01024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TJFK00060
Incremental encoders | DBS60 | DBS60E-TJFK00060 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 60 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
IME30-20BNSZW2S
Inductive proximity sensors | IME | IME30-20BNSZW2S | Housing: Standard design | Sensing range Sn: 20 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
RSB1-0561E085105PZ3GZZZP0B
Photoelectric sensors | Roller Sensor Bar | RSB1-0561E085105PZ3GZZZP0B | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 561 mm | Number of beams: 5 | Beam separation: 85 mm | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 4-pin, with knurled nut | Length of cable: 2 m | Light source: LED | Type of light: Infrared light | Housing ma
DFS60B-BDAA00002
Incremental encoders | DFS60 | DFS60B-BDAA00002 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2
DFS60A-THMA65536
Incremental encoders | DFS60 | DFS60A-THMA65536 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 65,536
ANS58B-TENNA000000500AXX262144
Absolute encoders | ANS/ANM58 | ANS58B-TENNA000000500AXX262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
LL3-TS07
Fiber-optic sensors | Fiber-optic cables | LL3-TS07 | Functional principle: Through-beam system | Fiber-optic head design: Smooth sleeve | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: FC fiber cutter (5304141)
AFM60E-TETL004096
Absolute encoders | AFS/AFM60 SSI | AFM60E-TETL004096 | Singleturn or multiturn version: Multiturn | Max. resolution: 12 bit x 12 bit (4,096 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Cable, 12-wire, radial, 3 m
