TIM310-1030000
LiDAR sensors | TiM | TIM310-1030000 | Integrated application: Field evaluation | Measurement principle: HDDM+ | Working range: 0.05 m ... 4 m | Number of field sets: 16 | Enclosure rating: IP65 | Digital outputs: 3 (PNP, additional 1 x “Device Ready”) | Connection type: 1 x 15-pin D-sub HD male connector (0.9 m)
ANM58B-BHNNA000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BHNNA000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool

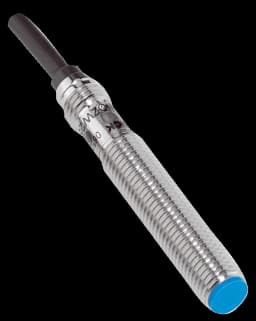

IME08-02BPSZW2S
Inductive proximity sensors | IME | IME08-02BPSZW2S | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
HSE18-B4A2AA
Photoelectric sensors | H18 Sure Sense | HSE18-B4A2AA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: NPN, Light switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male
LFP0500-A4NMB
Level sensors | LFP Cubic | LFP0500-A4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 500 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes | P

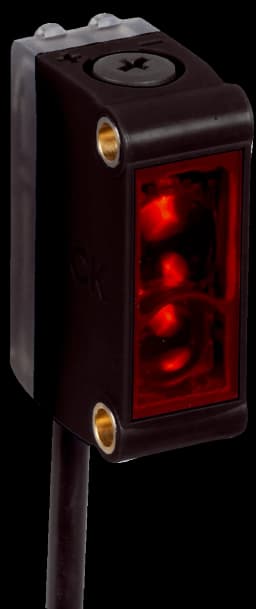

GTB6-P7441S56
Photoelectric sensors | G6 | GTB6-P7441S56 | Sensing range max.: 5 mm ... 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with plug, M12, 4-pin, 300 mm | Light source: LED | Type of light: Infrared light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular
V2D8305P-1MCIBXAF1SXXXX
Machine vision | Inspector83x | V2D8305P-1MCIBXAF1SXXXX | License included: Intelligent Inspection License | Illumination: Integrated | Illumination color: White | Lens: 8 mm, C-mount | Working distance: 200 mm ... 2,500 mm | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus

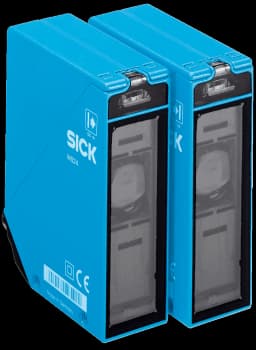

WS/WE24-2R230
Photoelectric sensors | W24 | WS/WE24-2R230 | Sensing range max.: 0 m ... 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
KUP-1012-B
Shaft adaptation | Shaft couplings | KUP-1012-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: 10 mm / 12 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs

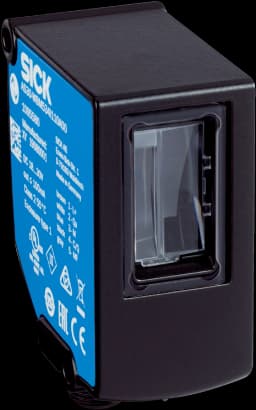

AS30-WBM314I220A00
Array sensors | AS30 | AS30-WBM314I220A00 | Communication interface: IO-Link | Sensor principle: Proximity system, Reflector mode | Functional principle: Web guiding, positioning, Width measurement, Center point measurement | Principle of operation (default): Width measurement | Light source: LED | Measuring range / sensing distance: 30 mm / 25 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.03 mm | Switching frequency: 500 Hz | Analog outp

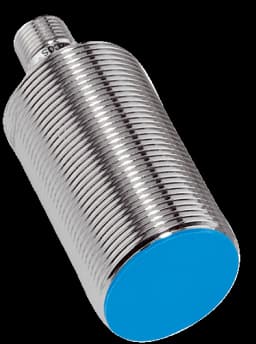

IME30-15BPPZC0S
Inductive proximity sensors | IME | IME30-15BPPZC0S | Housing: Standard design | Sensing range Sn: 15 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin
REF-DG-K
Reflectors and optics | Reflectors | REF-DG-K | Description: "Diamond grade" reflective tape, self-adhesive, can be assembled from the sheet | Dimensions: 74.9 cm 91.4 cm | Ambient operating temperature: –34 °C ... +70 °C
YM12ES4-0075S5586D
Connectors and cables | Field-wireable connectors | YM12ES4-0075S5586D | Description: Shielded | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm² | Application: Hygienic and washdown zones

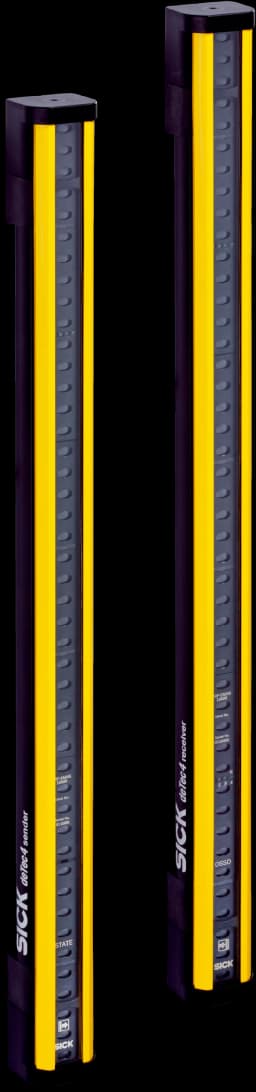

C4P-SA15031A00, C4P-EA15031C00
Safety light curtains | deTec | C4P-SA15031A00, C4P-EA15031C00 | Product version: deTec4 | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,500 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (without extension connection or with M12 female connector, 5-pin) | Enclosure rating: IP65, IP67 | I
ISD400-7211
Optical data transmission | ISD400 | ISD400-7211 | Communication interface: Ethernet | Transmission range: 0.2 m ... 150 m | Ambient temperature, operation: –20 °C ... +55 °C | Heating: no | Data transmission rate: 100 Mbit/s | Frequency: F1
PICS150-01000 Pro-2 6 I/O
LiDAR sensors | picoScan100 | PICS150-01000 Pro-2 6 I/O | Working range: 0.05 m ... 120 m | Scanning range: 75 m at 90% remission factor, 40 m at 10% remission factor | Angular resolution: 0.05°, 0.1°, 0.125°, 0.25°, 0.33°, 0.5°, 1° | Scanning frequency: 15 Hz, 20 Hz, 25 Hz, 30 Hz, 40 Hz, 50 Hz | Integrated application: Output of measurement data, 2D Object Detection, 2D Object Detection Advanced | Digital add-ons: Dynamic Sensing Profile package, Data Reduction & Data Preparation package, Relia
YF2A15-C60UB5M2A15
Connectors and cables | Sensor-actuator cables | YF2A15-C60UB5M2A15 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Male connector, M12, 5-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation

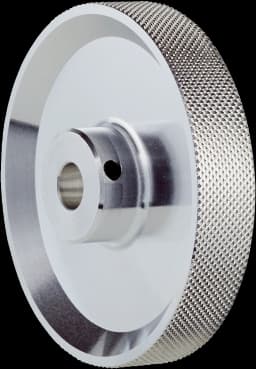

BEF-MR10300AK
Measuring wheels and measuring wheel mechanics | Measuring wheels | BEF-MR10300AK | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheels | Description: Aluminum measuring wheel with cross-knurled surface for 10 mm solid shaft, circumference 300 mm
BEF-SLG-SET2
Mounting systems | Brackets | BEF-SLG-SET2 | Description: Mounting bracket for light grids up to a detection height of 600 mm, mounting position: Front side | Items supplied: 4x BEF-SLG1
GRTB18S-P2317
Photoelectric sensors | GR18 | GRTB18S-P2317 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
