DFS60A-S4CM32768
Incremental encoders | DFS60 | DFS60A-S4CM32768 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 32,768
PSK45
Reflectors and optics | Mirror | PSK45 | Description: Deflector mirror for 90° deflection, mirror surface 97 mm x 80 mm, not suitable for column mounting
MZT8-28VNS-KUA
Cylinder sensors | MZT8 | MZT8-28VNS-KUA | Connection type: Cable, 3-wire, ferrules, 3 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
DBS60E-T5CPC1024
Incremental encoders | DBS60 | DBS60E-T5CPC1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
PLB-51A0102
Robot guidance systems | PLB | PLB-51A0102 | Items supplied: C57 camera, PLB Application Software | Part size: (approx.) > 10 mm x 10 mm x 10 mm | Part characteristics: Simple and complex part shapes | Bin size: Small

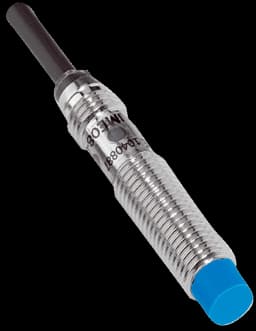

IME08-2N5PSZW5K
Inductive proximity sensors | IME | IME08-2N5PSZW5K | Housing: Short-body | Sensing range Sn: 2.5 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 5 m
KTS-WB9114115AZZZZ
Contrast sensors | KTS | KTS-WB9114115AZZZZ | Light source: LED | Communication interface: IO-Link | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
IMI08-02BNSNC0S
Inductive proximity sensors | IMI | IMI08-02BNSNC0S | Special applications: Hygienic and washdown zones, Difficult application conditions | Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents
HSE18-P4A1BB
Photoelectric sensors | H18 Sure Sense | HSE18-P4A1BB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 20 m | Light source, light type: LED, Infrared light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Sensitivity | Potentiometer, left: None | Connection type: Male conne
WSE16P-1H162100A00
Photoelectric sensors | W16 | WSE16P-1H162100A00 | Sensing range min. / max.: 0 m / 45 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task |
PBS2-RB100SN1SS0LMA0Z
Pressure sensors | PBS plus | PBS2-RB100SN1SS0LMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal:
AFM60I-BFTL262144
Absolute encoders | AFS/AFM60 SSI | AFM60I-BFTL262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Cable, 12-wire, radial, 3 m | Encoder material / Enclosure rating: Stainless steel V2A / IP67
IME12-04BNOZC0K
Inductive proximity sensors | IME | IME12-04BNOZC0K | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin
DFS60A-BECK16384
Incremental encoders | DFS60 | DFS60A-BECK16384 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 16,384
DFS60E-TEAC00360
Incremental encoders | DFS60 | DFS60E-TEAC00360 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 360
DBS60E-T3AAD1024
Incremental encoders | DBS60 | DBS60E-T3AAD1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
MLG10N-3140H10501
Automation light grids | MLG-2 | MLG10N-3140H10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 3,140 mm | Length of cable: 0.22 m, 0.21 m | Response time: 25.6 ms | Software feature (default setting - see technical data/features): 01
DBS50E-S5GK00500
Incremental encoders | DBS36/50 | DBS50E-S5GK00500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 27 V, HTL, Push-Pull | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 500
PBT-AB010SGESESAMA0Z
Pressure sensors | PBT | PBT-AB010SGESESAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Stainless steel | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | C
DBS60E-R3AJ00100
Incremental encoders | DBS60 | DBS60E-R3AJ00100 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
