Търсене в каталога
41538 резултата за "SICK" · стр. 382/2077
DFS60B-BHCC02048
Incremental encoders | DFS60 | DFS60B-BHCC02048 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048
DAXLAN-2100BA0C0000W01
Linear encoders | DAX | DAXLAN-2100BA0C0000W01 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 2,100 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Signal 1: rising, signal 2: falling | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
MLG05W-0555G12599
Automation light grids | MLG-2 WebChecker | MLG05W-0555G12599 | Device version: Web guiding | Inputs/outputs: 1 x analog + 3 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 2,245 mm | Measuring field width detail (connection side/medium range/head side): 745 mm / 755 mm / 745 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 60.3 ms | Software feature (default setting - see technical data/features): 99
DBS50E-S5EK01000
Incremental encoders | DBS36/50 | DBS50E-S5EK01000 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000
DOL-1212-G20M
Connectors and cables | Other connectors and cables | DOL-1212-G20M | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 12-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 9-wire, twisted pair, PVC | Connection systems: Flying leads | Note: OD Precision specific | Application: Uncontaminated zones, Zones with chemicals
YM12PA5-0003S0003L
Connectors and cables | Field-wireable connectors | YM12PA5-0003S0003L | Description: Unshielded | Connection type head A: Male connector, M12, 4-pin, straight, L-coded | Connection systems: Screw-type terminals | Permitted cross-section: 1.5 mm² ... 2.5 mm²

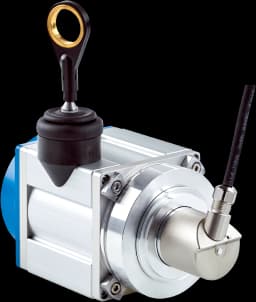

BTF08-A1MM0341
Wire draw encoders | HighLine | BTF08-A1MM0341 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Cable, 8-wire, universal, 5 m | Mounted encoder: AHM36 SSI, AHM36A-S3PM013X12, 1097369 | Mounted mechanic: MRA-F080-103D2, 6030125 | Programmable/configurable: yes
Protective cap, M12 for female connector
Device protection and care | Protective caps and hoods | Protective cap, M12 for female connector | Description: If a deTec sender with extension connection does not have an additional guest connected to it, the extension connection has no function and must be sealed with a protective cap.
HSE18-P4A2AB
Photoelectric sensors | H18 Sure Sense | HSE18-P4A2AB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 25 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: Sensitivity | Potentiometer, left: None | Connection type
AHM36A-S3PM013x12
Absolute encoders | AHS/AHM36 | AHM36A-S3PM013x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 5 m | Programming interface: Over handheld programming tool, over SOPAS
AFS60A-BDPL262144
Absolute encoders | AFS/AFM60 SSI | AFS60A-BDPL262144 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 3 m | Programming interface: Over handheld programming tool, over SOPAS
DFS60B-BHEK02500
Incremental encoders | DFS60 | DFS60B-BHEK02500 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500
DFS60B-S4PL10000
Incremental encoders | DFS60 | DFS60B-S4PL10000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 10,000

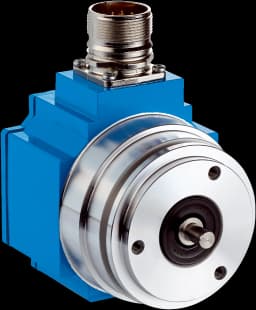

SRS50-HXA0-K22
Motor feedback systems | SRS/SRM50 | SRS50-HXA0-K22 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Solid shaft, Servo flange | Connection type: Male connector, M23, 12-pin, radial | Technology: Optical | Operating temperature range: –30 °C ... +85 °C
WTB2S-2N1330
Photoelectric sensors | W2 | WTB2S-2N1330 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -
DBS60E-RAFJD3600
Incremental encoders | DBS60 | DBS60E-RAFJD3600 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 3,600 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
GTE20G-QK111170ZZZ
Photoelectric sensors | G20 | GTE20G-QK111170ZZZ | Sensing range min. / max.: 0.02 m / 2 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Terminal connection, 4 terminals | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
DOL-MS10-G05MMA3
Connectors and cables | Other connectors and cables | DOL-MS10-G05MMA3 | Description: Shielded | Connection type head A: Female connector, MS/10, 10-pin, straight | Connection type head B: Flying leads | Cable: 5 m, 8-wire
PLOC2D calibration target A4
Commissioning aids and test equipment | Test equipment | PLOC2D calibration target A4 | Description: Target for calibration, A4-size
WTF12-3P1231
Photoelectric sensors | W12-3 | WTF12-3P1231 | Sensing range max.: 30 mm ... 175 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Foreground suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 5 m | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
