DBS36E-S3EK00600
Incremental encoders | DBS36/50 | DBS36E-S3EK00600 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 600
PBT-RB016SU1SEFAMA0Z
Pressure sensors | PBT | PBT-RB016SU1SEFAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 7/16" –20 UNF (SAE J514) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Conn
YG8U13-100VA1N2A13
Connectors and cables | Sensor-actuator cables | YG8U13-100VA1N2A13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Male connector, M12, 3-pin, angled, A-coded | Signal type: Sensor/actuator cable | Cable: 10 m, 3-wire, PVC | Application: Uncontaminated zones, Zones with chemicals

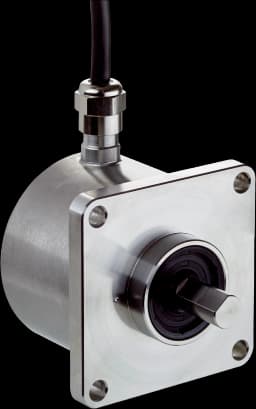

DBS60I-Q4CM02000
Incremental encoders | DBS60 | DBS60I-Q4CM02000 | Mechanical design: Solid shaft Square flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 2,000 | Flange type / stator coupling: Flange with 4 x hole 5.5 mm | Encoder material / Enclosure rating: Stainless steel V2A / IP67
PBT-RB040AG1SSFALA0Z
Pressure sensors | PBT | PBT-RB040AG1SSFALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 40 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
PAC50-ACC
Pressure sensors | PAC50 | PAC50-ACC | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: –1 bar ... 0 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: PIF 4 mm + G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: - | Output signal: 2 x PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector
DFS60B-BDMA10000
Incremental encoders | DFS60 | DFS60B-BDMA10000 | Mechanical design: Blind hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 10,000
AFM60B-TEAA008192
Absolute encoders | AFS/AFM60 SSI | AFM60B-TEAA008192 | Singleturn or multiturn version: Multiturn | Max. resolution: 13 bit x 12 bit (8,192 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
T4000-1KBA
Actuators and bolts | Actuators for RFID safety switches | T4000-1KBA | Product: Actuators for RFID safety switches | Design: Rectangular
YF2L15-300UH1XLEAX
Connectors and cables | Power cables | YF2L15-300UH1XLEAX | Description: Power, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, L-coded | Connection type head B: Flying leads | Signal type: Power | Cable: 30 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
MLG20A-0440R10801
Automation light grids | MLG-2 | MLG20A-0440R10801 | Device version: Pro - Extended functionality | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 20 mm | Operating range: 8.5 m | Detection height: 440 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 3.6 ms | Software feature (default setting - see technical data/features): 01
DBS60E-T2CA00100
Incremental encoders | DBS60 | DBS60E-T2CA00100 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
FX0-GETC00010
Safety controllers | Flexi Soft | FX0-GETC00010 | Module: Gateway | Fieldbus, industrial network: EtherCAT® | Connection type: 2 × RJ45 socket | Protective coating for more challenging ambient conditions: yes
DBS60E-RGEK00512
Incremental encoders | DBS60 | DBS60E-RGEK00512 | Mechanical design: Through hollow shaft 14 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 512 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
LFP4000-E5NMC
Level sensors | LFP Cubic | LFP4000-E5NMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 4,000 mm | Probe type: Cable probe | Remote amplifier: No | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes
DBS36E-S3RK00360
Incremental encoders | DBS36/50 | DBS36E-S3RK00360 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, Open Collector | Connection type: Cable, 5-wire, universal, 1.5 m | Pulses per revolution: 360
AFM60B-BEAK001024
Absolute encoders | AFS/AFM60 SSI | AFM60B-BEAK001024 | Singleturn or multiturn version: Multiturn | Max. resolution: 10 bit x 12 bit (1,024 x 4,096) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Cable, 8-wire, universal, 1.5 m
DSL-0803-G01M
Connectors and cables | Other connectors and cables | DSL-0803-G01M | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight | Connection type head B: Male connector, M8, 3-pin, straight | Signal type: Sensor/actuator cable | Cable: 1 m, 3-wire, PUR, halogen-free | Application: Zones with oils and lubricants, Drag chain operation
PBT-RM016SG1SSFALA0V
Pressure sensors | PBT | PBT-RM016SG1SSFALA0V | Pressure type: Gauge pressure | Pressure unit: MPa | Measuring range: 0 MPa ... 16 MPa | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type
IME18-12BNSZW2S
Inductive proximity sensors | IME | IME18-12BNSZW2S | Housing: Standard design | Sensing range Sn: 12 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
