41538 резултата за "SICK" · стр. 380/2077
MAX48N-32C01N00270
Linear encoders | MAX | MAX48N-32C01N00270 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 63 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Without electrical connection | Measuring range: 0 mm ... 270 mm
MLG10A-0440I10501
Automation light grids | MLG-2 | MLG10A-0440I10501 | Device version: Pro - Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 440 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 4.8 ms | Software feature (default setting - see technical data/features): 01
PBS2-CB4X0SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-CB4X0SG1SSDNMA0Z | Pressure type: Compound pressure | Pressure unit: bar psi | Measuring range: –1 bar ... 3 bar, –14.5 psi ... 44 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output sig
CLV631-3000
Fixed mount barcode scanners | CLV63x | CLV631-3000 | Optical focus: Fixed focus | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Cable connection variant | Max. reading distance: 412 mm | Code resolution: 0.25 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Raster scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
HTB18-L5C2AH
Photoelectric sensors | H18 Sure Sense | HTB18-L5C2AH | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: AC/DC | Switching output Q1: MOSFET, Light switching | Potentiometer, right: Sensing range | Potentiometer, left: Light/dark switching | Connection

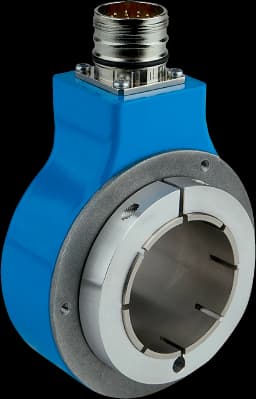

DGS80B-TYHA02500
Incremental encoders | DGS80/90 | DGS80B-TYHA02500 | Mechanical design: Through hollow shaft 42 mm (Front clamp) | Communication interface: 5 V ... 30 V, TTL, RS-422, non programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,500 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
LL3-TH01
Fiber-optic sensors | Fiber-optic cables | LL3-TH01 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141)
DBS60E-T8AQD1024
Incremental encoders | DBS60 | DBS60E-T8AQD1024 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
ARS60-HAM00256
Absolute encoders | ARS60 | ARS60-HAM00256 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 256 (8 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 5 m
PBT-RB025AG1SSNALA0Z
Pressure sensors | PBT | PBT-RB025AG1SSNALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 25 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
DBS60E-R2FA00100
Incremental encoders | DBS60 | DBS60E-R2FA00100 | Mechanical design: Through hollow shaft 8 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-TCCCC1024
Incremental encoders | DBS60 | DBS60E-TCCCC1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
AFM60A-THTA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-THTA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: SSI, SSI + incremental, non programmable, TTL | Connection type: Male connector, M23, 12-pin, radial
C4MT-11434ABB03FB0
Safety light curtains | miniTwin | C4MT-11434ABB03FB0 | Usage: miniTwin4 as a standalone device | Mounting system type: O-fix bracket | Safety level: PL e, SIL 3, Type 4 | Resolution: 34 mm | Scanning range: 5 m | Protective field height: 1,140 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, O-Fix bracket, 2 pieces, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructio
MLG10N-0740E10501
Automation light grids | MLG-2 | MLG10N-0740E10501 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 740 mm | Length of cable: 0.22 m, 0.21 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 01
SLG25S-080FBKA1K01
Automation light grids | FlexChain | SLG25S-080FBKA1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 25 mm | Operating range: 6.5 m | Detection height: 800 mm | Length of cable: 0.5 m
YF2A18-C60UA5M2A18
Connectors and cables | Sensor-actuator cables | YF2A18-C60UA5M2A18 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Male connector, M12, 8-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YG2A13-020UA1M8U13
Connectors and cables | Sensor-actuator cables | YG2A13-020UA1M8U13 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 3-pin, angled, A-coded | Connection type head B: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DFS60B-S1CM00600
Incremental encoders | DFS60 | DFS60B-S1CM00600 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 600
DFS60I-S4EM00641
Incremental encoders | DFS60 | DFS60I-S4EM00641 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, radial, 5 m | Pulses per revolution: 641 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
