Търсене в каталога
41538 резултата за "SICK" · стр. 370/2077
DBS60E-S4EK01024
Incremental encoders | DBS60 | DBS60E-S4EK01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DBS60E-BCCC00100
Incremental encoders | DBS60 | DBS60E-BCCC00100 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
YF8U14-300VA3XLEAX
Connectors and cables | Sensor-actuator cables | YF8U14-300VA3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 30 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
IMI30-10BPONU2S
Inductive proximity sensors | IMI | IMI30-10BPONU2S | Special applications: Hygienic and washdown zones, Difficult application conditions | Special features: Sensing face made of stainless steel V4A, Resistant to cleaning agents
DBS60E-R8FA00100
Incremental encoders | DBS60 | DBS60E-R8FA00100 | Mechanical design: Through hollow shaft 15 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
IMS30-15BPONU2S
Inductive proximity sensors | IMS | IMS30-15BPONU2S | Special applications: Mobile machines, Hygienic and washdown zones, Difficult application conditions | Special features: Resistant to cleaning agents, Temperature resistance
WTB4FP-31A11120ZZZ
Photoelectric sensors | W4 | WTB4FP-31A11120ZZZ | Sensing range min. / max.: 4 mm / 220 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 110 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment | Special features: With
DBS60E-B8FPD1024
Incremental encoders | DBS60 | DBS60E-B8FPD1024 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
WFM180-120N311
Fork sensors | WFM | WFM180-120N311 | Adjustment: None | Light source: LED | Type of light: Visible red light | Fork width/depth: 180 mm, 124 mm | Switching output: NPN | Switching mode: Light switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 4 kHz | Response time: ≤ 125 µs | Enclosure rating: IP67
SLG10S-010FAKB1K01
Automation light grids | FlexChain | SLG10S-010FAKB1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 10 mm | Operating range: 4 m | Detection height: 100 mm | Length of cable: 1.5 m
PBT-RB2X5AG1SSFV2C0Z
Pressure sensors | PBT | PBT-RB2X5AG1SSFV2C0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 2.5 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection typ

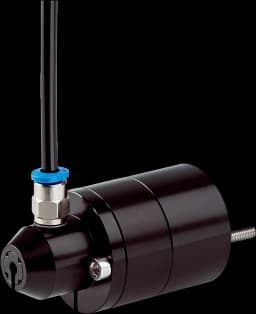

MRA-F-P
Mounting systems | Assembly accessories | MRA-F-P | Description: Compressed air attachment for MRA-F080... and MRA-F130... HighLine wire draw mechanism
LFP2000-A5CMC
Level sensors | LFP Cubic | LFP2000-A5CMC | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 2,000 mm | Probe type: Rod probe | Remote amplifier: Yes, length of cable 2 m | Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: M12 round connector x 1, 8-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating:
WFL15-60B41CA00
Fork sensors | WFL | WFL15-60B41CA00 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Light source: Laser | Type of light: Visible red light | Fork width/depth: 15 mm, 59 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 11 kHz | Response time: ≤ 60 µs | Enclosure rating: IP65
SLG50S-020FBKA1K01
Automation light grids | FlexChain | SLG50S-020FBKA1K01 | Device version: FlexChain Guest | Optical light exit: Flat | Beam separation: 50 mm | Operating range: 6.5 m | Detection height: 200 mm | Length of cable: 0.5 m
WTB4FA-97311120ZZZ
Photoelectric sensors | W4 | WTB4FA-97311120ZZZ | Sensing range min. / max.: 7 mm / 150 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, MultiPulse, LineSpot technology | Switching output: Push-pull: PNP/NPN | Connection type: Cable with plug M8, 3-pin, with knurled nut, 338 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustme
IMG30-20NNOZC0K
Inductive proximity sensors | IMG | IMG30-20NNOZC0K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 20 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance
TMM88D-MJI090A
Inertial sensors | TMS/TMM88 Dynamic | TMM88D-MJI090A | Number of axis: 2 | Measuring range: ± 90° | Resolution: 0.01° | Communication interface: SAE J1939 | Programmable/configurable: yes | Housing material: Die-cast zinc | Connection type: Male connector, 1x, M12, 5-pin, Female connector, 1x, M12, 5-pin
HTB18-P3A2BAD06
Photoelectric sensors | H18 Sure Sense | HTB18-P3A2BAD06 | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right: None | Potentiometer, left: Non
DFS60E-TGAK01024
Incremental encoders | DFS60 | DFS60E-TGAK01024 | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
