Търсене в каталога
41538 резултата за "SICK" · стр. 367/2077
MWS250-24WFC00300
Measuring wheel encoders | MWS250 | MWS250-24WFC00300 | Measuring wheel circumference: 300 mm | Measuring wheel surface: PUR | Communication interface: 4.5 V ... 30 V, Incremental, HTL, Push-Pull | Supply voltage: 4.5 V ... 30 V | Mounted encoder: DBS60E-TJFCA0300, 1155014 | Connection type: Male connector, M12, 8-pin, radial | Resolution in pulses/mm: 1
PLB-5240102
Robot guidance systems | PLB | PLB-5240102 | Items supplied: X36 camera, PLB Application Software | Part size: (approx.) > 10 mm x 10 mm x 10 mm | Part characteristics: Simple and complex part shapes | Bin size: Small
MAX30N-72C15CA0300
Linear encoders | MAX | MAX30N-72C15CA0300 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Male connector, M12 type S (20x20 mm), 5-pin | Measuring range: 0 mm ... 300 mm
DFS60E-BHCK00250
Incremental encoders | DFS60 | DFS60E-BHCK00250 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 250
IMG18-08BNOZC0K
Inductive proximity sensors | IMG | IMG18-08BNOZC0K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Temperature resistance
AFS60S-S4KT262144
Safety encoders | AFS/AFM60S Pro | AFS60S-S4KT262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, axial, 5 m
PBS2-RB160SF2FSDLMA0Z
Pressure sensors | PBS plus | PBS2-RB160SF2FSDLMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 160 bar, 0 psi ... 2,321 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B flush mounted | Pressure port: Front-flush membrane | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link |

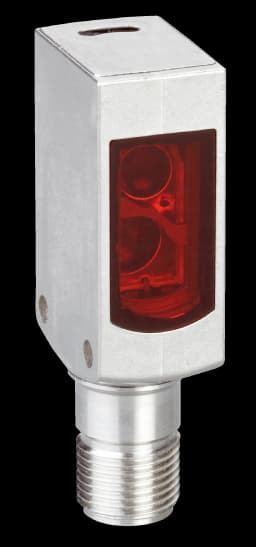

WTB4S-3P2465V
Photoelectric sensors | W4 | WTB4S-3P2465V | Sensing range max.: 4 mm ... 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Wire/pin | Housing: Rectangular
DFS60B-S4AK00100
Incremental encoders | DFS60 | DFS60B-S4AK00100 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 100
ZTE18-4AB4A2
Photoelectric sensors | Z18 Simple Sense | ZTE18-4AB4A2 | Communication interface: - | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric proximity sensor, Energetic | Sensing range: 700 mm | Light source, light type: PinPoint LED, visible red light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Male connector M12, 4-pin
HL18-N4A3BH
Photoelectric sensors | H18 Sure Sense | HL18-N4A3BH | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: NPN, Light switching | Switching output Q2: NPN, Dark switching | Potentiometer, right
DFS60B-S1CM01024
Incremental encoders | DFS60 | DFS60B-S1CM01024 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 1,024
PBS2-CB4X0SN1SS0NMA0Z
Pressure sensors | PBS plus | PBS2-CB4X0SN1SS0NMA0Z | Pressure type: Compound pressure | Pressure unit: bar psi | Measuring range: –1 bar ... 3 bar, –14.5 psi ... 44 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼'' NPT | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signa
DFS60B-THAK02048
Incremental encoders | DFS60 | DFS60B-THAK02048 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048
PBT-AB1X6AG1SENAMA0Z
Pressure sensors | PBT | PBT-AB1X6AG1SENAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 1.6 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connec
DFS60B-BECC00512
Incremental encoders | DFS60 | DFS60B-BECC00512 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 512
GSE20G-1IRC2170ZZZ
Photoelectric sensors | G20 | GSE20G-1IRC2170ZZZ | Sensing range min. / max.: 0 m / 120 m | Functional principle: Through-beam photoelectric sensor | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
DME3000 Dx100 PROFIBUS upgrade kit
Connectors and cables | Other connectors and cables | DME3000 Dx100 PROFIBUS upgrade kit
LL3-DF02-S04
Fiber-optic sensors | Fiber-optic cables | LL3-DF02-S04 | Functional principle: Proximity system | Fiber-optic head design: Special design | Fiber length: 224 mm | Smooth sleeve diameter: 5 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Chemical-resistant plastic | Included with delivery: FC fiber cutter (5304141), protective cladding for fiber head
ARS60-GAK03600
Absolute encoders | ARS60 | ARS60-GAK03600 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 3,600 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
