41538 резултата за "SICK" · стр. 358/2077
ISD300-1111
Optical data transmission | ISD300 | ISD300-1111 | Communication interface: PROFIBUS DP, Serial | Transmission range: 0.2 m ... 120 m | Ambient temperature, operation: –5 °C ... +50 °C | Heating: no | Data transmission rate: 1.5 Mbit/s | Frequency: F1
YF2A14-010UA3M8U14
Connectors and cables | Sensor-actuator cables | YF2A14-010UA3M8U14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Male connector, M8, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DBS60E-R1APC1024
Incremental encoders | DBS60 | DBS60E-R1APC1024 | Mechanical design: Through hollow shaft 6 mm (rear clamping) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-B3FA00100
Incremental encoders | DBS60 | DBS60E-B3FA00100 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
CM30-16BNP-EC1
Capacitive proximity sensors | CM | CM30-16BNP-EC1 | Sensing range Sn: 3 mm ... 16 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: NPN | Output function: Complementary
DBS50E-SKEL00200
Incremental encoders | DBS36/50 | DBS50E-SKEL00200 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 200
DBS60E-S1AK03600
Incremental encoders | DBS60 | DBS60E-S1AK03600 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 3,600 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
GSE6SP-34A121AEZZZ
Photoelectric sensors | G6 | GSE6SP-34A121AEZZZ | Sensing range min. / max.: 0 m / 20 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 348 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: None | Housing: Rectangular
DFS60B-S1AB08192
Incremental encoders | DFS60 | DFS60B-S1AB08192 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 8,192
PBSH-AB010S54S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-AB010S54S0BMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4
AFM60S-THKN262144
Safety encoders | AFS/AFM60S Pro | AFM60S-THKN262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 15 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 10 m
ARS60-F1A01024
Absolute encoders | ARS60 | ARS60-F1A01024 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 1,024 (10 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, radial
AHM36A-SDQC000A30
Absolute encoders | AHS/AHM36 | AHM36A-SDQC000A30 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (for adaption on 1.25 m wire draw) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis, Smart
DFS60A-BAVA00300
Incremental encoders | DFS60 | DFS60A-BAVA00300 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 300
AHS36A-S3QK016384
Absolute encoders | AHS/AHM36 | AHS36A-S3QK016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Cable, 4-wire, universal, 1.5 m | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
TCT-2PAGE0253MZ
Temperature sensors | TCT | TCT-2PAGE0253MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Thread G ½ B | Insertion length/diameter of probe: 25 mm / 3 mm | Seal: Without seal | Output signal: Pt100, 4-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
GRTE18S-N1167
Photoelectric sensors | GR18 | GRTE18S-N1167 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
AHS36I-S3AC000720
Absolute encoders | AHS/AHM36 | AHS36I-S3AC000720 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 720 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, universal | Encoder material / Enclosure rating: Stainless steel 1,4305 / IP67, IP69K
LFP0320-G1NMB
Level sensors | LFP Inox | LFP0320-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 320 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.440

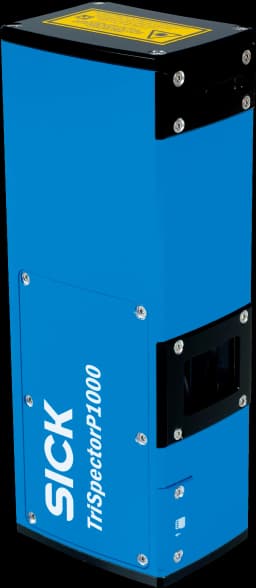

V3T12P-MR32A7
Machine vision | TriSpector1000 | V3T12P-MR32A7 | Product version: TriSpector1030 Programmable | Working distance: 141 mm ... 541 mm | Example field of view: 270 mm x 100 mm | Width at maximum operating distance: 330 mm | Window material: Glass | Scan/frame rate: 5,000 3D profiles/s | Data points/profile: 1,536
