Търсене в каталога
41538 резултата за "SICK" · стр. 353/2077
THTS-1PBT51506MZ
Temperature sensors | THTS | THTS-1PBT51506MZ | Temperature measuring range: –50 °C ... +250 °C | Process connection: Tri-clamp ½", ¾" | Insertion length/diameter of probe: 150 mm / 6 mm | Seal: Without seal | Output signal: Pt100, 4-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67, IP69 | Communication interface: -
MAX30N-82F7FCN0660
Linear encoders | MAX | MAX30N-82F7FCN0660 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: CANopen | Connection type: Male connector, M12 type S (20x20 mm), 5-pin | Measuring range: 0 mm ... 660 mm
DBS60E-TJCN01024
Incremental encoders | DBS60 | DBS60E-TJCN01024 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-TJEK00254
Incremental encoders | DFS60 | DFS60B-TJEK00254 | Mechanical design: Through hollow shaft 5/8″ (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 254
DBS60E-T8FJ00100
Incremental encoders | DBS60 | DBS60E-T8FJ00100 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS36E-BBAJ00500
Incremental encoders | DBS36/50 | DBS36E-BBAJ00500 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 500
ARS60-F4A16384
Absolute encoders | ARS60 | ARS60-F4A16384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, radial
AFS60B-BEAC032768
Absolute encoders | AFS/AFM60 SSI | AFS60B-BEAC032768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M12, 8-pin, radial
RSB1-0420C070140BA3KZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0420C070140BA3KZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 420 mm | Number of beams: 3 | Beam separation: 70 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with connector M8, 4-pin, with knurled nut | Length of cable: 3 m | Light source: LED | Type of light: Infrare
DFS60E-TAWA01024
Incremental encoders | DFS60 | DFS60E-TAWA01024 | Mechanical design: Through hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024

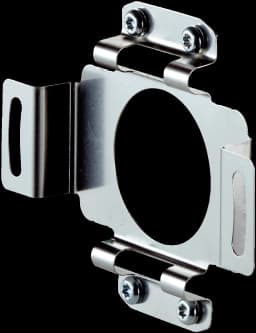

BEF-DS-09
Mounting systems | Stator couplings | BEF-DS-09 | Product family: Stator couplings | Description: Two-sided stator coupling, screw hole circle diameter 63 mm, slot width 3.2 mm
C2C-SV21030A10000, C2C-EV21030A10000
Safety light curtains | deTec | C2C-SV21030A10000, C2C-EV21030A10000 | Product version: deTec2 Core Vibes | System part: Pair | Application: Machines with strong shock or vibration loads | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 2,100 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety inst
SGS4-S060P7PS1W00
Automation light grids | SLG | SGS4-S060P7PS1W00 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 7 m | Detection height: 600 mm | Response time: 19 ms
LFV230-XXHCLIPM0200
Level sensors | LFV200 | LFV230-XXHCLIPM0200 | Communication interface: IO-Link | Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm) | Probe length: 200 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP with IO-Link | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | B
BEF-1SHABAAL4
Mounting systems | Brackets | BEF-1SHABAAL4 | Description: Mounting kit 2, rotatable | Packing unit: 4 pieces | Items supplied: 4 brackets, 8 M5 x 16 mm socket head screws, 8 M5 x 18 mm socket head screws, 8 washers
Additional front screen
Device protection and care | Front screens and front screen protection | Additional front screen | Description: Front screen protection set (protects sensors from damage by flying sparks and welding beads) | Items supplied: Incl. sliding nuts and fastening screws
DFS60B-S4EL07720
Incremental encoders | DFS60 | DFS60B-S4EL07720 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 7,720
DFS60A-BHAC65536
Incremental encoders | DFS60 | DFS60A-BHAC65536 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 65,536
TMS22B-PLG360
Inertial sensors | TMS/TMM22 | TMS22B-PLG360 | Number of axis: 1 | Measuring range: 360° | Resolution: ≤ 0.01° | Communication interface: - / Voltage | Voltage output: 0 V ... 10 V | Programmable/configurable: yes | Programming interface: Over PGT-15 | 0-set function via hardware pin: yes | Housing material: Plastic (PA12), glass-fiber reinforced | Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 1 m
DFS60A-S4PD65536
Incremental encoders | DFS60 | DFS60A-S4PD65536 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, axial | Pulses per revolution: 65,536
