Търсене в каталога
41538 резултата за "SICK" · стр. 351/2077
IMB18-08BNOVC0S
Inductive proximity sensors | IMB | IMB18-08BNOVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
WTT12LC-B2563S11
Laser distance sensors | WTT12 PowerProx | WTT12LC-B2563S11 | Product version: PowerProx Distance | Sensing range max.: 50 mm ... 3,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: - | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient commu
GL6-CC011K00
Automation light grids | FlexChain | GL6-CC011K00 | Device version: FlexChain Guest | Operating range: 6 m | Length of cable: 0.15 m
MLG50N-0400P10502
Automation light grids | MLG-2 | MLG50N-0400P10502 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 50 mm | Operating range: 5 m | Detection height: 400 mm | Length of cable: 0.22 m, 0.21 m | Response time: 3.5 ms | Software feature (default setting - see technical data/features): 02
DFS25A-B4D1N010000
Incremental encoders | DFS2x | DFS25A-B4D1N010000 | Mechanical design: Solid shaft Servo flange 10 mm x 19 mm (With flat) | Communication interface: 8 V ... 30 V, Open Collector, non programmable | Connection type: Cable, 9-wire, radial, 5 m | Pulses per revolution: 10,000

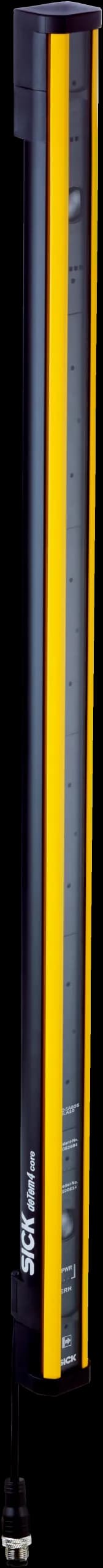

M4C-SA0250HA10
Safety light-beam sensors | deTem | M4C-SA0250HA10 | Product version: deTem4 Core | Functional principle: Sender/receiver | System part: Sender | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 90 m | Number of beams: 2 | Beam separation: 500 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender
WTB16P-34161120A00
Photoelectric sensors | W16 | WTB16P-34161120A00 | Sensing range min. / max.: 10 mm / 1,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 318 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjus
GSE10-N1231S01
Photoelectric sensors | G10 | GSE10-N1231S01 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: -
AHS36B-S1QC004096
Absolute encoders | AHS/AHM36 | AHS36B-S1QC004096 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 4,096 (12 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 12 mm (With flat) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing
HL18G-P4A3AL
Photoelectric sensors | H18 Sure Sense | HL18G-P4A3AL | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 3 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Dark switching | Potentiometer, right:
IMB12-08NNOVC0S
Inductive proximity sensors | IMB | IMB12-08NNOVC0S | Housing: Standard design | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Male connector M12, 4-pin | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
DFS60S-TGOC01024
Safety encoders | DFS60S Pro | DFS60S-TGOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Through hollow shaft 14 mm (with feather key groove) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M12, 8-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
GL6-P4111S01
Photoelectric sensors | G6 | GL6-P4111S01 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Special features: Connector rotated by 90° | Housing: R
HSE18L-N1G5BA
Photoelectric sensors | H18 Sure Sense | HSE18L-N1G5BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 60 m | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: NPN, Light switching | Switching output Q2: NPN, Dark switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Cable open
PBT-AB010SG1SSNAMA0Z
Pressure sensors | PBT | PBT-AB010SG1SSNAMA0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
YG2A25-100UB6XLEAX
Connectors and cables | Sensor-actuator cables | YG2A25-100UB6XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DBS60E-R4EQC1024
Incremental encoders | DBS60 | DBS60E-R4EQC1024 | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
RE23-SA03
Safety switches | RE2 | RE23-SA03 | Systemteil: Sensor with actuator | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 0 | Connection type Detail: Cable | Length of cable: 3 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
MLG20N-3140U10501
Automation light grids | MLG-2 | MLG20N-3140U10501 | Device version: ProNet - Replacement product (for MLG-1 with terminals) | Inputs/outputs: RS-485 + 6 x Q + 2 x I/O | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 3,140 mm | Length of cable: 0.22 m, 0.21 m | Response time: 13.5 ms | Software feature (default setting - see technical data/features): 01
DBS60E-BGAQC1024
Incremental encoders | DBS60 | DBS60E-BGAQC1024 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
