41538 резултата за "SICK" · стр. 350/2077
ZLD18-2PZ4B2
Photoelectric sensors | Z18 Simple Sense | ZLD18-2PZ4B2 | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 7.8 m | Light source, light type: PinPoint LED, visible red light | Switching output Q1: PNP, Light switching | Switching output Q2: Not connected | Connection type: Cable with plug, M12, 4-pin, 150 mm
P34
Reflectors and optics | Reflectors | P34 | Description: Round, planar | Ambient operating temperature: –20 °C ... +65 °C
GSE6-N1112
Photoelectric sensors | G6 | GSE6-N1112 | Sensing range max.: 0 m ... 15 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Housing: Rectangular | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
YFKA6B-300UM3MKA3A
Connectors and cables | Sensor-actuator cables | YFKA6B-300UM3MKA3A | Description: Incremental, shielded | Connection type head A: Female connector, M23, 12-pin, straight | Connection type head B: Male connector, M12, 12-pin, straight | Signal type: Incremental | Cable: 30 m, 12-wire, PUR, halogen-free | Application: Zones with oils and lubricants
DFS60B-TECC03600
Incremental encoders | DFS60 | DFS60B-TECC03600 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 3,600
DLS40E-S3GV00100
Incremental encoders | DLS40 | DLS40E-S3GV00100 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 100
AFM60S-S4SD262144
Safety encoders | AFS/AFM60S Pro | AFM60S-S4SD262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Male connector, M12, 12-pin, axial
YH2A14-C60UB3XLEAX
Connectors and cables | Sensor-actuator cables | YH2A14-C60UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 0.6 m, 4-wire, PUR, halogen-free | Note: Only suitable for PNP sensors | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
ARS60-FAB08192
Absolute encoders | ARS60 | ARS60-FAB08192 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 8,192 (13 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Male connector, M23, 21-pin, axial

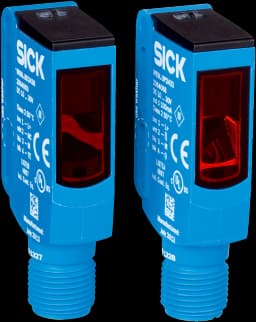

WSE9LC-3P3436A00
Photoelectric sensors | W9 | WSE9LC-3P3436A00 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 120 mm | Light source: Laser | Adjustment: IO-Link, Teach-in button | Laser class: 1 | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics
DFS60B-BHUA00512
Incremental encoders | DFS60 | DFS60B-BHUA00512 | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 512
V2D8509R-1MCIDXAF2AXXXX
Image-based code readers | Lector85x | V2D8509R-1MCIDXAF2AXXXX | Variant: Complete device | Regulatory Model: Z6ARAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 4,096 px x 2,176 px (9 MP) | Illumination color: White | Focal length: 16 mm | Ambient operating temperature: –35 °C ... +50 °C | Communication interface: Ethernet, EtherNet/IP™, CAN, Serial, USB, PROFINET
V2D8509R-1MCIDXAL2SXXXX
Image-based code readers | Lector85x | V2D8509R-1MCIDXAL2SXXXX | Variant: Complete device | Regulatory Model: Z6ARAB | Optical focus: Adjustable focus (manual) | Sensor resolution: 4,096 px x 2,176 px (9 MP) | Illumination color: White | Focal length: 16 mm | Ambient operating temperature: 0 °C ... +50 °C | Communication interface: Ethernet, CAN, Serial, USB
DBS60E-S1EA00050
Incremental encoders | DBS60 | DBS60E-S1EA00050 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 50 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DFS60I-S4EC01024
Incremental encoders | DFS60 | DFS60I-S4EC01024 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
Additional filter
Reflectors and optics | Optical filters | Additional filter | Description: Additional filter for high temperature applications
DFS60E-TBEK00100
Incremental encoders | DFS60 | DFS60E-TBEK00100 | Mechanical design: Through hollow shaft 8 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 100
DGS80B-TSL401024
Incremental encoders | DGS80/90 | DGS80B-TSL401024 | Mechanical design: Through hollow shaft 30 mm (Front clamp) | Communication interface: 5 V ... 30 V, HTL, Push pull, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
KTS-WP91141152ZZZZ
Contrast sensors | KTS | KTS-WP91141152ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: PNP | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
WTB4FT-97A11120ZZZ
Photoelectric sensors | W4 | WTB4FT-97A11120ZZZ | Sensing range min. / max.: 7 mm / 120 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, DoubleLine | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with plug M8, 3-pin, with knurled nut, 338 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment
