DFS60A-BAPK65536
Incremental encoders | DFS60 | DFS60A-BAPK65536 | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 65,536
PBT-RB100SG1NSNAMA0Z
Pressure sensors | PBT | PBT-RB100SG1NSNAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 100 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: 0.3 mm pressure port | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Co
GRSE18S-F2336
Photoelectric sensors | GR18 | GRSE18S-F2336 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (4 x)
HSE18L-V4A5BA
Photoelectric sensors | H18 Sure Sense | HSE18L-V4A5BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 60 m | Light source, light type: Laser, visible red light | Voltage type: DC | Switching output Q1: PNP, Light switching | Switching output Q2: PNP, Health output | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male connect
IMG18-12NNOZU2K
Inductive proximity sensors | IMG | IMG18-12NNOZU2K | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 12 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Resistant against coolant lubricants, Temperature resistance

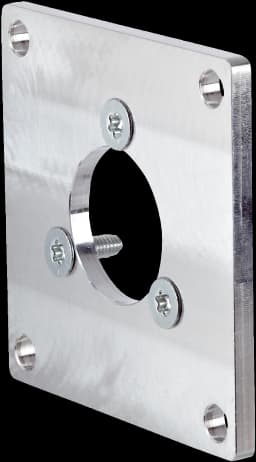

BEF-FA025063RECSK
Mounting systems | Flanges and nozzles | BEF-FA025063RECSK | Description: Flange adapter, adapts SKS/SKM36 servo/face mount flange encoder with 25 mm centering collar to 63 mm square mounting plate | Material: Aluminum | Details: Aluminum
MLG30N-1020H50501
Automation light grids | MLG-2 | MLG30N-1020H50501 | Device version: ProNet – extended functionality including fieldbus | Option: Protective housing IP69K | Beam separation: 30 mm | Operating range: 3.75 m | Detection height: 1,020 mm | Length of cable: 1.4 m, 1.4 m | Response time: 4 ms | Software feature (default setting - see technical data/features): 01
DFS60B-S4EA00256
Incremental encoders | DFS60 | DFS60B-S4EA00256 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 256
DBS60E-S4CK01000
Incremental encoders | DBS60 | DBS60E-S4CK01000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
AFS60S-SGSU262144
Safety encoders | AFS/AFM60S Pro | AFS60S-SGSU262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (with feather key) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Cable, 12-wire, axial, 10 m
DBS60E-S1EC00010
Incremental encoders | DBS60 | DBS60E-S1EC00010 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 10 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
DBS60E-TEAQC1024
Incremental encoders | DBS60 | DBS60E-TEAQC1024 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
PBT-AB010SG1SENVMC0Z
Pressure sensors | PBT | PBT-AB010SG1SENVMC0Z | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 0 V ... 10 V, 3-wire | Connection
ARS60-H4K32768
Absolute encoders | ARS60 | ARS60-H4K32768 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 32,768 (15 bit) | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
SGS4-S060F3PS1T00
Automation light grids | SLG | SGS4-S060F3PS1T00 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: Teach-in button | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 600 mm | Response time: 19 ms
YF2S14-030UH3XLEAX
Connectors and cables | Power cables | YF2S14-030UH3XLEAX | Description: Power, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, S-coded | Connection type head B: Flying leads | Signal type: Power | Cable: 3 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot

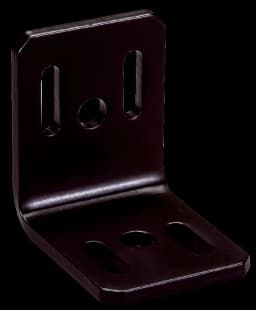

BEF-3WNGBAST4
Mounting systems | Brackets | BEF-3WNGBAST4 | Description: Mounting kit 1, mounting bracket, rigid, L-shaped, including fixing screws and washers | Packing unit: 4 pieces | Suitable for: All protective field heights
DFS60A-S4WA20000
Incremental encoders | DFS60 | DFS60A-S4WA20000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 20,000
USP-UM30
Reflectors and optics | Mirror | USP-UM30 | Description: 90° sound deflection plate for UM30-211xxx, UM30-212xxx, UM30-213xxx, stainless steel
DBS60E-RCFJD1024
Incremental encoders | DBS60 | DBS60E-RCFJD1024 | Mechanical design: Through hollow shaft 3/8″ (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
