AHM36I-BAJC014X12
Absolute encoders | AHS/AHM36 | AHM36I-BAJC014X12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Blind hollow shaft 6 mm (Front clamp) | Communication interface: SAE J1939, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool | Encoder material / Enclosure rating: Stainless steel 1,4305 / IP67, IP69K
DAXLAN-0225BA0C0000V01
Linear encoders | DAX | DAXLAN-0225BA0C0000V01 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 225 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
DAXLAN-1400BA080000D00
Linear encoders | DAX | DAXLAN-1400BA080000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 1,400 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
WL2S-2P3230S15
Photoelectric sensors | W2 | WL2S-2P3230S15 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -

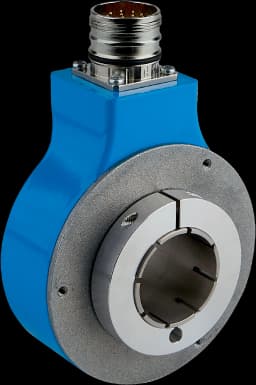

DGS80B-TSHA01024
Incremental encoders | DGS80/90 | DGS80B-TSHA01024 | Mechanical design: Through hollow shaft 30 mm (Front clamp) | Communication interface: 5 V ... 30 V, TTL, RS-422, non programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
IME12-06BPOZW2S
Inductive proximity sensors | IME | IME12-06BPOZW2S | Housing: Standard design | Sensing range Sn: 6 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
DBS60E-RFEPC1024
Incremental encoders | DBS60 | DBS60E-RFEPC1024 | Mechanical design: Through hollow shaft 1/2″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
TR110-SRUSAB0
Safety switches | TR110 Lock | TR110-SRUSAB0 | Locking principle: Power to release | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: None, only individual wiring (with diagnostics) | Escape release: no | Pushbuttons: no
TR4-RFM000
Actuators and bolts | Actuators for RFID safety switches | TR4-RFM000 | Product: Actuators for RFID safety switches | Description: Replacement actuator for TR4-SEMxxx and TR4-SFMxxx | Design: Rectangular
WSE4SP-22112100ZZZ
Photoelectric sensors | W4 | WSE4SP-22112100ZZZ | Sensing range min. / max.: 0 m / 12 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: On delay 200 ms on pin 2 | Housing: Rectangular
MLG25S-0875D10501
Automation light grids | MLG-2 | MLG25S-0875D10501 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 25 mm | Operating range: 5 m | Detection height: 875 mm | Length of cable: 0.22 m, 0.22 m | Response time: 6.1 ms | Software feature (default setting - see technical data/features): 01
GRTE18S-N2312
Photoelectric sensors | GR18 | GRTE18S-N2312 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
LFP0850-G1NMB
Level sensors | LFP Inox | LFP0850-G1NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 850 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.440
PBT-CB4X0SGTSSNAMA0Z
Pressure sensors | PBT | PBT-CB4X0SGTSSNAMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
MZT8-03VNS-KUDS30
Cylinder sensors | MZT8 | MZT8-03VNS-KUDS30 | Connection type: Cable with Molex-connector 0510210300, 3-pin, 0.36 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
PBT-RB040AGTSSFAMA0Z
Pressure sensors | PBT | PBT-RB040AGTSSFAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 40 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: FKM | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection ty
DFS60A-S1CC65536
Incremental encoders | DFS60 | DFS60A-S1CC65536 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 65,536

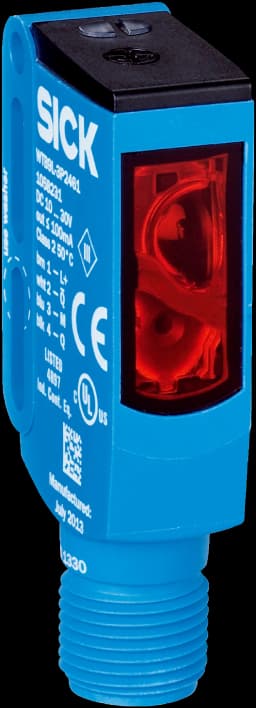

WTB9L-3N2461
Photoelectric sensors | W9 | WTB9L-3N2461 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: -
YI8U13-050UA1XLEAX
Connectors and cables | Sensor-actuator cables | YI8U13-050UA1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 3-wire, PUR, halogen-free | Note: Only suitable for PNP sensors | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
VTE180-2N42442
Photoelectric sensors | V180 | VTE180-2N42442 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
