Търсене в каталога
41538 резултата за "SICK" · стр. 33/2077

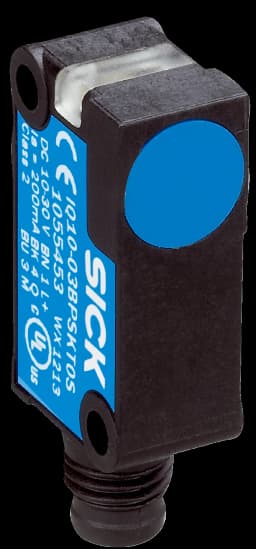

IQ10-03BPSKT0S
Inductive proximity sensors | IQB | IQ10-03BPSKT0S | Sensing range Sn: 3 mm | Installation type: Flush | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin
iE10-S2
Actuators and bolts | Actuators for electromechanical safety switches | iE10-S2 | Design: Straight | Actuation option: Rubber-mounted | Items supplied: Including two safety screws
UM18-218167101
Ultrasonic distance sensors | UM18 | UM18-218167101 | Communication interface: - | Operating range, limiting range: 120 mm ... 1,000 mm, 1,300 mm | Connection type: Male connector, M12, 4-pin | Sending axis: Straight | Response time: 80 ms | Type of analog output: Voltage output
LFV200-XXSGHTPM
Level sensors | LFV200 | LFV200-XXSGHTPM | Communication interface: - | Process connection: G ½ A PN 64 | Probe length: 67 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP67 | Display: no | PWIS-cleaned:
V3S142-1AABAAB
Machine vision | Visionary-S | V3S142-1AABAAB | Product version: Visionary-S AP | Integrated application: Data flow with the ability to process data in the device. Already-finished Key Apps can be loaded onto the device and independent applications can be created. | Working range: 0.5 m ... 65 m | Sensor resolution: 640 px x 512 px | Laser class: 1 | Scan/frame rate: 30 fps, Up to 9,850,000 3D data points/s | Detection angle: 60° x 50° | Window material: PMMA
RFU610-10600
RFID | RFU61x | RFU610-10600 | Radio approval: European Union, South Africa, United Arab Emirates, Saudi Arabia | Frequency band: UHF (860 MHz ... 960 MHz) | Reading range: ≤ 0.5 m | Enclosure rating: IP67
YF8U13-030UA1XLEAX
Connectors and cables | Sensor-actuator cables | YF8U13-030UA1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 3 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YF8U14-C60VA3M2A14
Connectors and cables | Sensor-actuator cables | YF8U14-C60VA3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.6 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
DBS36E-BBEJ00100
Incremental encoders | DBS36/50 | DBS36E-BBEJ00100 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100

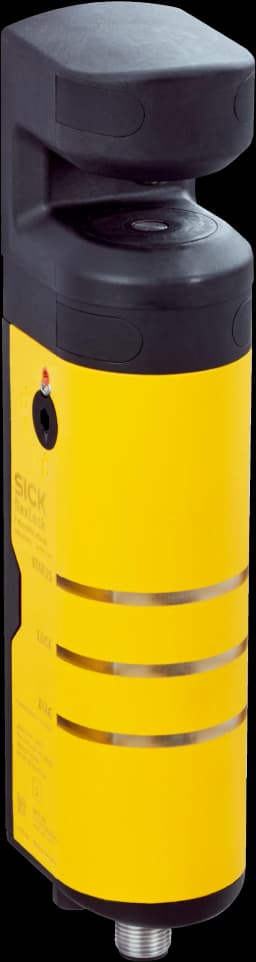

FXL1-SPBUSA00
Safety switches | flexLock | FXL1-SPBUSA00 | Locking principle: Power to release | Switching behavior of the OSSDs: Locking monitoring | Switching behavior of the application diagnostic output: Actuator monitoring | Coding: Uniquely coded | Auxiliary release: yes | Escape release: no | Retaining force: 30 N

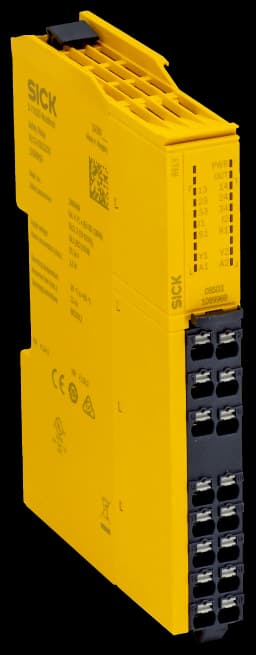

RLY3-OSSD300
ReLy | RLY3-OSSD300 | Applications: Evaluation unit | Compatible sensor types: Safety sensors with OSSDs | Connection type: Front connector with spring terminals | Restart interlock: yes | External device monitoring (EDM): Integrated | Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe) | Housing width: 18 mm
WL100-2P3439
Photoelectric sensors | W100 | WL100-2P3439 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A, Reflector P250
STR1-SASM10P8
Safety switches | STR1 | STR1-SASM10P8 | Actuator design: Standard | Coding: Universally coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable, 7-wire | Length of cable: 10 m | Safe series connection: In control cabinet (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
LXRC-1XXXJXXABEXAB
Level sensors | LXRC-1 | LXRC-1XXXJXXABEXAB | Communication interface: IO-Link | Process connection: G 1, PN16, DIN3852-A | Probe type: Thread with integrated horn antenna made from PTFE | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA ... 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +130 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: Stainless steel 1.4404 / 316L
LFP0400-A4NMB
Level sensors | LFP Cubic | LFP0400-A4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 400 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes | P
Mounting bracket
Mounting systems | Brackets | Mounting bracket | Description: Pivot mounting bracket, incl. assembly material | Suitable for: Pivot mounting bracket incl. mounting material, can be adjusted +/-30°. Device can be replaced without the need to mechanically readjust the bracket.
ISD400-7212
Optical data transmission | ISD400 | ISD400-7212 | Communication interface: Ethernet | Transmission range: 0.2 m ... 150 m | Ambient temperature, operation: –20 °C ... +55 °C | Heating: no | Data transmission rate: 100 Mbit/s | Frequency: F2
KUP-1012-D
Shaft adaptation | Shaft couplings | KUP-1012-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 10 mm / 12 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
BEF-MS12G-A
Mounting systems | Brackets | BEF-MS12G-A | Description: Mounting bar, straight, 200 mm, steel | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware | Usable for: Fiber-optic sensors
DL50-P2225
Laser distance sensors | Dx50 | DL50-P2225 | Communication interface: Serial | Measuring range: 200 mm ... 50,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Minimum response time: 10 ms | Digital output: 1 ... 2 x PNP | Multifunctional input (MF): − / 1 x
