41538 резултата за "SICK" · стр. 328/2077
BEF-MS12G-NA
Mounting systems | Brackets | BEF-MS12G-NA | Description: Mounting bar, straight, 200 mm, stainless steel | Material: Stainless steel | Details: Stainless steel (1.4571)
Bar code tape
Codes | Positioning codes | Bar code tape | Description: 30 mm, height: 30 mm, measuring range: 360 m ... 380 m | Suitable for: OLM
AFS60S-BCKJ262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BCKJ262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 3/8″ (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 0.5 m
MAX48N-12A10MP0500
Linear encoders | MAX | MAX48N-12A10MP0500 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 500 mm
OLM100-1206
OLM | OLM100-1206 | Communication interface: CANopen | Repeatability: 0.15 mm | Max. movement speed: 7 m/s | Reading distance: 100 mm ± 20 mm | Barcode width: 30 mm | Output time: 1 ms | Resolution: 0.1 mm, 1 mm
IHM06-06NPSVW2K
Inductive proximity sensors | IMM | IHM06-06NPSVW2K | Housing: Short-body | Sensing range Sn: 6 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator, triple sensing range
DFS60B-S4EA00020
Incremental encoders | DFS60 | DFS60B-S4EA00020 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 20
DBS60E-S3EC02048
Incremental encoders | DBS60 | DBS60E-S3EC02048 | Mechanical design: Solid shaft face mount flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push-Pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 2,048 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4

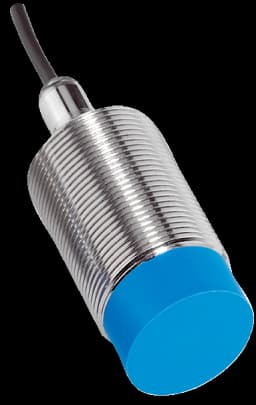

IME30-20NPOZW2S
Inductive proximity sensors | IME | IME30-20NPOZW2S | Housing: Standard design | Sensing range Sn: 20 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m
MAX30N-72A10AE0250
Linear encoders | MAX | MAX30N-72A10AE0250 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 250 mm
BEF-KHS-N05N
Mounting systems | Brackets | BEF-KHS-N05N | Description: Plate N05N for universal clamp bracket, M12 | Material: Stainless steel, stainless steel | Details: Stainless steel 1.4571 (sheet), Stainless steel 1.4408 (clamp) | Items supplied: Universal clamp (5322627), mounting hardware | Usable for: IMA, IMF, M12 round sensors, UC4, V12-2, MultiV, MultiLine, W4-3, MultiV, MultiLine
PLR3200-01
Robot guidance systems | PLR | PLR3200-01 | Measurement range: 265 mm ... 515 mm, recommended: 365 mm | Localization accuracy: ± 0.5 mm, ± 0.1° | Dimensions, system (L x W x H): 225 mm x 90 mm x 84 mm
TR4-SEU03PB
Safety switches | TR4 Direct | TR4-SEU03PB | System part: Sensor with actuator | Coding: Uniquely coded | Assured switch on distance Sao: 15 mm | Connection type Detail: Cable | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics) | Status display: yes | Boundary area indication: yes
DFS60B-T5EA04096
Incremental encoders | DFS60 | DFS60B-T5EA04096 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 4,096
DAXLAN-0400BA0C0000V01
Linear encoders | DAX | DAXLAN-0400BA0C0000V01 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 8-pin | Measurement range: 0 mm ... 400 mm | Supply voltage: 24 V DC (± 20%) | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Small block magnet MAG-B-180-01
HL18-A4A3BA
Photoelectric sensors | H18 Sure Sense | HL18-A4A3BA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right:
SLG10S-100SER11A00
Automation light grids | SLG-2 | SLG10S-100SER11A00 | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 1.5 m | Detection height: 1,000 mm | Length of cable: 150 mm
CLV505-0000
Fixed mount barcode scanners | CLV50x | CLV505-0000 | Optical focus: Fixed focus | Communication interface: Serial | Type: Cable connection variant | Max. reading distance: 330 mm | Code resolution: 0.15 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Plastic | Cold storage applications: no | Enclosure rating: IP54
DBS60E-S3FK05000
Incremental encoders | DBS60 | DBS60E-S3FK05000 | Mechanical design: Solid shaft face mount flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
IMB12-08NPSVUDKS22
Inductive proximity sensors | IMB | IMB12-08NPSVUDKS22 | Housing: Short-body | Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2.5 m | Special features: Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
