HL18-N4B3BB
Photoelectric sensors | H18 Sure Sense | HL18-N4B3BB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 6.5 m | Light source, light type: PinPoint LED, visible red light | Voltage type: DC | Switching output Q1: NPN, Light switching | Switching output Q2: NPN, Dark switching | Potentiometer, right
DBS60E-BCEJC1024
Incremental encoders | DBS60 | DBS60E-BCEJC1024 | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
WTB12L-1H161820A00
Photoelectric sensors | W12 | WTB12L-1H161820A00 | Sensing range min. / max.: 15 mm / 420 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Lin
WSE4S-3P2230V
Photoelectric sensors | W4 | WSE4S-3P2230V | Sensing range max.: 0 m ... 5 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: None | Housing: Rectangular
RSB1-0640E070180BA4KZZZZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0640E070180BA4KZZZZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 640 mm | Number of beams: 5 | Beam separation: 70 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with connector M12, 4-pin, with knurled nut | Length of cable: 3 m | Light source: LED | Type of light: Infrar
ZTB18-9AB5B1D02
Photoelectric sensors | Z18 Simple Sense | ZTB18-9AB5B1D02 | Communication interface: - | Mounting system type: M18, head/dovetail mounting with base | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 50 mm | Light source, light type: PinPoint LED, Infrared light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Cable with male connector M8, 4-pin, snap, 150 m
AFS60S-BFKC262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BFKC262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 1/2″ (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Male connector, M12, 12-pin, radial
C2MT-11414BBC03FE0
Safety light curtains | miniTwin | C2MT-11414BBC03FE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 8 m | Protective field height: 1,140 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the re

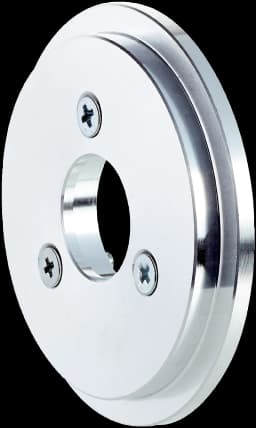

BEF-FA-020-050-007
Mounting systems | Flanges and nozzles | BEF-FA-020-050-007 | Description: Flange adapter for EcoLine wire draw mechanisms, adaption of face mount flange with centering hub 20 mm to 50 mm servo flange | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M3 x 10
DUS60E-BJKF0AAA
Incremental encoders | DUS60 | DUS60E-BJKF0AAA | Mechanical design: Blind hollow shaft 5/8″ (Front clamp) | Communication interface: 4.75 V ... 30 V, TTL, HTL, programmable | Connection type: Male connector, M12, 4-pin, universal | Output function: A and B output | Flange type / stator coupling: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm | Anti-dither: no
IMS18-08BNOVC0S
Inductive proximity sensors | IMS | IMS18-08BNOVC0S | Special applications: Mobile machines, Zones with coolants and lubricants, Difficult application conditions | Special features: Resistant against coolant lubricants, Temperature resistance
WS/WE100-2N4439
Photoelectric sensors | W100 | WS/WE100-2N4439 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
PBT-RB016SGESE0ALA0Z
Pressure sensors | PBT | PBT-RB016SGESE0ALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 16 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ½ B (EN 837) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connect
DFS60B-BGCC04096
Incremental encoders | DFS60 | DFS60B-BGCC04096 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 4,096
WS/WE100L-F1131
Photoelectric sensors | W100 | WS/WE100L-F1131 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: - | Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
LFH-EB010G1VS03ZV0
Level sensors | LFH | LFH-EB010G1VS03ZV0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 0 V ... 10 V, 3-wire | Connection type: PUR cable connection | Process temperature: –10 °C ... +50 °C | Process pressure: 0 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Additional function: Overv
AFM60A-TGAA065536
Absolute encoders | AFS/AFM60 SSI | AFM60A-TGAA065536 | Singleturn or multiturn version: Multiturn | Max. resolution: 16 bit x 12 bit (65,536 x 4,096) | Mechanical design: Through hollow shaft 14 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial

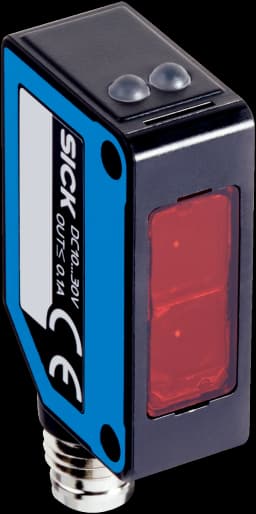

WL100-2P4239S09
Photoelectric sensors | W100 | WL100-2P4239S09 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M8, 4-pin | Light source: LED | Adjustment: None | Communication interface: -
UM18-21712D211
Ultrasonic distance sensors | UM18 | UM18-21712D211 | Communication interface: IO-Link | Operating range, limiting range: 20 mm ... 150 mm, 250 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x push-pull: PNP/NPN | Type of analog output: Voltage output | Communication Interface detail: IO-Link V1.1
RSB1-0330B110110PZ0BS06ZZZ
Photoelectric sensors | Roller Sensor Bar | RSB1-0330B110110PZ0BS06ZZZ | Sensing range min. / max.: 2 mm / 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Length of Sensor Bar: 330 mm | Number of beams: 2 | Beam separation: 110 mm | Switching output: PNP | Connection type: Cable with special plug, M8, 4-pin, 137 mm | Length of cable: 100 mm | Light source: LED | Type of light: Infrared light | Housing material: Aluminum (anodised) | Specia
