AFM60A-BBPM262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-BBPM262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 5 m | Programming interface: Over handheld programming tool, over SOPAS
PBT-RB4X0AG4SS0ALA0Z
Pressure sensors | PBT | PBT-RB4X0AG4SS0ALA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 4 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ B (EN 837) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: Without seal | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connectio
MLG25S-2225D10801
Automation light grids | MLG-2 | MLG25S-2225D10801 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 25 mm | Operating range: 8.5 m | Detection height: 2,225 mm | Length of cable: 0.22 m, 0.22 m | Response time: 11.2 ms | Software feature (default setting - see technical data/features): 01
PBST-RB400SG2SSEQMA0Z
Pressure sensors | PBST | PBST-RB400SG2SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 400 bar | Accuracy: ≤ ± 0.5 % | Process connection: G ¼ female (EN 837) | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C ... +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4...20 mA, 0...10 V, 1...10 V (each freely sc
PBT-RBX40AG1SSNAMA0Z
Pressure sensors | PBT | PBT-RBX40AG1SSNAMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 0.4 bar | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: 0 °C ... +80 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection t
DBS60E-THFKD2048
Incremental encoders | DBS60 | DBS60E-THFKD2048 | Mechanical design: Through hollow shaft 15 mm (Front clamp) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
SPZ-042-030-M
Shaft adaptation | Collets | SPZ-042-030-M | Product segment: Shaft adaptation | Product: Collets | Description: Collet for through hollow shaft, shaft diameter 30 mm, external diameter 42 mm
DFS60B-S1CB01800
Incremental encoders | DFS60 | DFS60B-S1CB01800 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, axial | Pulses per revolution: 1,800
CDB TDC 24VDC
Junction boxes | CDB | CDB TDC 24VDC
IME12-06BPOZW2K
Inductive proximity sensors | IME | IME12-06BPOZW2K | Housing: Short-body | Sensing range Sn: 6 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Triple sensing range
AFM60A-BGRA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-BGRA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: SSI, SSI + incremental, programmable | Connection type: Male connector, M23, 12-pin, radial | Programming interface: Over handheld programming tool, over SOPAS
AHS36A-BCQC016384
Absolute encoders | AHS/AHM36 | AHS36A-BCQC016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Blind hollow shaft 3/8″ (Front clamp) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
LFV230-XXHCNTPM1000
Level sensors | LFV200 | LFV230-XXHCNTPM1000 | Communication interface: - | Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm) | Probe length: 1,000 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C ... +150 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
WTB4SL-3P1162V
Photoelectric sensors | W4 | WTB4SL-3P1162V | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular
PBSH-CB4X0ST1S0BMA0Z
Pressure sensors | PBS Hygienic | PBSH-CB4X0ST1S0BMA0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 3 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½" (DIN 32676) | Process temperature: –20 °C ... +100 °C | Seal: Without seal | Communication interface: - | Output signal: 1 x PNP + 4 mA ... 20 mA | Connect
WTB2S-2P3275S36
Photoelectric sensors | W2 | WTB2S-2P3275S36 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: PinPoint LED | Adjustment: Wire/pin | Communication interface: -

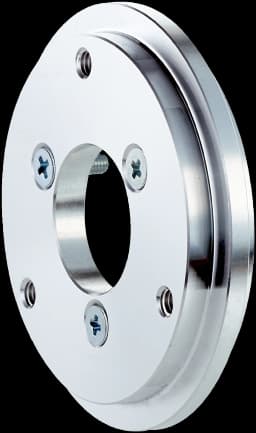

BEF-FA-020-050
Mounting systems | Flanges and nozzles | BEF-FA-020-050 | Description: Flange adapter for EcoLine and VarioLine wire draw mechanisms, for adapting AHS/AHM36
DFS60B-S4CK02000
Incremental encoders | DFS60 | DFS60B-S4CK02000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,000
UP56-214114
Level sensors | UP56 | UP56-214114 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Di
GL10-N4111
Photoelectric sensors | G10 | GL10-N4111 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: -
