Търсене в каталога
41538 резултата за "SICK" · стр. 324/2077
GSE2F-N1121
Photoelectric sensors | G2 | GSE2F-N1121 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Adjustment: None | Communication interface: -
IQ40-20BNPKK0S
Inductive proximity sensors | IQG | IQ40-20BNPKK0S | Special applications: Difficult application conditions | Sensing range Sn: 20 mm | Installation type: Flush | Cuboid shape (W x H x D): 40 mm x 40 mm x 118 mm | Electrical wiring: DC 4-wire | Switching output: NPN | Output function: Complementary | Connection type: Cable gland
WTB4FP-P02
Photoelectric sensors | W4 | WTB4FP-P02 | Sensing range min. / max.: 4 mm / 48 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Cable with connector M8, 3-pin, 110 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: None | Special features: Fixed sensing range 48 mm, Foam protection fra
MLG10N-0740N10801
Automation light grids | MLG-2 | MLG10N-0740N10801 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 10 mm | Operating range: 8.5 m | Detection height: 740 mm | Length of cable: 0.22 m, 0.21 m | Response time: 7.1 ms | Software feature (default setting - see technical data/features): 01
MAX48N-12V10AC0150
Linear encoders | MAX | MAX48N-12V10AC0150 | Type: Ø 48 mm 48f7 - IN Cylinder Mounting Ø48H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Voltage | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 150 mm | Output signal: 0.5 V DC ... 4.5 V DC
DBS60E-BGCJ00100
Incremental encoders | DBS60 | DBS60E-BGCJ00100 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 10 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
WTB4SL-3P2262V
Photoelectric sensors | W4 | WTB4SL-3P2262V | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button | Housing: Rectangular
LFP1000-F4NMB
Level sensors | LFP Cubic | LFP1000-F4NMB | Communication interface: IO-Link | Process connection: ¾" NPT | Probe length: 1,000 mm | Probe type: Cable probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: ye
DBS50E-S5EL01000
Incremental encoders | DBS36/50 | DBS50E-S5EL01000 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 1,000
DBS60E-BJAK02048
Incremental encoders | DBS60 | DBS60E-BJAK02048 | Mechanical design: Blind hollow shaft 5/8″ (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,048 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DFS60B-BECC08192
Incremental encoders | DFS60 | DFS60B-BECC08192 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 8,192
ARS60-JDL00100
Absolute encoders | ARS60 | ARS60-JDL00100 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 100 | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 3 m
C2MT-08424BBC03FE0
Safety light curtains | miniTwin | C2MT-08424BBC03FE0 | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 24 mm | Scanning range: 8 m | Protective field height: 840 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the reso
GSE6-P5311
Photoelectric sensors | G6 | GSE6-P5311 | Sensing range max.: 0 m ... 15 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Housing: Rectangular

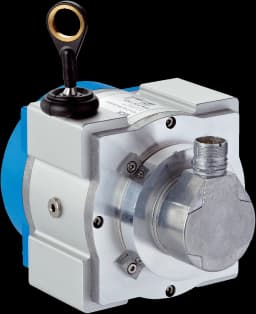

PRF13-A1AM0520
Wire draw encoders | HighLine | PRF13-A1AM0520 | Measuring range: 0 m ... 5 m | Communication interface: Incremental / TTL / RS-422 | Supply voltage: 4.5 V ... 5.5 V | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: DFS60, DFS60B-S1MA10000, 1056866 | Mounted mechanic: MRA-F130-105D2, 6028626 | Programmable/configurable: yes

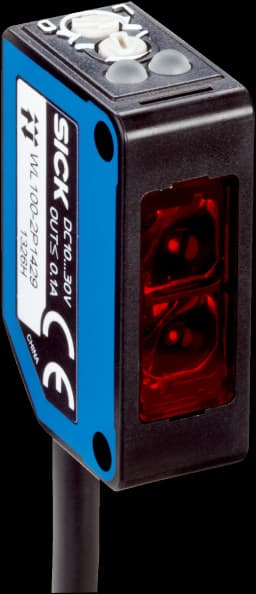

WL100-2P1429
Photoelectric sensors | W100 | WL100-2P1429 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W100-A, Reflector P250
DFS25A-A2AAD003600
Incremental encoders | DFS2x | DFS25A-A2AAD003600 | Mechanical design: Solid shaft Square flange 3/8″ x 19 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422, non programmable | Connection type: Male connector, MS, 10-pin, radial | Pulses per revolution: 3,600
ZLD18-8AB1G8
Photoelectric sensors | Z18 Simple Sense | ZLD18-8AB1G8 | Communication interface: - | Mounting system type: 24 mm, ball, without alignment aid | Sensor/ detection principle: Photoelectric retro-reflective sensor, With minimum distance to reflector (dual lens system) | Sensing range: 5 m | Light source, light type: LED, visible red light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Cable open end, 4-wire,
Muting arm protective plate, PU3, left
Device protection and care | Protective caps and hoods | Muting arm protective plate, PU3, left | Description: Guard plate for round steel arm, left | Items supplied: Mounting hardware included | Suitable for: PU3 device column
HTB18-M5B2AB
Photoelectric sensors | H18 Sure Sense | HTB18-M5B2AB | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 300 mm | Light source, light type: PinPoint LED, visible red light | Voltage type: AC/DC | Switching output Q1: MOSFET, Dark switching | Potentiometer, right: Sensing range | Potentiometer, left: None | Connection type: Cable with
