DT500-A623
Laser distance sensors | Dx500 | DT500-A623 | Communication interface: CAN | Measuring range: 0.2 m ... 70 m, 90% remission factor, 0.2 m ... 30 m, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 150 ms | Multifunctional input (MF): PNP
PBS2-RB400SG2SS0NMA0Z
Pressure sensors | PBS plus | PBS2-RB400SG2SS0NMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 400 bar, 0 psi ... 5,802 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ female (EN 837) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: Without seal | Communication interface: IO-Link | Out
BEF-KHS-N06
Mounting systems | Brackets | BEF-KHS-N06 | Description: Plate N06 for universal clamp bracket, M18 | Material: Steel, zinc diecast | Details: Zinc plated steel (sheet), Zinc die cast (clamping bracket) | Items supplied: Universal clamp (5322626), mounting hardware | Usable for: MH15, MH15V, V180-2, V18V, W15, GR18, V18, V18 Laser, V12-2, SimpleSense, SureSense, M18 round sensors
ARS60-H4K00072
Absolute encoders | ARS60 | ARS60-H4K00072 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 72 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 1.5 m
LFV200-XASGACPVL
Level sensors | LFV200 | LFV200-XASGACPVL | Communication interface: - | Process connection: G 1 A PN 64 | Probe length: 115 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Non-contact switch | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C ... +100 °C | Process pressure: –1 bar ... 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Blueto
STL70-2HA8
Safe motor feedback systems | STL70-S | STL70-2HA8 | Communication interface: HIPERFACE® | Resolution: 0.448 µm | Safety system: yes | Connection type: Male connector, M12, 8-pin, universal | System part: Read head | Technology: Magnet-coded
WL2S-2N3230
Photoelectric sensors | W2 | WL2S-2N3230 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -

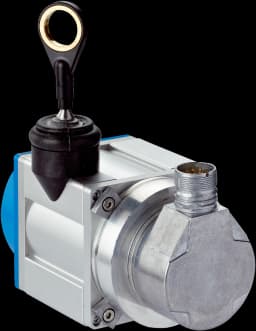

PRF08-A1AM0340
Wire draw encoders | HighLine | PRF08-A1AM0340 | Measuring range: 0 m ... 3 m | Communication interface: Incremental / TTL / RS-422 | Supply voltage: 4.5 V ... 5.5 V | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: DFS60, DFS60B-S1MA10000, 1056866 | Mounted mechanic: MRA-F080-103D2, 6030125 | Programmable/configurable: yes
AFM60A-TDPM262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TDPM262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: SSI, programmable | Connection type: Cable, 8-wire, universal, 5 m | Programming interface: Over handheld programming tool, over SOPAS
DBS60E-TCEQC1024
Incremental encoders | DBS60 | DBS60E-TCEQC1024 | Mechanical design: Through hollow shaft 3/8″ (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: Axial and radial register pin mounting, for 4 mm register pin
DBS60E-B5AQ00100
Incremental encoders | DBS60 | DBS60E-B5AQ00100 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
ICI890-44110
Reflectors and optics | Illuminations | ICI890-44110 | Description: Illumination for ICD89x, length 900 mm | Light source: Visible blue light 449 nm | LED class: Risk group 2 | Connection types: M12 | Ambient operating temperature: 0 °C ... +50 °C
LUT1B-12205
Luminescence sensors | LUT1 | LUT1B-12205 | Light source: LED | Type of light: Visible blue light | Communication interface: - | Sensing distance: 70 mm ... 80 mm | Housing design: Middle | Switching output: PNP | Switching mode: Light switching | Light emission: Long side | Light spot size: 10 mm x 70 mm | Connection type Detail: Plug, M12, 5-pin
ARS60-FAM00256
Absolute encoders | ARS60 | ARS60-FAM00256 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 256 (8 bit) | Mechanical design: Blind hollow shaft 15 mm (Front clamp) | Communication interface: Parallel data world | Connection type: Cable, 22-wire, radial, 5 m
DBS60E-RJEK01024
Incremental encoders | DBS60 | DBS60E-RJEK01024 | Mechanical design: Through hollow shaft 5/8″ (rear clamping) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DBS60E-RDFA00100
Incremental encoders | DBS60 | DBS60E-RDFA00100 | Mechanical design: Through hollow shaft 10 mm (rear clamping) | Communication interface: 4.5 V ... 30 V, TTL, HTL, HTL | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 100 | Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm
DLS40E-S3AV00360
Incremental encoders | DLS40 | DLS40E-S3AV00360 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 2 m | Pulses per revolution: 360
DFS60B-S4EM05000
Incremental encoders | DFS60 | DFS60B-S4EM05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 5,000

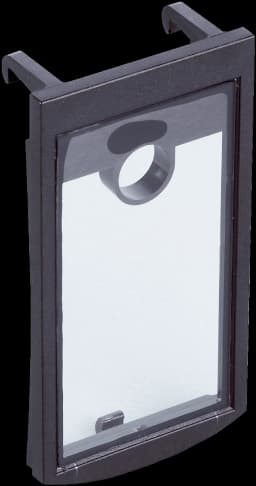

LPC-DX50
Device protection and care | Front screens and front screen protection | LPC-DX50 | Description: Front screen protection set (protects sensors from damage by flying sparks and welding beads)
SFM60-HRKB0K02
Motor feedback systems | SFS/SFM60 | SFM60-HRKB0K02 | Communication interface: HIPERFACE® | Model: Absolute Multiturn | Type: Stand-alone | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Blind hollow shaft | Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m | Technology: Optical | Operating temperature range: –40 °C ... +115 °C | Items supplied: M3 mounting screws for stator coupling not included with delivery.
